Description
John Deere 7R 210
Specifications
Manufacturer
John Deere
Model
7R 210
Year
2023
Category
Tractors
Subcategory
Tractor
Rear hitch category (SAE designation)
Category 3/3N with Quik-Coupler
Base machine weight
e23, TLS™, 18.4R46: 10,000 kg,22,000 lb
Description
John Deere PowerTech™ PVS (B20 Diesel Compatible) 6.8L
Type
John Deere e23™ 42 km/h26 mph
Type one
Closed-center, pressure/flow compensated system with load sensing
Pump rated output
63 cc: 162 L/min43 gpm
Available flow at a single rear SCV
132 L/min35 gpm
Available flow at front SCVs
126 L/min33 gpm
Number of rear selective control valves (SCVs)
four SCVs
Number of front selective control valves (SCVs)
One with front hitch
Hitch category (SAE designation)
Category 3/3N with Quik-Coupler
Maximum lift capacity behind lift points
(Category 3): 5443 kg,12,000 lb (Category 3 with hook ends): 5443 kg,
Sensing type
Electrohydraulic
Drawbar category
Category 3
Maximum vertical load
Category 3: 1,837 kg,4,050 lb
Type three
Independent 44.45 mm (1.75 in.) 20-spline, 1,000 rpm
PTO actuation
Electric switch with adjustable modulation
Category
Category 3N, ground engaging
Standard lift capacity
5,200 kg,11,464 lb
Front power take-off (PTO)
AvailableOptional: 44.45 mm (1.75 in.), 20 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)35 mm (1.375 in.) 21 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)35 mm (1.375 in.) 6 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)**
Type four
Rack-and-pinion or flange axles
Final drive type
Inboard planetary three pinion
Rear differential lock
Full-locking electrohydraulic
Type five
1150 Series MFWD: tread range 1524 to 2235 mm60 to 88 in.
Front axle differential lock
1150 Series MFWD: Limited slipTLS: Limited slipTLS with front brakes: Full-locking electrohydraulic (actuated at same time as rear diff lock)
Front
RCI Group 42/43
Rear
RCI Group 47/48
Type six
Hydrostatic power

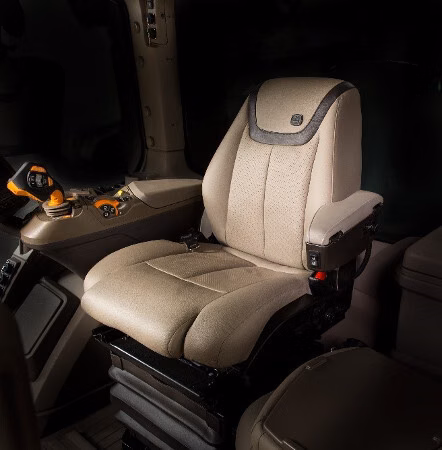

Seat
Degree of seat swivel, left hand25 degreeDegree of seat swivel, right hand40 degreeStandard: air suspensionOptional: ActiveSeat™ II
Display
4100 Generation 4 CommandCenter™: 17.8 cm7 in.
Radio
AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume
3.24 m3114 cu ft
Cab glass area
6.56 m270.61 sq ft
Wheelbase
2,925 mm115.2 in.
Base machine weight one
e23, TLS, 18.4R46: 10,000 kg,23,000 lb
Maximum ballast level
SAE PTO hp: 65.8 kg,145 lb
Crankcase oil volume
26 L6.9 U.S. gal.
Fuel tank
e23™: 463 L122 U.S. gal.IVT: 513 L135 U.S. gal.
Diesel exhaust fluid (DEF) tank
26.2 L6.9 U.S. gal.
Cooling system
39.5 L10.4 U.S. gal.
Interval for engine oil change
500 hours
Interval for engine coolant change
6,000 hours
Loader
H480
Lift capacity at full height
2411 kg,5315 lb
Guidance
Integrated AutoTrac™

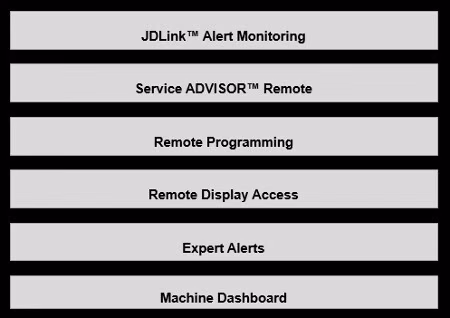

Telematic
JDLink™
Remote diagnostics
ServiceADVISOR™ Remote: available with JDLink hardware and activationsRemote Display Access: available with JDLink hardware and activations
Engine description
John Deere PowerTech™ PVS (B20 Diesel Compatible) 6.8L
Engine displacement
6.8 L415 cu in.
Rated engine power
ECE-R120: 154 kW210 hp
Maximum engine power
ECE-R120: 170 kW231 hp
Rated PTO power (hp SAE)
126 kW170 hp
Engine type
Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head
Engine family
JJDXL06.8309
Rated speed
2100 rpm
Aspiration
Single turbocharger, variable geometry turbo
Emission level
Final Tier 4
After treatment type
Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)
Displacement
6.8 L415 cu in.
Rated power
ECE-R120: 154 kW210 hp
Power boost
22 kW30 hp
Engine peak torque
At 1600 rpm: 983 Nm725 lb-ft
PTO torque rise
40 percent
Engine rpm (at rated PTO speeds)
540/1000 PTO rpm at 1950 engine rpm540E/1000E PTO rpm at 1750 engine rpm
PTO speed
1,000 PTO rpm at 1940 engine rpm
Engine
210 hp
Transmission type
John Deere e23™ 42 km/h26 mph
Turning radius with brakes
380/85R34 group 42 tires at 152.4-cm (60-in.) spacing 1300: 7 m23 ft600/70R30 group 43 tires at 188.2-cm (74.1-in.) spacing TLS: 6.7 m22 ft
Overall length
5520 mm217 in.
Drawbar clearance
Group 47 rear tires: 360 mm14.2 in.Group 48 rear tires: 415 mm16.3 in.
Maximum lift height
4704 mm185.2 in.
