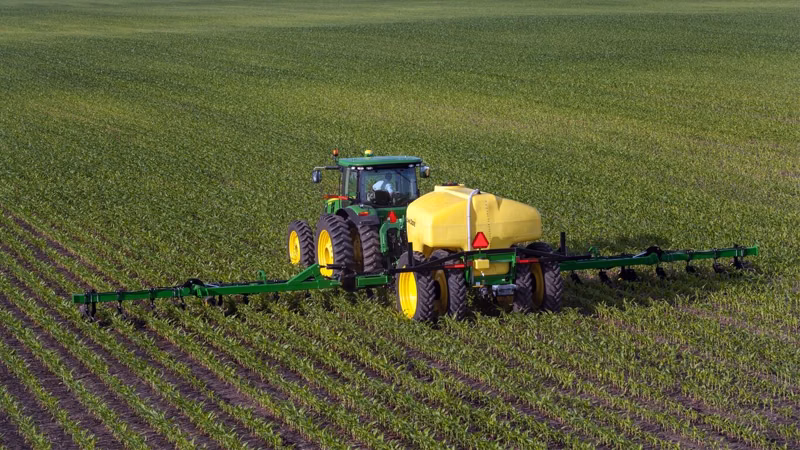

2023 John Deere 2510L Vertical-Fold – 12.2 m (40 ft)
Agricultural EquipmentNutrient Applicator
Description
John Deere 2510L Vertical-Fold – 12.2 m (40 ft)
Specifications
Manufacturer
John Deere
Model
2510L Vertical-Fold – 12.2 m (40 ft)
Year
2023
Category
Agricultural Equipment
Subcategory
Nutrient Applicator
Toolbar frame
17.8-cm x 17.8-cm (7-in X 7-in) single bar tube
Operating frame clearance
61 cm (24 in)
Tank sizes
3974.7 L (1050 gal) 5110.3 L (1350 gal) 6813.7 L (1800 gal)
Gauge wheels
Two
Tank fill
3974.7 L (1050 gal) and 5110.3 L (1350 gal): 5.2-cm (2-in) bottom fill 6813.7 L (1800 gal): 7.6-cm (3-in) bottom fill
Coulters
Heavy-duty 50.8-cm (20-in) coulters
Fertilizer delivery
Knives or injectors
Working depth
Up to 10.16 cm (4 in)
Engine power requirement
119.3-141.7 kW (160 – 190 hp)
Rate Controller
GreenStar™ Rate Controller
Number of section shutoffs
Two or four
Operating speed
8-12.9 km/h (5–8 mph)
Transport width
4.27 m (14 ft)
Transport height
4.06 m (13 ft, 4 in)
Selective control valves (SCV) required
Four
