Description

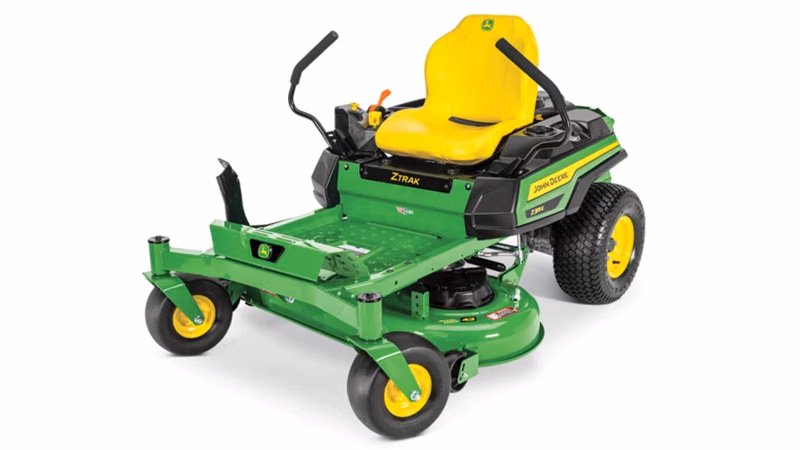

John Deere Z315E
Specifications
Manufacturer
John Deere
Model
Z315E
Year
2023
Category
Mowers
Subcategory
Zero Turn Mowers
Dual hydros
Hydro-Gear EZT-C with 1-in. (2.5-cm) axles
Forward speed
0-7 mph 0-11.3 km/h
Reverse speed
0-3.5 mph 0-5.6 km/h
Speed and direction control
Twin levers
Control adjustment
3 height, 11 positions
Chassis Frame
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint
E-coat/powder
Front caster tires
11x6-5
Front caster bearings
Sealed ball bearings
Drive tires
18x8.5-8

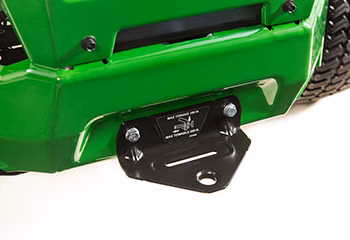

Maximum towing capacity
250 lb 113 kg
Seat suspension
Two springs
Lift system Type
Foot lift

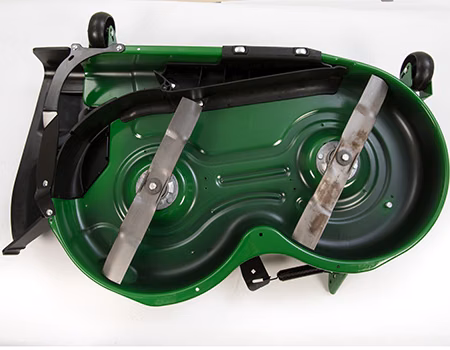

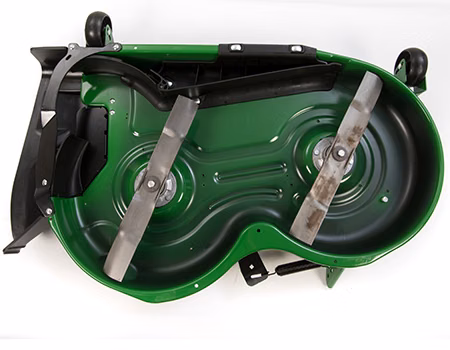

Mower deck Type
Side discharge
Mower drive system
V-belt
PTO Type
Electric, 105 lb-ft 142 Nm
Drive
V-belt
Weight
554 lb 252 kg
Slope operating limit
13 degrees; 10 degrees with Material Collection System
Seat back height
High back with optional armrests, 18 in 46 cm
Fore-aft adjustment
2.9 in 7 cm
Mower cut height
1.25-4.5 in 3-11 cm
Cut height increments
0.25 in 0.64 cm
Width of cut
Accel Deep™ mower deck, 42 in 107 cm
Mower deck material
12 gauge 0.105 in 2.7 mm
Wheelbase
49.4 in 1255 mm
Overall length
75.4 in 1915 mm
Width without mower
43.3 in 1100 mm
Width with mower
50.4 in 1280 mm
Width with mower (deflector raised for storage)
46.5 in 1180 mm
Height
41.6 in 1056 mm
Power
20 hp 14.9 kW
Model number
40 EXi
Displacement
40 cu in 656 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type
Overhead valve
Battery
12 V 300 CCA
Choke/speed control
Single lever
Cooling method
Air
Fuel tank capacity
3.0 U.S. gal 11.4 L
Fuel gauge
Translucent tank
