Description

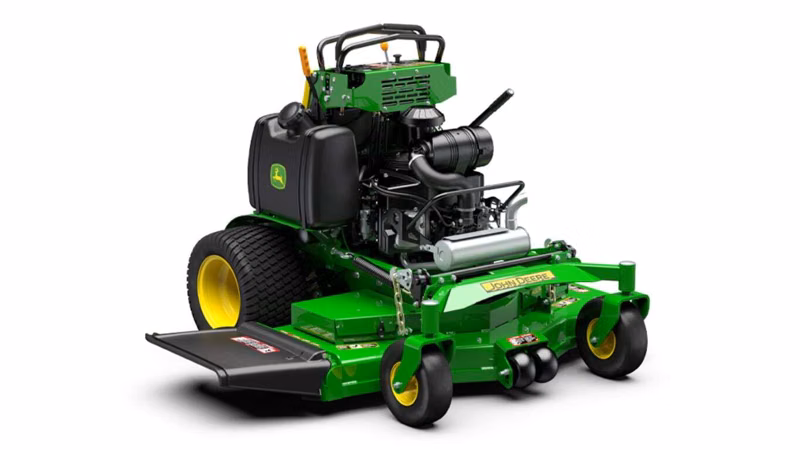

John Deere 652M
Specifications
Manufacturer
John Deere
Model
652M
Year
2023
Category
Mowers
Subcategory
Commercial Mowers
Mower decks Size
52 in 132 cm
Cutting width
52 in 132 cm
Deck thickness
7 gauge 0.18 in 4.6 mm
Height-of-cut range
Increments 0.25 in 0.64 cm 1.5-5 in 3.8-12.7 cm
Blades Length
18 in 45.7 cm
Thickness
0.203 in 5.16 mm
Length
59.75 in 151.8 cm
Width
Deflector down, 66 in 167.6 cm
Height
46 in 117 cm
Manufacturer/Model
FX691V
Power
Gross at 3,600 rpm: 22 hp 16.4 kW
Displacement
44.3 cu in 726 cc
Cylinders
Two, V-twin
Crankcase capacity
With filter, 2.2 qt 2.1 L
Oil filter
Full flow, replaceable
Lubrication
Full pressure
Cooling
Forced air
Air cleaner
Dry type, dual stage
Fuel type
Gasoline
Fuel tank capacity
5.5 U.S. gal 20.8 L
Charge system
At 3,600 rpm, 15 amp
Battery voltage
12 V
Cold cranking amp
300 amp
Hour meter
Digital
Transmission
Hydrostatic
Hydraulic pumps
Hydro-Gear®, 0.61 cu in 10 cc
Wheel motors
Hydro-Gear HGM-P, 12 cu in 196 cc
Travel speed range
0-8.2 mph 0-13.2 km/h
Travel speed Forward
Infinite: 0-8.2 mph Infinite, 0-13.2 km/h
Travel speed Reverse
Infinite, 0-3.5 mph Infinite, 0-5.6 km/h
Speed and direction control
Twin hand-controlled levers
Hydraulic capacity
With filter, dry, 5 qt 4.7 L
Filter
Spin-on replaceable
Drive wheels
18x10.5-10 Turf Master
Load rating
4 PR
Dynamic braking
Dual hand-controlled levers
Park brake
Tire engagement
Park brake actuation
Hand lever
PTO Type
Electro-magnetic with brake, 125 lb-ft 169 Nm
Drive
Dual B-section V-belt with Kevlar® cord
Deck construction
Fabricated steel, floating mount system
Discharge
Side
Blade tip speed
18,900 fpm 5,761 m/min
Blades Number
Three
Caster wheel type
No-flat semi-pneumatic with sealed bearings
Caster wheels
11x4.5-6
Front anti-scalp rollers
Single left, double-captured center
Weight
With full fuel and oil, 828 lb 375 kg
