Description
John Deere Z735M
Specifications
Manufacturer
John Deere
Model
Z735M
Year
2023
Category
Mowers
Subcategory
Zero Turn Mowers

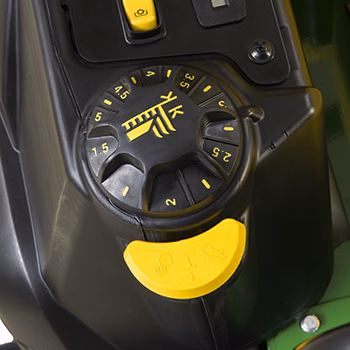

Mower cut height
1.5-5 in 3.8-12.7 cm
Cut height increments
0.25 in 0.64 cm
Width of cut
48 in 122 cm 54 in 137 cm 60 in 152 cm
Mower deck material
9 gauge 0.150 in 3.8 mm
Wheelbase
49.9 in 126.7 cm
Overall length
82 in 208.4 cm
Width without mower
48.6 in 123.5 cm
Width with mower 48 HC
62.3 in 158.2 cm
Width with mower 54 HC
68.2 in 173.2 cm
Width with mower 60 HC
73.3 in 186.1 cm
Width with mower (deflector raised for storage) 48 HC
53.2 in 135.1 cm
Width with mower (deflector raised for storage) 54 HC
59.4 in 151 cm
Width with mower (deflector raised for storage) 60 HC
64.8 in 164.5 cm
Height ROPS up
71.1 in 182.2 cm
Height ROPS down
49.7 in 126.2 cm

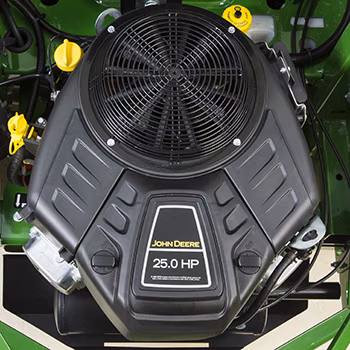

Power
25 hp 18.6 kW
Model number
HTR810
Displacement
49.4 cu in 810 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type
Overhead valve
Battery
12 V 340 CCA
Choke/speed control
Separate control levers
Cooling method
Air
Fuel tank capacity
8 U.S. gal 30.2 L
Fuel gauge
Fuel level sight line

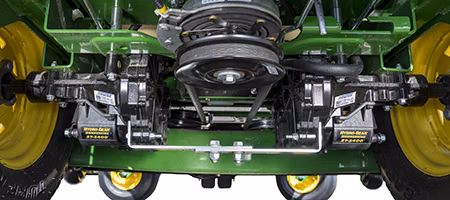

Dual hydros
Hydro-gear ZT3200 with 1-in. (2.54-cm) axles
Forward speed
0-9.5 mph 0-15.3 km/h
Reverse speed
0-4 mph 0-6.4 km/h
Speed and direction control
Twin premium levers
Control adjustment
2-height/18 positions
Frame
Heavy-duty frame tubing
Primer/paint
E-coat/powder

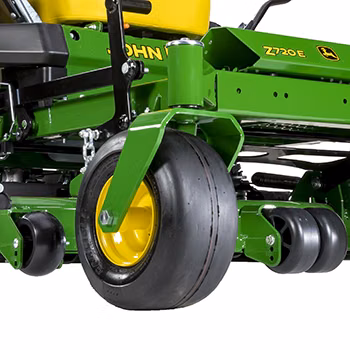

Front caster tires
13x6.5-6
Front caster bearings
Sealed ball bearings
Drive tires
23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks)
Seat back height
High back with adjustable armrests, 22.5 in 57.1 cm
Fore-aft adjustment
While seated, +/- 2 in 5.08 cm
Seat suspension
Two four-position springs with ComfortGlide™ fore/aft suspension
Lift system Type
Spring assisted foot lift
Mower deck Type
High-capacity (HC) PRO side discharge
Mower drive system
V-belt
PTO Type
Electric, 125 lb-ft 169 Nm
Drive
V-belt
Weight With mower and fuel, 48 HC
950 lb 431 kg
Weight With mower and fuel, 54 HC
965 lb 437 kg
Weight With mower and fuel, 60 HC
990 lb 449 kg
Slope operating limit
15 degrees; 10 degrees with MCS
