Description
John Deere Z545R, 48-in Deck
Specifications
Manufacturer
John Deere
Model
Z545R, 48-in Deck
Year
2023
Category
Mowers
Subcategory
Zero Turn Mowers

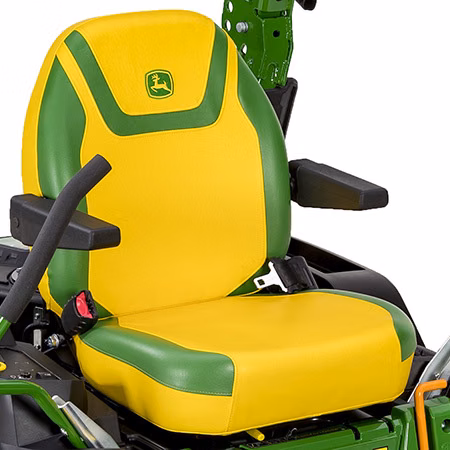

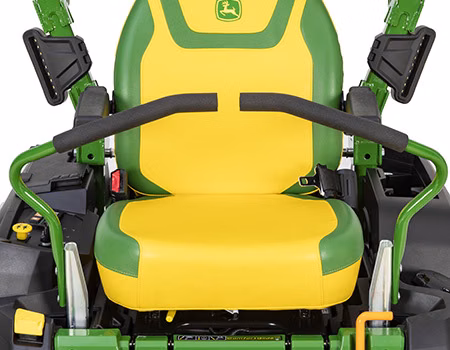

Seat back height
High back with armrests and ComfortGlide, 22.5 in 57.1 cm
Fore-aft adjustment
While seated, 3 in 7.6 cm
Mower cut height
1-4 in 2.5-10.2 cm
Cut height increments
0.25 in 0.64 cm
Width of cut High capacity mower deck
48 in 122 cm
Width of cut High capacity mower deck One
54 in 137 cm
Width of cut High capacity mower deck Two
60 in 152 cm
Mower deck material
9 gauge 0.150 in 3.8 mm
Wheelbase
49.2 in 1250 mm
Overall length
81.9 in 2080 mm
Width without mower
48.7 in 1237 mm
Width with mower 48 HC
62.4 in 1585 mm
Width with mower 54 HC
68.3 in 1735 mm
Width with mower 60 HC
73.5 in 1867 mm
Width with mower (deflector raised for storage) 48 HC
53.6 in 1361 mm
Width with mower (deflector raised for storage) 54 HC
59.6 in 1514 mm
Width with mower (deflector raised for storage) 60 HC
65.6 in 1667 mm
Height ROPS in folded position
49.2 in 1250 mm
Height ROPS in raised position
71.7 in 1821 mm

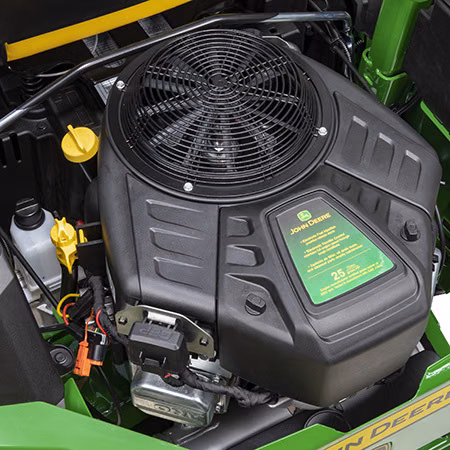

Power
25 hp 18.6 kW
Model number
HTR EFI/ETC
Displacement
44.2 cu in 724 cc
Cylinders
V-twin

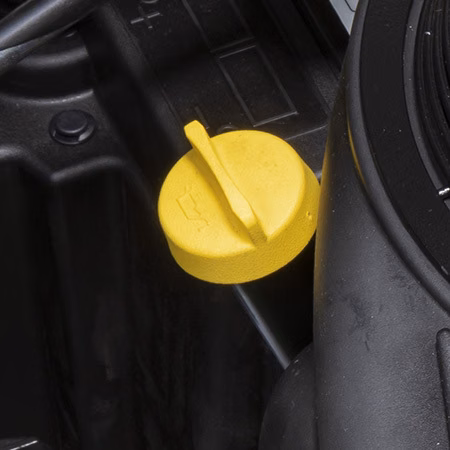

Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type
Overhead valve
Battery
12 V 300 CCA
Choke/speed control
Separate control levers
Cooling method
Air
Fuel tank capacity
4.5 U.S. gal 17 L
Fuel gauge
Electric gauge and fuel level sight line

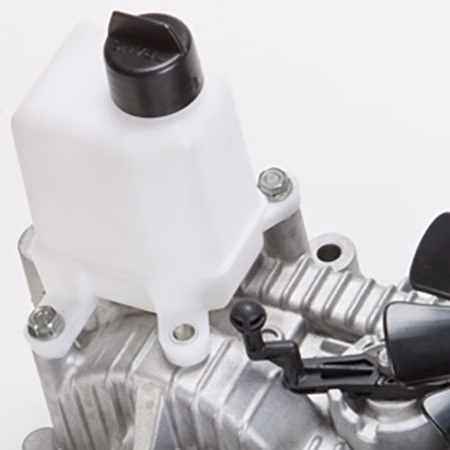

Dual hydros
Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
Forward speed
0-9 mph 0-14.5 km/h
Reverse speed
0-4.5 mph 0-7.2 km/h
Speed and direction control
Twin premium levers
Control adjustment
2-height/9-fore-aft, 18 positions
Frame
Heavy-duty frame tubing
Primer/paint
E-coat/powder
Front caster tires
13x6.5-6

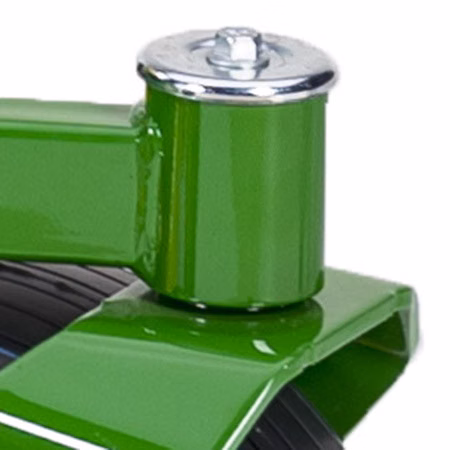

Front caster bearings
Sealed ball bearings

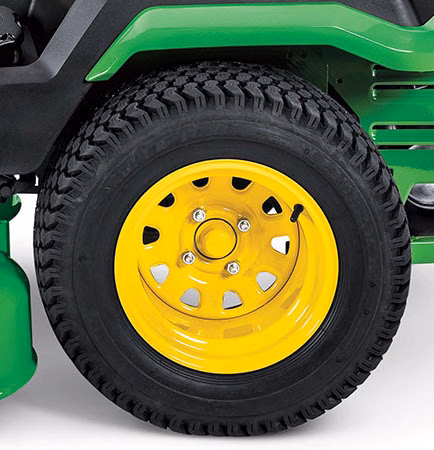

Drive tires
23x10.5-12

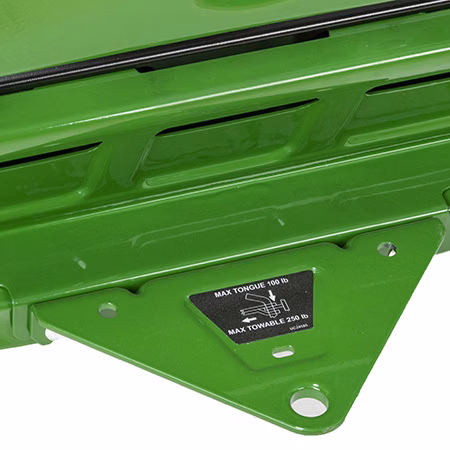

Maximum towing capacity
250 lb 113 kg

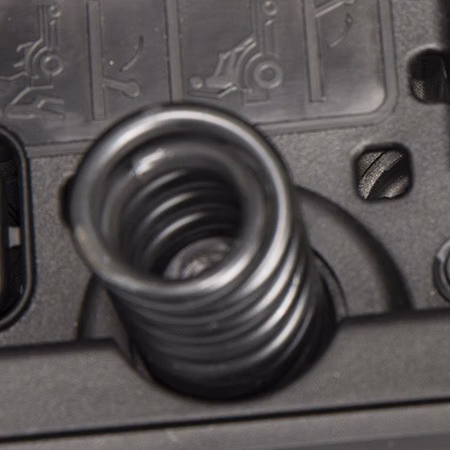

Seat suspension
Two springs and ComfortGlide

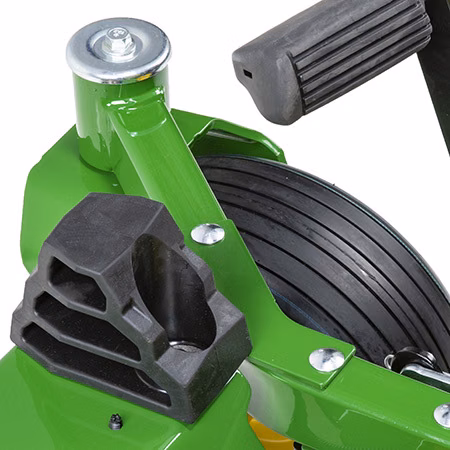

Lift system Type
Foot lift
Mower deck Type
High-capacity side discharge
Mower drive system
V-belt
PTO Type
Electric, 125 lb-ft 169.5 Nm
Drive
V-belt
Weight With mower and fuel, 48HC
826 lb 375 kg
Weight With mower and fuel, 54HC
832 lb 378 kg
Weight With mower and fuel, 60HC
840 lb 382 kg
Slope operating limit
15 degrees, 10 degrees with an MCS
