Description

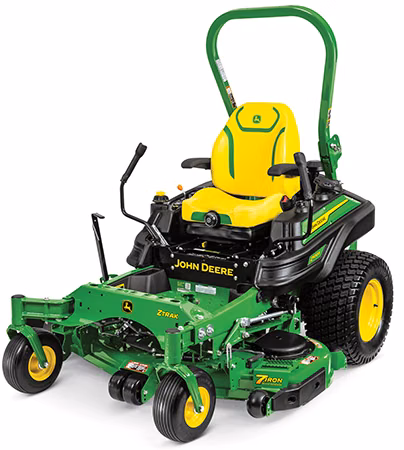

John Deere Z970R
Specifications
Manufacturer
John Deere
Model
Z970R
Year
2023
Category
Mowers
Subcategory
Zero-Turn Mower
Mower decks Size
60-in. (152-cm) 7Iron™ PRO side-discharge<br>72-in. (183-cm) 7Iron™ PRO side-discharge<br>72-in. (183-cm) FastBack™ PRO rear-discharge
Deck construction 7-Iron™ PRO
7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
Deck construction FastBack™ PRO
7-gauge, 0.179-in. (4.6-mm) fabricated steel
Height-of-cut range
Increments 0.25 in 0.64 cm 1-5.5 in 2.54-14 cm
Cutting width
60, 72 in 152, 183 cm
Thickness
0.25 in 0.64 cm
Length
84 in 213 cm
Width With chute down
74, 86 in 188, 218 cm
Width Rear discharge
75.8 in 192.5 cm
Height With ROPS up
73 in 185 cm
Height With ROPS down
47 in 119 cm
Manufacturer/Model
FX1000V
Power
Gross at 3,600 rpm 35 hp 26.1 kW
Displacement
61 cu in 999 cc
Cylinders
Two
Crankcase capacity
With filter, 2 U.S. qt 1.9 L
Oil filter
Full flow, replaceable
Lubrication
Full pressure
Cooling
Air
Air cleaner
Pre-cleaner
Fuel type
Gasoline
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal/hr 4.2-7.2 L/hr
Fuel tank capacity
11.5 U.S. gal 43.5 L
Charge system
20 amp
Battery voltage
12 V
Cold cranking amp
300 amp
Operator presence starting system
Brake-N-Go (foot)
Transmission
Hydrostatic
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
Travel speed range
0-12 mph 0-19.3 km/h
Travel speed Forward
0-12 mph 0-19.3 km/h
Travel speed Reverse
0-4.5 mph 0-7.2 km/h
Speed and direction control
Twin levers
Hydraulic capacity
5.9 U.S. qt 5.6 L
Filter
Internal, replaceable
Drive wheels
24x12-12
Load rating
4 PR
Dynamic braking
Twin levers
Park brake
Internal wet disk integrated in the transmission
Park brake actuation
Foot brake
PTO Type
Electro-magnetic, 225 lb-ft 305 Nm
Drive
V-belt
Blades Length
Varies by deck size
Blade tip speed 7Iron PRO
Approximately 18,500 fpm
Blade tip speed 72-in. (183-cm) FastBack
Approximately 18,000 fpm
Blades Number
Three
Caster wheel type
Flat free
Caster wheels
13x6.5-6
Front anti-scalp rollers
RH, center, LH
Weight
1,326 to 1,445 lb 601 to 655 kg
Slope operating limit
20 degrees (10 degrees with material collection system installed)
