Description
John Deere W48M
Specifications
Manufacturer
John Deere
Model
W48M
Year
2023
Category
Mowers
Subcategory
Commercial Mowers
Fuel type
Gasoline

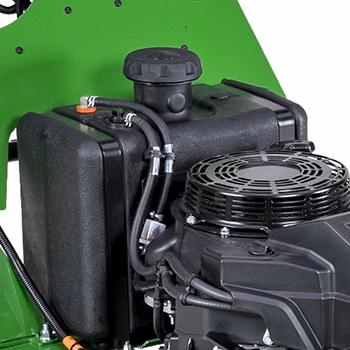

Fuel tank capacity
5.4 U.S. gal 20.4 L
Fuel pump
Vacuum-operated diaphragm
Fuel delivery system
Carburetor
Fuel pickup
Top draw
Ignition
Electronic spark
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Transmission
Two Hydro-Gear ZT-2800 unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock

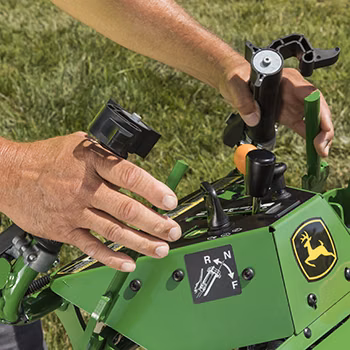

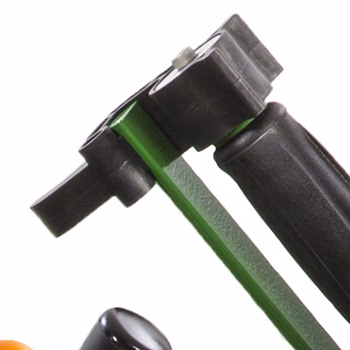

Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Drive wheels
18x8.5-8
Caster wheels
9x3.5-4 semi-pneumatic
Forward speeds
Infinite
Reverse speeds
Infinite
Speed range Forward
0-6.5 mph 0-10.5 km/h
Speed range Reverse
0-3 mph 0-4.8 km/h
Brakes Type
Dynamic braking with hand controls, hand lever to set parking brake
Weight
645 lb 293 kg
Mower Decks Size Blades
Three high-lift
Mower Decks Size Blade drive
V-Belt
Mower Decks Size Blade tip speed
Approximately 18,000 fpm 5,486 m/min
Height
44.8 in 114 cm
Length with deck
74 in 188 cm
Width Deflector down
62 in 157 cm
Width Deflector up for storage
50 in 127 cm
Mower Decks Size Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Mower Decks Size Length
16.5 in 41.9 cm
Mower Decks Size Thickness
0.25 in 0.64 cm
Mower Decks Size Cutting height
1.5-4.5 in 3.8-11.4 cm 48 in 122 cm

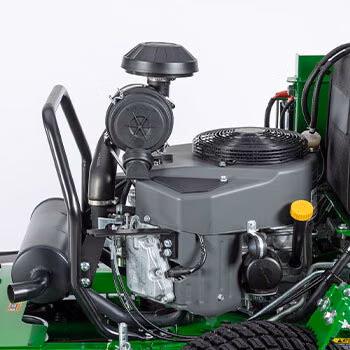

Manufacturer/model
FS481V
Power
At 3600 rpm 14.5 hp* 10.8 kW
Displacement
36.8 cu in 603 cc
Cylinders
V-twin
Operating speed
3,600 rpm
Ignition/Starter
Electronic/recoil start
Valving
Overhead valves
Lubrication
Full pressure
Governor
Flyweight all speed governor
Hour meter
Standard, digital
Cooling system
Air cooled
Air cleaner
Paper element with foam precleaner
Muffler
Low tone
