Description

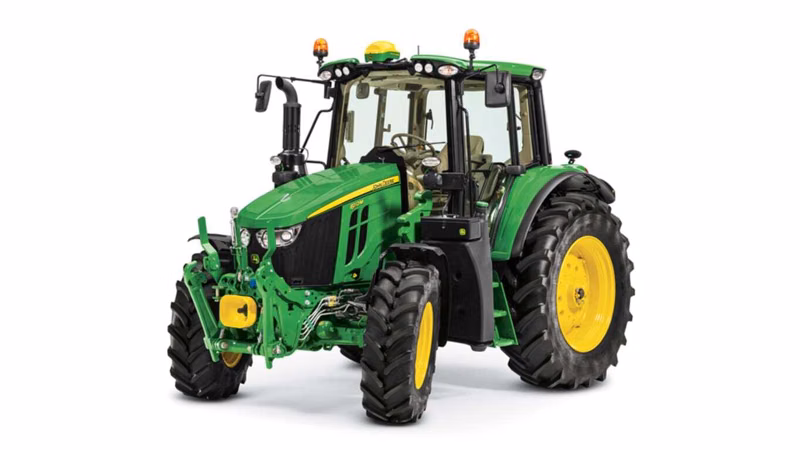

John Deere 6110M
Specifications
Manufacturer
John Deere
Model
6110M
Year
2023
Category
Tractors
Subcategory
Utility Tractors
Rated power
81 kW 110 hp w/ IPM: 96 kW 130 hp
Rated PTO power (hp SAE)
62 kW 84 hp
Maximum PTO power
At 1000 PTO rpm with IPM: 80 kW 109 hp
Power boost
10 percent
Maximum engine power
90 kW 122 hp w/ IPM: 98 kW 134 hp
Engine peak torque
At 1600 U/min: 515 Nm 379.84 lb-ft
PTO torque rise
40 percent
Reverser
Electronic left-hand reverser
Number of mid selective control valves (SCVs)
Up to three
Joystick SCV control
Mechanical/electrical
Hitch category (SAE designation)
2/3N
Sensing type
Electronic lower link
Rear axle differential lock
Electrohydraulically with oil-cooled clutch
Drawbar category
Category 2
Maximum vertical load Road/field use (250-mm extended)
2000 kg 4409.2 lb
Maximum vertical load Field use (350-mm extended)
1400 kg 3086.5 lb
Maximum vertical load Field use (400-mm extended)
1200 kg 2645.5 lb
Engine rpm (at rated PTO speeds) 540
1977 rpm
Engine rpm (at rated PTO speeds) 1000
1972 rpm
PTO actuation
In-cab switch and external fender-mounted remote control
Front hitch Category
3N
Electric power
Seven-pin electrical socket
Standard lift capacity
4400 kg 9700.3 lb
Front power take-off (PTO)
Electrohydraulically engaged with oil-cooled, multi-disc design
PTO speed
1000 PTO: 1969 rpm
Final drive type
Three planetary gear reduction
Rear differential lock
Electrohydraulically with oil-cooled clutch
Front axle differential lock
Self-locking differential
Tires Rear
600/65R38 (175)
Steering Type
Dynamic load sensing, hydrostatic, flow metering
Rollover protective structure, OOS
Gearshift location - console/floor Console
Inner cab volume
2.73 m<sup>3</sup> 96.41 cu ft
dB(A) rating
70 dBA
Cab glass area
Without roof hatch or panoramic roof: 4.85 m<sup>2</sup> 52.2 sq ft
Approximate shipping weight, Open;Cab
Cab: 5680 kg 12,522 lb
Base machine weight Front axle
2180 kg 4806 lb
Base machine weight Rear axle
3500 kg 7716 lb 5680 kg 12,522 lb
Maximum permissible weight
9500 kg 20,944 lb
Crankcase oil volume
17 L 4.5 U.S. gal
Fuel tank
175 L 46.2 U.S. gal
Diesel exhaust fluid (DEF) tank
19 L 5.0 U.S. gal
Cooling system
20 L 5.3 U.S. gal
Transmission-hydraulic system
PowrQuad Plus/AutoQuad Plus: 60 L 15.9 U.S. gal
Interval for engine oil change
500 hours
Interval for hydraulic/transmission oil change
1500 hours
Interval for engine coolant change
6000 hours
Loader
600R
Lift capacity at full height Non-self-leveling (NSL)
2347 kg 5174.24 lb
Lift capacity at full height Mechanical self-leveling (MSL)
1898 kg 4184.37 lb
Wheelbase
2400 mm 94.5 in
Overall width Minimum
2000 mm (420/85R30 (148)) 78.74 in
Overall width Maximum
2550 mm (600/65R38 (175)) 100.39 in
Overall length
4377 mm 172.3 in
Overall height Minimum
2715/2763 mm (420/85R30 (148)) 106.89/108.78 in
Overall height Maximum
2850/2900 mm (600/65R38 (175)) 112.20/114.17 in
Front axle center Ground clearance
364 mm 14.3 in
Front axle center Maximum
559 mm 22 in
Maximum lift height
NSL/MSL: 3.9 m 153.56 in
Description
John Deere PowerTech EWL
Engine type
4045HL290
Engine family
JDXL04.5317
Rated speed
2100 rpm
Aspiration
Single turbocharger with wastegate
Emission level
Final Tier 4
After treatment type
Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF)
Displacement
4.5 L 275 cu in
