Description
John Deere N540C
Specifications
Manufacturer
John Deere
Year
2024
Model
N540C
Category
Agricultural Equipment
Subcategory
Seeding Equipment
Weight before ballast Dual rank
7.5-in (19.1 cm)
Weight before ballast Dual rank one
10-in (25.4 cm)
Weight before ballast spacing
≤ 29,800 lb (13,500 kg)
Weight before ballast spacing one
≤ 26,400 lb (12,000 kg)
Weight before ballast Single rank
15-in (38.1 cm)
Weight before ballast spacing two
≤ 18,500 lb (8400 kg)
Number of ranks
Single; Dual
Style
No-till
Rank lock-up
Individual
Down pressure Style
Hydraulic rank
Depth control Description
Gauge wheel (smooth sided or spoked)
In-Furrow press wheel Material
Rubber
In-Furrow press wheel Packing force
Adjustable down-pressure from 2.3 to 20.4 kg 5 to 45 lb
Furrow closing Description
Cast wheel at 15-degree vertical angle Serrated closing wheel at 15-degree vertical angle
Furrow closing Size Cast wheel
2.54x30.5 cm 1x12 in
Furrow closing Down force
Down-pressure from 11.8-19.5 kg 26-43 lb
Furrow closing
Serrated or smooth cast closing wheel
Description
Central volumetric metering
Crops
Barley, oats, rice, sorghum, soybean, wheat
Max Volumetric Seeding Rates - Barley
≤ 1,000,000 seeds per acre (2,470,000 seeds per hectare)
Max Volumetric Seeding Rates - Oats
≤ 2,500,000 seeds per acre (6,180,000 seeds per hectare)
Max Volumetric Seeding Rates - Rice
≤ 1,700,000 seeds per acre (4,200,000 seeds per hectare)
Max Volumetric Seeding Rates - Milo/Sorghum
≤ 100,000 seeds per acre (247,000 seeds per hectare)
Max Volumetric Seeding Rates - Soybean
≤ 250,000 seeds per acre (618,000 seeds per hectare)
Max Volumetric Seeding Rates - Wheat
≤ 2,970,000 seeds per acre (7,300,000 seeds per hectare)
Metering Drive Type
Electric
Tank Description
Central, non-pressurized polyethylene tank
Total Tank Capacity
4200 L (120 bu)
Type
Pneumatic
Blower
45 cm (17.7 in) diameter impeller
Blower drive type
Hydraulic
Tractor drawbar power required, 7.5-in (19.1 cm) models
≥ 278 kW (373 hp)
Tractor drawbar power required, 10-in (25.4 c+B55m) models one
≥ 225 kW (301 hp)
Tractor drawbar power required, 15-in (38.1 cm) models two
≥ 166 kW (222 hp)
Minimum number of SCV's
Three - one fold, one opener raise/lower, one seed distribution blower
Hydraulic Power Beyond
Required for in-cab opener downforce and electric power generation
Minimum hydraulic capacity
58 gpm (220 L/min) at 2900 psi (200 bar)
Minimum electrical capacity
48 A at 12 VDC

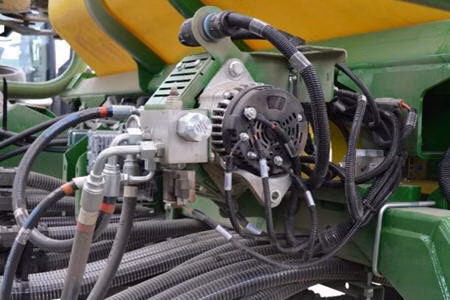

Tool-mounted alternator
56 VDC
Implement harness connection, 56 VDC
Power take-off (PTO) power gen
Implement harness connection, 12 VDC one
7-pin SAE, 9-pin ISO
Operator interface Description
QT / Gen 4
Operator interface Language
English, Spanish, English/Spanish, English/French
