Description

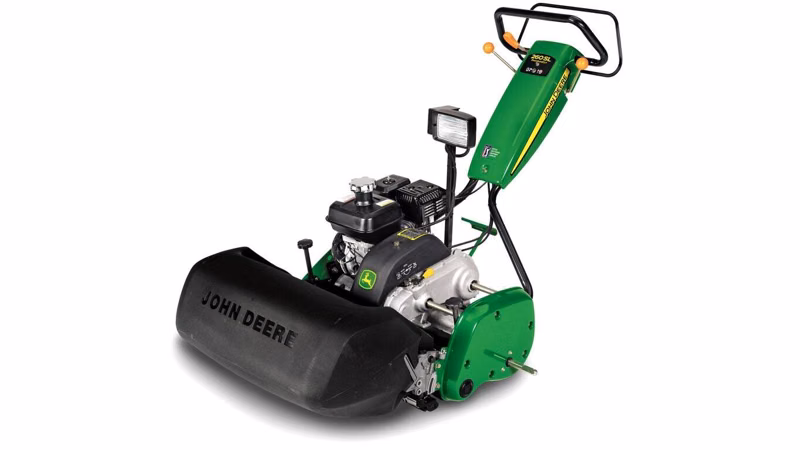

John Deere 260 SL PrecisionCut™
Specifications
Manufacturer
John Deere
Model
260 SL PrecisionCut™
Year
2024
Category
Mowers
Subcategory
Walk Greens Mowers
Cutting width
66 cm 26 in
Frequency of clip standard
4.62 mm 0.182 in
Length (w/tires installed)
940 mm 37 in
Width (w/tires installed)
105 cm 41.3 in
Height (w/tires installed)
119 cm 47 in
Roller (rear)
Aluminum, diameter: 190 mm 7.5 in
Brush
Interlocked with reel, rotation in reverse direction; nylon diameter: 60 mm 2.375 in
Vertical cutter blades
Specially hardened carbon tool steel; star shaped; 88 blades diameter: 60 mm 2.375 in
Adjustable brush or cutter height
Brush even with height-of-cut; GTC below height-of-cut maximum: 0.8 mm 0.0313 in
Diameter, in (mm)
127 mm 5 in
Roller (front) (grooved or smooth)
Machined steel, diameter: 50 mm 2 in for cutting height adjustment
Type
Air-cooled, gas
Cycle
4-cycle
Bore and stroke
60x42 mm 2.36x1.65 in
Piston displacement
122 cc 7.4 cu in
Compression ratio
8:5:1
Direction of rotation of output shaft
Counterclockwise viewed from shaft side
Inclination limit
Tilted up to 20 degrees in any direction
Idle speed at output shaft
1700 (+/- 100) rpm
Maximum speed at output shaft
2950 (+/- 150) rpm
Horsepower
At 3600 rpm: 2.4 kW 3.2 hp
Number of blades
7 or 11 blade
Traction drum
Dual, aluminum
Forward speed
With transport wheels at 3000 engine rpm: 7.2 km/h 4.5 mph
Weight (less GTC's, gear drive and transport wheel, with catcher)
107.7 kg 237 lb
Operator ear
84 dBA
Fuel Type
Regular grade unleaded or leaded
Tank capacity
2.5 L 0.66 US gal
Oil Type
SAE 30 or SAE 10W-30
Capacity
0.6 L0.63 US gal
Differential drive capacity
0.14 L 0.3 US gal
Material
Heat-treated chromium molydenum steel
Gear drive
Gear driven from reel shaft, opposite direction of reel, rotation powers brush or vertical cutter
Grass Catcher Size
2.7 kg 6 lb
Grass Catcher Type
Polyethylene
Transport
Belt tension
Reel jaw-type clutch
On/off
Brush/GTC jaw-type clutch
On/off
