Description

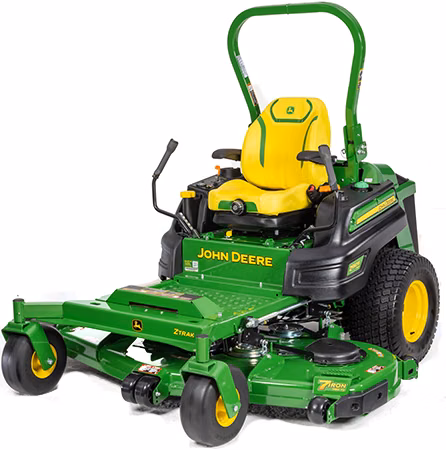

John Deere Z997R Diesel
Specifications
Manufacturer
John Deere
Model
Z997R Diesel
Year
2024
Category
Mowers
Subcategory
Zero Turn Mowers
Mower decks Size
60-in (152-cm) 7Iron™ PRO side-discharge 72-in (183-cm) 7Iron™ PRO side-discharge 60-in (152-cm) FastBack™ PRO rear-discharge 72-in (183-cm) FastBack™ PRO rear-discharge
Deck construction 7-Iron™ PRO
7-gauge, 0.179-in (4.6-mm) one-piece forged steel
Deck construction FastBack™ PRO
7-gauge, 0.179-in (4.6-mm) fabricated steel
Height-of-cut range
Increments0.25 in 0.64 cm 1.5-5 in 3.8-12.7 cm
Cutting width
60, 72 in 152, 183 cm
Thickness
0.25 in 0.64 cm
Length
60-in (152-cm) side-discharge: 96 in 244 cm
Width With chute down
74, 86 in 188, 218 cm
Width Rear discharge
63.5, 75.8 in 161.3, 192.5 cm
Height With ROPs up
85 in 216 cm
Height With ROPS down
48 in 122 cm
Manufacturer/Model
3TNV88C
Power
Gross at 3,000 rpm, PS: 37.4 hp 27.5 kW
Displacement
100.2 cu in 1,642 cc
Cylinders
Three
Crankcase capacity
3.8 US qt 3.6 L
Oil filter
Full flow, replaceable, spin-on type
Lubrication
Full pressure
Cooling
Liquid
Air cleaner
Pre-cleaner
Fuel type
Diesel or Biodiesel (up to B20)
Fuel tank capacity
12 US gal 45.4 L
Charge system
75 amp
Battery voltage
12 V
Cold cranking amp
At 18 degrees C, 490 amp
Hour meter
Digital multi-function display
Transmission
Hydrostatic
Wheel motors
Parker Ross TG0310, 18.9 cu in 310 cc
Travel speed range
0-11.5 mph 0-18.5 km/h
Travel speed Forward
0-11.5 mph 0-18.5 km/h
Travel speed Reverse
0-5 mph 0-8 km/h
Speed and direction control
Zero turn
Hydraulic capacity
Tank capacity, 3.2 US gal 12.1 L
Filter
Spin-on Type
Drive wheels

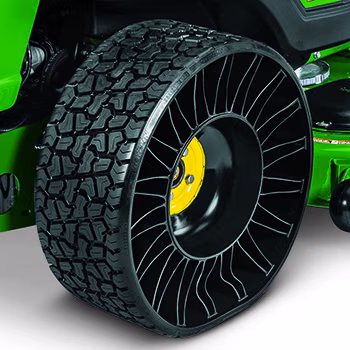

26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
Rear tires
26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
Load rating
4PR
Dynamic braking
Dual hand controlled levers
Park brake
Caliper disc brake
Park brake actuation
Hand lever
PTO Type
Hydraulic clutch
Drive
Internal wet disk clutch
Blades Length
Varies by deck size
Blade tip speed 7Iron PRO
Approximately 18,000 fpm
Blade tip speed 60-in (152-cm) FastBack
Approximately 15,000 fpm
Blade tip speed 72-in (183-cm) FastBack
Approximately 17,000 fpm
Blades Number
Three

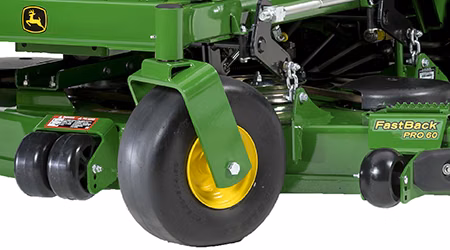

Caster wheel type
Flat free
Caster wheels
15x6-6
Front anti-scalp rollers
LH, RH, Center
Rear anti-scalp rollers
LH, RH, Center
Weight
1,960 to 2,100 lb 889 to 953 kg
Slope operating limit
20 degrees (10 degrees with material collection system)
