Description
John Deere Z760R
Specifications
Manufacturer
John Deere
Model
Z760R
Year
2024
Category
Mowers
Subcategory
Zero Turn Mowers

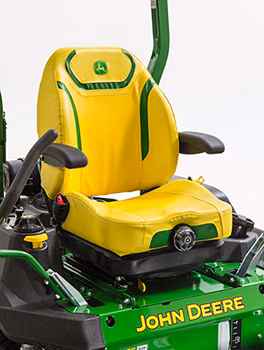

Seat back height
High back with armrests, 24 in 60.9 cm
Fore-aft adjustment
While seated, 4 in 10.2 cm
Mower cut height
1.5-5 in 3.8-12.7 cm
Cut height increments
0.25 in 0.64 cm
Width of cut
54 in 137 cm 60 in 152 cm
Mower deck material
9 gauge 0.150 in 3.8 mm
Wheelbase
49.9 in 126.7 cm
Overall length
82 in 208.4 cm
Width without mower
48.6 in 123.5 cm
Width with mower 54 HC
68.2 in 173.2 cm
Width with mower 60 HC
73.3 in 186.1 cm
Width with mower (deflector raised for storage) 54 HC
59.4 in 151 cm
Width with mower (deflector raised for storage) 60 HC
64.8 in 164.5 cm
Height ROPS up
71.1 in 182.2 cm
Height ROPS down
49.7 in 126.2 cm

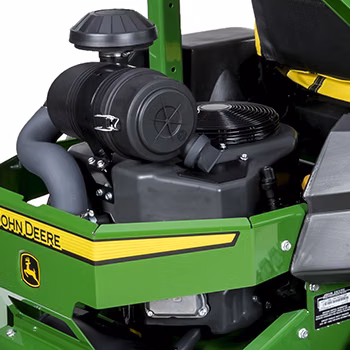

Power
27 hp 20.1 kW
Model number
FX850V
Displacement
52.0 cu in 852 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2.4 US qt 2.3 L
Type
Overhead valve
Battery
12 V 340 CCA
Choke/speed control
Separate control levers
Cooling method
Air
Fuel tank capacity
8 US gal 30.2 L
Fuel gauge
Fuel level sight line
Dual hydros
Hydro-gear ZT3400 with 1-in (2.54-cm) axles
Forward speed
0-10 mph 0-16.1 km/h
Reverse speed
0-4.5 mph 0-7.2 km/h
Speed and direction control
Twin premium levers
Control adjustment
2-height/18 positions

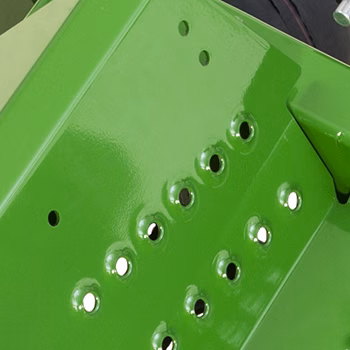

Frame
Heavy-duty frame tubing
Primer/paint
E-coat/powder

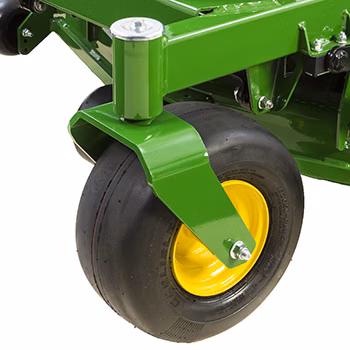

Front caster tires
13x6.5-6
Front caster bearings
Sealed ball bearings
Drive tires
24X12-12 (54- and 60-in decks)
Seat suspension
Mechanical; adjustable for weight with ComfortGlide™
Lift system Type
Spring assisted foot lift

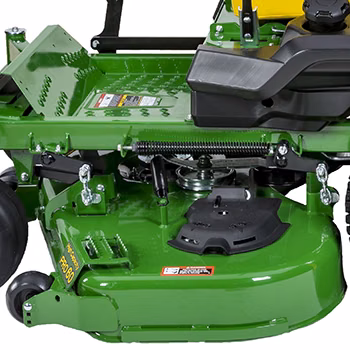

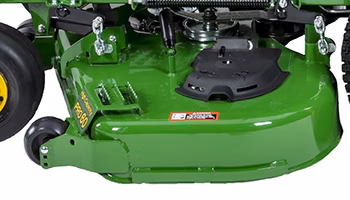

Mower deck Type
High-capacity (HC) PRO side discharge

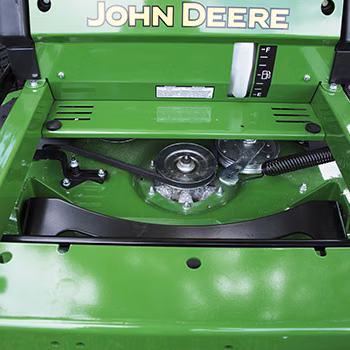

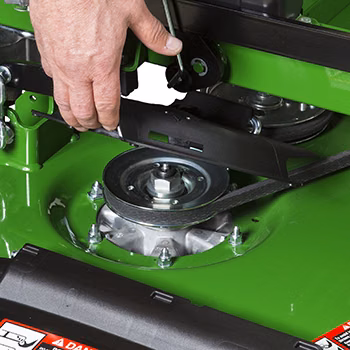

Mower drive system
V-belt
PTO Type
Electric, 125 lb-ft 169 Nm
Drive
V-belt
Weight With mower and fuel, 54 HC
1,055 lb 479 kg
Weight With mower and fuel, 60 HC
1,070 lb 485 kg
