Description

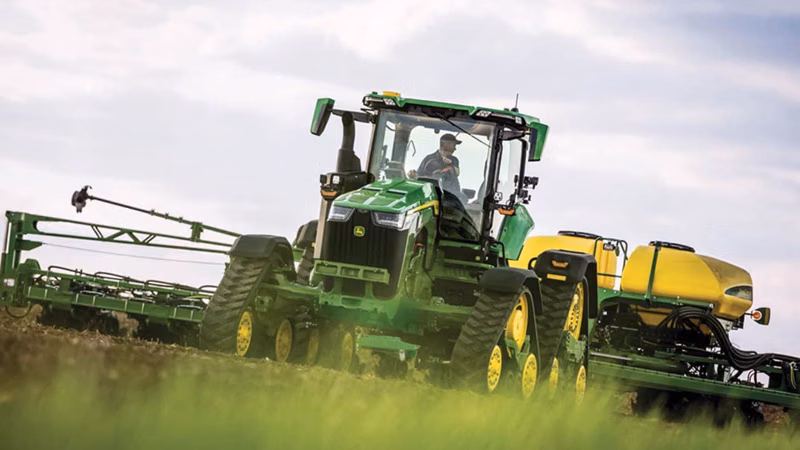

John Deere 8RX 340
Specifications
Manufacturer
John Deere
Model
8RX 340
Year
2024
Category
Tractors
Subcategory
Four-Track Tractor
Engine description
John Deere PowerTech™ PVS 9.0 L,(B20 diesel compatible)
Engine displacement
9 L,549 cu in
Rated engine power
ECE-R120: 250 kW,,340 hp
Maximum,engine power
ECE-R120: 275 kW,,374 hp
Rated PTO power (hp SAE)
211 kW,,284 hp
Engine type
Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head
Engine family
JJDXL09.0308
Rated speed
2100 RPM
Aspiration
Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders liners
Wet-sleeve
Emission level
Final Tier 4
After treatment type
Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
Power boost
10 percent
Engine peak torque
At 1600 RPM: 1592 Nm1174 lb-ft
PTO torque rise
40 percent
Engine RPM,(at rated PTO speeds)
IVT: 1,000 PTO RPM,at 2,000 engine RPM, 1,000 ECO PTO at 1594 engine RPM, 540 PTO RPM,at 1,814 engine RPMe23 PowerShift: 1,000 PTO RPM,at 1,995 engine RPM, 1,000 ECO PTO at 1,590 engine RPM, 540 PTO RPM,at 1,810 engine RPM
Engine
340 hp
Rear hitch category (SAE designation)
Category 4N/3 standard lift at 610 mm,(24 in) behind hitchpoint: 9072 kg20,000 lb
Base machine weight
e23, 457-mm,(18-in) front/rear and 3048-mm,(120-in) tread: 19,600 kg
Description
John Deere PowerTech™ PVS 9.0 L,(B20 diesel compatible)
Transmission Type
e23™ PowerShift™ with Efficiency Manager™ 40K, 40 km/h24.9 mph
Hydraulic System,Type
Closed-center, pressure/flow compensated system,with load sensing
Pump rated output
85-cc pump: 227.1 L/min60 gpm
Available flow at a single rear SCV
1.3-cm,(1/2-in) couplers: 132 L/min35 gpm1.9-cm,(3/4-in) coupler: 159 L/min42 gpm
Number of rear selective control valves (SCVs)
1.3-cm,(1/2-in) ISO couplers: 8
SCV control
Electronic
Hitch category (SAE designation)
Category 4N/3 standard lift at 610 mm,(24 in) behind hitchpoint: 9072 kg20,000 lb
Sensing type
Electrohydraulic
Drawbar category
Category 4
Maximum,vertical load
2245 kg4950 lb
Rear Power Take-Off (PTO) Type
IndependentStandard: 44 mm,(1.75 in) 20-spline, 1,000 RPM
Multispeed PTO option availability
Available: 45-mm,(1.75-in), 1000-RPM,and 1000E economy RPM,PTO, in-cab shiftable
Front Axle differential lock
Full-locking electrohydraulic (actuated at same time as rear diff-lock)
Rear Axle Type
Flange
Rear differential lock
Full-locking electrohydraulic
PTO actuation
Electrohydraulic with adjustable modulation
Final drive type
Inboard planetary
Tread spacing
Available: 1930.4 mm,76 in,2032 mm,80 in,2235.2 mm,88 in,3048 mm,120 in
Drive type
Camso® 4500 and 6500 General Ag Series - reinforced drive lug technology
Front Axle
1700 Series MFWD
Track width
Available: 457 mm,18 in,609 mm,24 in,762 mm,30 in
Midrollers
Front: Two Rear: Three
Steering Type
Hydraulic power Steering with electronic back-up pump
Seat
Degree of seat swivel, left hand25 degree (angle)Degree of seat swivel, right hand40 degree (angle)
Display
Generation 4 4100 Comm,andCenter™ with 17.8-cm,(7-in) display
Radio
AM/Fm,stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Wheelbase
3235 mm,127.36 in
Inner cab volume
3.24 m,3114 cu ft
Cab glass area
6.52 m,270.18 sq ft
Maximum,ballast level
17,690 kg39,000 lb
Maximum,permissible weight
19,958 kg44,000 lb
Crankcase oil volume
26.6 L,7 US gal
Fuel tank
851 L,225 US gal
Diesel exhaust fluid (DEF) tank
37.2 L,9.8 US gal
Cooling system
40.3 L,10.6 US gal
Interval for engine oil change
500 hours
Interval for engine coolant change
6,000 hours
Guidance
Integrated AutoTrac™
Telematic
Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Remote diagnostics
Available with activated JDLink hardware and activations
Available flow at front SCVs
96 L/min25 gpm
