Description

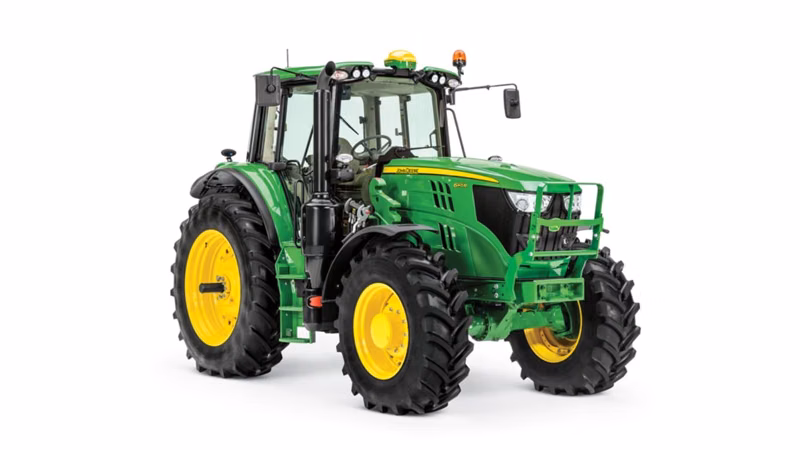

John Deere 6145M
Specifications
Manufacturer
John Deere
Model
6145M
Year
2024
Category
Tractors
Subcategory
Row Crop Tractors
Wheelbase
2765 mm 108.9 in
Overall width
2490 mm 98.03 in
Overall length
4730 mm 186.2 in
Overall height
2990 mm 117.72 in
Front axle center
Ground clearance: 530 mm 20.9 in
Maximum lift height
NSL/MSL: 4.52 m 177.95 in
Description
John Deere PowerTech™ PSS
Engine type
4045HL556
Engine family
JDXL06.8324
Rated speed
2100 rpm
Aspiration
Dual turbochargers, variable geometry turbo with fixed geometry turbo in series
Emission level
Stage V
After treatment type
Pump rated output
Displacement
4.5 L 275 cu in
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
107 kW 145 hp
Rated PTO power (hp SAE)
85 kW 116 hp
Maximum PTO power
At 1000 PTO rpm: 94 kW 128 hp
Power boost
10 percent
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
118 kW 161 hp
Engine peak torque
At 1600 U/min: 680 Nm 501.54 lb-ft
PTO torque rise
40 percent
Reverser
Electronic left-hand reverser
Number of mid selective control valves (SCVs)
Up to three
Joystick SCV control
Mechanical/electrical
Hitch category (SAE designation)
3N
Sensing type
Electronic lower link
Rear axle differential lock
Electrohydraulically with oil-cooled clutch
Drawbar category
Category 2
Maximum vertical load Road/field use (250-mm extended)
2000 kg 4409.2 lb
Maximum vertical load Field use (350-mm extended)
1400 kg 3086.5 lb
Maximum vertical load Field use (400-mm extended)
1200 kg 2645.5 lb
Engine rpm (at rated PTO speeds)
540:1977 rpm 1000: 1972 rpm
PTO actuation
In-cab switch and external fender-mounted remote control
Category
3N
Electric power
Seven-pin electrical socket
Standard lift capacity
4400 kg 9700.3 lb
Front power take-off (PTO)
Electrohydraulically engaged with oil-cooled, multi-disc design
PTO speed
1000 PTO: 1969 rpm
Final drive type
Three planetary gear reduction
Rear differential lock
Electrohydraulically with oil-cooled clutch
Front axle differential lock
Self-locking differential
Tires Rear
650/65R38 (185)
Steering Type
Dynamic load sensing, hydrostatic, flow metering
Inner cab volume
2.73 m 396.41 cu ft
dB(A) rating
70 dBA
Cab glass area
Without roof hatch or panoramic roof: 4.85 msup 2 52.2 sq ft
Approximate shipping weight, Open;Cab
Cab: 6200 kg 13,668 lb
Base machine weight Front axle
2300 kg 5070 lb
Base machine weight Rear axle
3900 kg 8598 lb 6200 kg 13,668 lb
Maximum permissible weight
10,450 kg 23,038 lb
Crankcase oil volume
16 L 4.2 US gal
Fuel tank
270 L 71.3 US gal
Diesel exhaust fluid (DEF) tank
16 L 4.2 US gal
Cooling system
27 L 7.1 US gal
Transmission-hydraulic system
PowrQuad Plus/AutoQuad Plus: 60 L 15.9 US gal
Interval for engine oil change
500 hours
Interval for hydraulic/transmission oil change
1500 hours
Interval for engine coolant change
6000 hours
Loader
660R
Lift capacity at full height Non-self-leveling (NSL)
2564 kg 5652.65 lb
Lift capacity at full height Mechanical self-leveling (MSL)
2301 kg 5072.83 lb
