Description

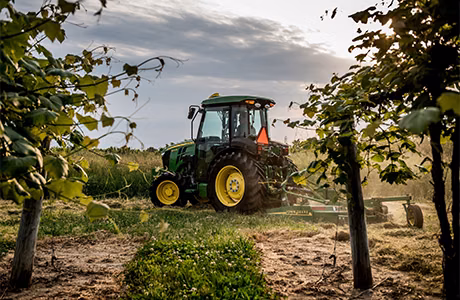

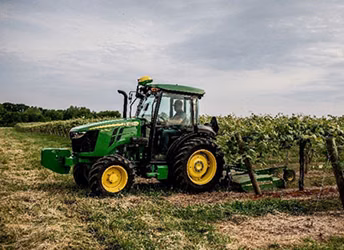

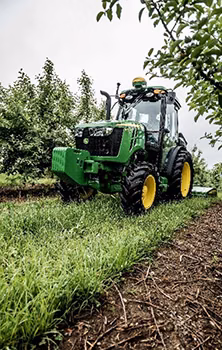

John Deere 5075EN
Specifications
Manufacturer
John Deere
Model
5075EN
Year
2024
Category
Tractors
Subcategory
Tractors
Description
John Deere PowerTech™ 3029 EWX
Engine type
3029HPY110
Engine family
NJDXL02.9339
Rated speed
2100 rpm
Aspiration
Turbocharged
Cylinders liners
Wet sleeved
Emission level
Final Tier 4
After treatment type
DOC/DPF
Displacement
3 cylinders: 2.9 L, 179 cu in
Rated power
At 2100 rpm: 55 kW 75 hp
Rated PTO power (hp SAE)
At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Power boost
0 percent
Maximum engine power
55 kW 73.7 hp
Engine peak torque
At 1500 rpm: 304 Nm 224 lb-ft
PTO torque rise
21 percent
Type
Standard: PowrReverser™ 12F/12R
Type,One
Optional: PowrReverser™ 24F/12R
Clutch; wet/dry
Wet
Hitch draft control load sense type
Electrohydraulic
Remote control valves available
Standard: Two
Hitch category (SAE designation)
Category 2N; convertible to 2 & 1
Maximum lift capacity behind lift points
1390 kg 3604 lb
Sensing type
Top link
Maximum vertical load
Road/field use (short position): 1120 kg 2470 lb
Maximum vertical load,One
Field use (fully extended): 760 kg 1675 lb
Type
Standard: 540/540E
Engine rpm (at rated PTO speeds)
540 at 2100 rpm 540E at 1588 rpm
PTO actuation
Electrohydraulic
Type,One
Flange
Final drive type
Planetary
Differential controls
Mechanical (pedal)
Brakes, type and control
Hydraulic wet disc
Type,Two
Mechanical Front Wheel Drive (MFWD)
Rear
14.9-24 in 8PR R1 Bias
Turning radius with brakes
3.2 m 10.5 ft
Turning radius without brakes
4.65 m 15.3 ft
Rollover protective structure, OOS
Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side
Seat
Standard: Mechanical
Seat,One
Optional for Cab: Air Ride
Display
Simple automotive-style instrument cluster
dB(A) rating
82 dBA
Fuel tank
66 L 17.43 US gal

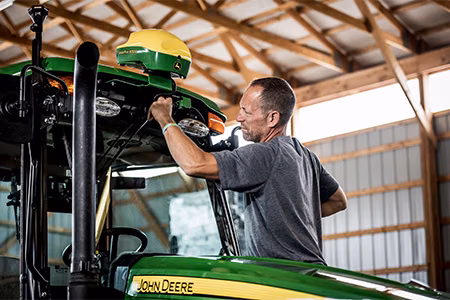

Guidance
Optional: AutoTrac™ Universal Ready
Telematic
JDLink™ Modem
AutoTrac ready
Optional for cab models
Country of manufacture
Saltillo, Mexico
Date collected
6-Jan-2024
