Description
John Deere 9RX 640
Specifications
Manufacturer
John Deere
Model
9RX 640
Year
2024
Category
Tractors
Subcategory
Tractors
Wheelbase
4125 mm 162.4 in
Overall length
Excluding hitch: 8309 mm 327.1 in Including hitch and coupler: 8545 mm 336.4 in
Drawbar clearance
311 mm 12.2 in
Description
JD14 (B20 diesel compatible)
Engine type
In-line six, four valve
Engine family
MJDXL13.5334
Rated speed
2100 rpm
Aspiration
Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Cylinders liners
Wet-sleeve
Emission level
Final Tier 4 (FT4)
After treatment type
Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
Displacement
13.6 L 827 cu in
Rated power
471 kW 640 hp
Rated PTO power (hp SAE)
249 kW 335 hp
Power boost
8 percent
Maximum engine power
508 kW 691 hp
Engine peak torque
At 1550 rpm: 2954 Nm 2179 lb-ft
PTO torque rise
38 percent
Transmission Type
John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h 25 mph
Available flow at a single rear SCV
1.3-cm (1/2-in) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in) couplers: 159 L/min 42 gpm

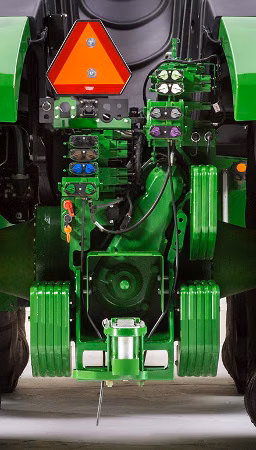

Number of rear selective control valves (SCVs)
Four to eight factory or field installed Base: four 1.3-cm (1/2-in) couplers
SCV control
Electronic
Rear Hitch category (SAE designation)
Category 4N: 6804 kg 15,000 lb Category 4N: 9072 kg 20,000 lb
Maximum lift capacity behind lift points
Category 4N/4: 9072 kg 20,000 lb
Sensing type
Electrohydraulic with draft sensing
Drawbar category
Category 5
Maximum vertical load
5440 kg 12,000 lb
Type
Independent 44 mm (1.75 in) 20-spline, 1000 rpm
PTO actuation
Electrohydraulic
Final drive type
Bull gear and double idler with floating pinion
Rear differential lock
Full-locking electrohydraulic
Front axle differential lock
Full-locking electrohydraulic
Turning radius with brakes
With 76.2 cm (30 in) track and 221 cm (87 in) spacing: 6.42 m 21.1 ft
Tread spacing
Wide undercarriage: 2218 mm 87 in 3048 mm 120 in
Drive type
Camso® 3500 and 6500 Ag Series - reinforced drive lug technology
Mid-rollers
Two
Battery options
12 V
Total cold cranking amps
3 x 925 CCA Total: 2775 CCA
Seat
Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) Air suspension
Approximate shipping weight, Open;Cab
25,546 kg 56,320 lb
Base machine weight
25,846 kg 56,981 lb
Maximum ballast level
30,391 kg 67,000 lb
Crankcase oil volume
64 L 16.9 US gal
Fuel tank
1514 L 400 US gal
Diesel exhaust fluid (DEF) tank
120 L31.7 US gal
Cooling system
56.5 L 14.9 US gal
Transmission-hydraulic system
With 3-point hitch and PTO: 227 L60 US gal without 3-point hitch and PTO: 220 L58 US gal
Interval for engine oil change
500 hours
Interval for hydraulic/transmission oil change
1500 hours
Interval for engine coolant change
6000 hours
Guidance
Integrated AutoTrac™
Telematic
Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Remote diagnostics
Available with activated JDLink hardware and activations
Inner cab volume
3.27 msup 3 115 cu ft
Cab glass area
6.64 msup 2 71.47 cu ft
Hydraulic System Type
Closed-center, pressure-and-flow compensated
