Description

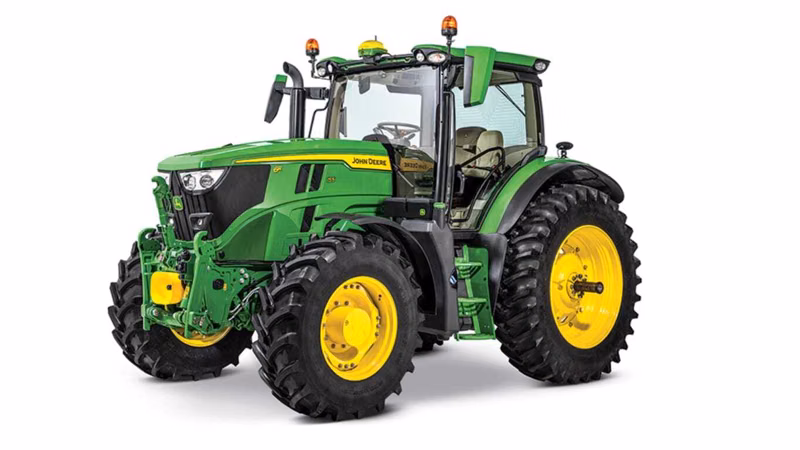

John Deere 6R 155
Specifications
Manufacturer
John Deere
Model
6R 155
Year
2024
Category
Tractors
Subcategory
Utility Tractors
Engine type
Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head
Engine family
NJDXL06.8324
Rated speed
2100 rpm
Aspiration
Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Emission level
Final Tier 4
After treatment type
DOC/DPF/SCR
Displacement
6.8 L (415 cu in)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
97/68EC: 116 kW (155 hp)
Rated PTO power (hp SAE)
91 kW (122 hp)
Intelligent Power Management (IPM)
Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp
Power boost
10 percent
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
97/68EC: 125 kW (168 hp)
Engine peak torque
At 1600 rpm: 724 Nm (533 lb-ft)
PTO torque rise
40 percent
Type
Standard: IVT, 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K) 24-speed Direct Drive (40K) mph 24-speed Direct Drive (50K)
Engine rpm (at rated PTO speeds)
1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO
PTO actuation
Electrical modulation
Front power take-off (PTO)
1000 rpm, clockwise rotation (from driving position)
PTO speed
Engine at PTO speed (1000): 1969 rpm
Reverser
Left-hand electrical reverser
Creeper
Available with AutoQuad
Type
Closed-center, pressure-and-flow compensated
Pump rated output
Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm
Available flow at a single rear SCV
100 L/min (26 gpm)
Number of rear selective control valves (SCVs)
Standard: Three ISO couplers Optional: Three to five ISO couplers
Number of mid selective control valves (SCVs)
Up to three
Joystick SCV control
Available
SCV control
Standard: Mechanical Optional: Electronic
Remote control valves available
Available: Remote control switch
Rear hitch category (SAE designation)
Category 3/3N: 4170 kg 9193 lb
Maximum lift capacity behind lift points
4200 kg (9259 lb)
Sensing type
Electrohydraulic
Rear axle differential lock
Electrohydraulic
Drawbar category
Category 2
Maximum vertical load
Category 2: 1400-2450 kg 3085-5400 lb Maximum vertical load dependent on drawbar position
Category
Category 3N
Electric power
Seven-pin electrical socket Optional: Three-pin and ISOBUS socket
Standard lift capacity
At hook ends: 3300 kg (7275 lb)
Final drive type
Inboard planetary three pinion
Differential controls
Full-locking electrohydraulic
Front axle differential lock
MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic
Rear
480/80R42 R1/R1W Radial
Type Two
Hydrostatic power
Alternator size
Standard: 120 amp Optional: 250 amp
Battery options
12 V
Working lights
Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen
Type of bulb in headlight (Halogen, Zenon, LED)
Standard: 65-W halogen W Optional: LED
Total cold cranking amps
1200 CCA With cold weather package or IVT: 1400 CCA
Cab suspension
Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)
Inner cab volume
3.33 m3 (117.59 cu ft)
dB(A) rating
71 dB
Cab glass area
6.11 m2 (65.77 sq ft)
Approximate shipping weight, Open;Cab
7100 kg (15,653 lb)
Maximum permissible weight
11,750 kg (25,904 lb)
Crankcase oil volume
23.5 L (6.2 US gal)
Fuel tank
270 L (71.3 US gal)
Diesel exhaust fluid (DEF) tank
16 L (4.2 US gal)
Cooling system
28 L (7.4 US gal)
Transmission-hydraulic system
IVT: 62 L (16.4 US gal) AutoQuad: 63 L (16.6 US gal) DirectDrive ECO: 75 L (19.8 US gal)
Interval for engine oil change
750 hours
Interval for hydraulic/transmission oil change
1,500 hours
Interval for engine coolant change
6,000 hours
Loader
620R 640R
Lift capacity at full height
620R: 2181 kg (4808 lb) 640R: 2586 kg (5701 lb)
Country of manufacture
Germany
