Description

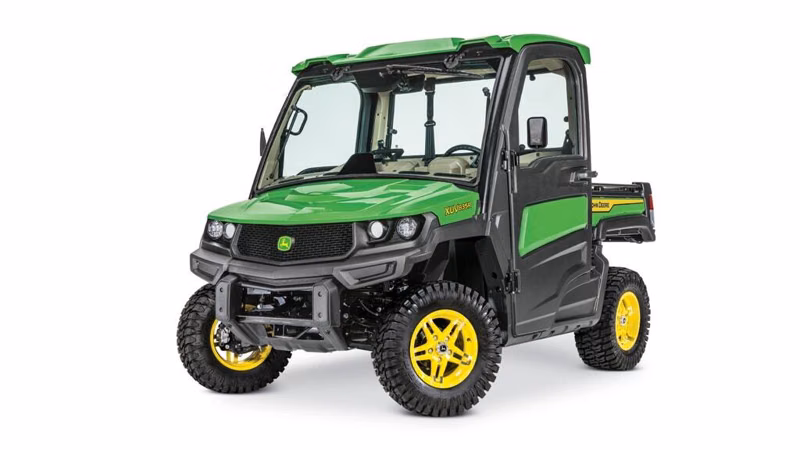

John Deere-XUV835R Premium Cab
Specifications
Manufacturer
John Deere
Model
XUV835R Premium Cab
Year
2024
Category
Utility Vehicles
Subcategory
Utility Vehicles
Cargo box dimensions
1143 x 305 x 1320 mm 45 x 12 x 52 in
Wheelbase
2146 mm 84.5 in
Length
3228 mm 127 in
Width
1763 mm 69.4 in
Height
1987 mm 78.2 in
Tread centers Front
1341 mm 52.8 in
Tread centers Rear
1259 mm 49.6 in
Ground clearance
284 mm 11.2 in
Hitch
Standard receiver: 5.1 cm 2 in
Engine power
40.3 kW 54 hp
Engine Type
4-cycle gas, electronic fuel injection (EFI)
Displacement
812 cc
Cooling system
Liquid
Cargo box capacity (weight)
454 kg 1000 lb
Towing capacity
Up to 1814 kg 4000 lb
Front suspension
Fully independent dual A-arm with adjustable coils; 203 mm (8 in ) of travel
Rear suspension
Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in ) of travel
Final drive
Park, high, low, neutral, reverse transaxle
Four wheel drive
Dash switch actuated four-wheel drive system
Fuel capacity
42.4 L 11.2 U.S. gal
Transmission
Continuously Variable Transmission (CVT) with clutch enclosure
Traction assist
Limited slip front differential, Positive locking, switch actuated rear differential lock
Type
Front/rear hydraulic disc with twin piston front calipers
Park brake
Park in-transmission, Optional factory-installed secondary foot operated with hand release
Front
27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Rear
27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Weight
With fuel and fluids: 1050 kg 2316 lb
Payload capacity
495 kg 1090 lb
Color
Green and yellow, TrueTimber® KANATI® camo, olive and black
Battery / Alternator / Power port
Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V
Instrumentation
Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
StorageTotal
69.5 L 18.4 gal
Storage Six cup holders
4.6 L 1.2 gal
Storage Center tray
1.2 L 0.3 gal
Storage Two dash bins
3.3 L 0.9 gal
Storage pocket
1.4 L 0.4 gal
Seating
Stone cloth or black vinyl 40/60 split three-passenger bench
