Description

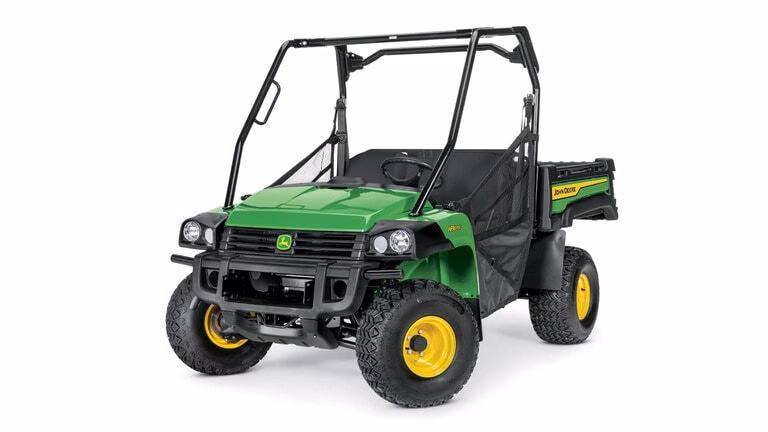

John Deere-HPX815E
Specifications
Manufacturer
John Deere
Model
HPX815E
Year
2024
Category
Utility Vehicles
Subcategory
Utility Vehicles
Tires / Wheels Front
24 x 9.5-10
Tires / Wheels Rear
24 x 12.0-10
Wheelbase
1910 mm 75.2 in
Length
3022 mm 119 in
Width
1486 mm 58.5 in
Height
1867 mm 73.5 in
Tread centers Front
1257 mm 49.5 in
Tread centers Rear
1219 mm 48 in
Ground clearance
152 mm 6.0 in
Cargo box dimensions
1143 x 305 x 1320 mm 45 x 12 x 52 in
Hitch
Standard receiver: 5.1 cm 2 in
Engine power
13.6 kW 18.2 hp
Displacement
854 cc
Cooling system
Liquid
Engine Type
3-cylinder, 4-cycle diesel
Front suspension
Independent with McPherson strut
Rear suspension
Coil-over shock
Transmission
Continuously Variable Transmission (CVT)
Final drive
Park, high, low, neutral, reverse transaxle
Four wheel drive
Dash switch actuated four-wheel drive system
Traction assist
Limited slip front differential, Positive locking, switch actuated rear differential lock
Brakes Type
Hydraulic disc brakes
Park brake
Optional factory installed, hand operated
Weight
With fuel and fluids: 728 kg 1606 lb
Fuel capacity
27.6 L7.3 U.S. gal
Cargo box capacity (weight)
454 kg 1000 lb
Payload capacity
635 kg 1400 lb
Towing capacity
590 kg 1300 lb
Color
Green/yellow
Battery / Alternator / Power port
Battery: 12 V 480 CCA Alternator: 40 amp DC outlet: 12 V
Storage
Cup holders, glove box
Seating
Black vinyl bench
