Description

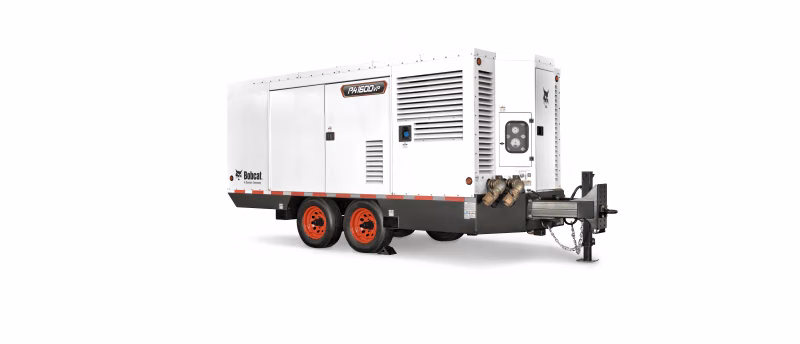

The Bobcat PA1600VP delivers heavy-duty air power that can be easily adjusted to fit your varied jobsite needs. Powered by your choice of engine – Cummins or CAT – this newly redesigned towable compressor features a compact footprint, an efficient airend with wider flow and pressure ranges, as well as best-in-class serviceability. The PA1600VP was engineered for maximum jobsite productivity. Extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine scheduled maintenance or on-the-job fixes. For jobs that include different applications, you can easily switch between two adjustable pressure settings – 150 or 200 psi – directly from the control panel. Dual pressure technology from Bobcat gives you the versatile air power you need to maximize productivity on the jobsite. With the HI/LOW options on the control panel, you can easily choose between the two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors. The proprietary airend, custom designed for this machine, offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need for big jobs. Yet the compact design makes it easy to maneuver around the jobsite with exceptional towability and cooling performance. It can also be mounted to a flatbed for easier transportation. For specialized jobs requiring cleaner air, the PA1600VP can be equipped with the patented IQ System®, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles. For heavy-duty jobs, rely on the Bobcat PA1600VP to deliver versatile air power to maximize your jobsite productivity.
Specifications
Manufacturer
Bobcat
Model
PA1600VP (Cat Engine)
Year
2024
Category
Power Equipment
Subcategory
Portable Air Compressors
Rated Operating Pressure
150/200 psig (10.3/13.8 bar)
Rated Speed
1850/1600 rpm
Idle Speed
1,300 rpm
Shipping Weight with Running Gear
18,225 lb
Operating Weight with Running Gear
19,625 lb
Shipping Weight without Running Gear
17,250 lb
Operating Weight without Running Gear
18,650 lb
Fuel Tank Capacity
200 gal
Pressure Range
80-200 psig (5.5-13.8 bar)
Air Discharge Outlet Size
36 in
Engine Make
Caterpillar
Engine Emissions Tier Level
Tier 4 Final (T4F)
Engine Displacement
763 in³
Engine System Voltage
24 V
Length with Running Gear
235 in
Width with Running Gear
90.1 in
Height with Running Gear
102 in
Track Width with Running Gear
71 in
Dimension Tire Size with Running Gear
17.5 in
Length without Running Gear
209 in
Width without Running Gear
90.1 in
Height without Running Gear
96.5 in
