Description

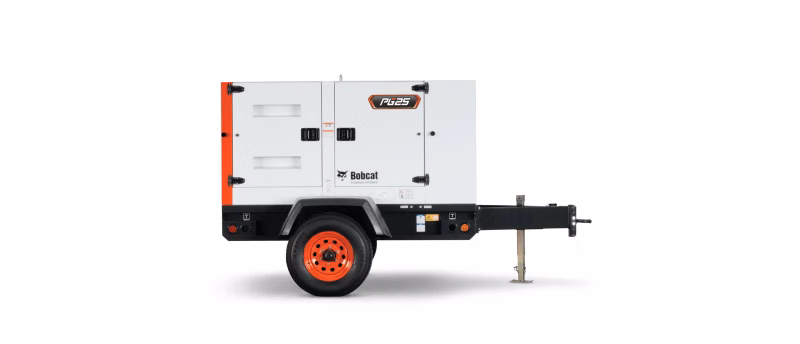

The PG25 portable generator from Bobcat delivers dependable power in a small package. Built tough with a rugged enclosure and running gear, the PG25 can withstand the toughest conditions to keep you up and running, maximizing your jobsite productivity. Its user-friendly control panel, easy-to-read analog gauges, 25-hour runtime and quiet operation make the PG25 ideal for events, emergency backups and construction sites. Bobcat designed the compact PG25 generator to be easy to operate for you and your crew or for rental applications. The simple control panel comes with neatly laid out gauges and diagnostic displays that allow users to quickly monitor the generator and make adjustments as needed. From heavy-duty construction needs to music festivals, the PG25 also offers multiple connection options for ultimate versatility. The reliable Doosan D18 engine ensures longer runtime and maintenance intervals, while the Marelli alternator further enhances overall reliability and efficiency with strong motor starting capability, stable voltage regulation and fast transient response. For low-load operation, the built-in Intelligent Load Management System (ILMS) automatically protects the PG25’s engine and exhaust after-treatment system during unfavorable operating conditions. The ILMS creates a mechanical load on the engine to substantially – and immediately – heat the engine coolant to reach ideal operational temperature and minimize wet stacking. This prolongs the life of your generator and reduces maintenance costs.
Specifications
Manufacturer
Bobcat
Model
PG25
Year
2024
Category
Power Equipment
Subcategory
Portable Generators
Runtime Hours @ 75% Load
30
Power Output @ 1800RPM
33 hp
Fuel Tank Capacity
47 gal
@ 480V-3-phase, 0.8PF, 60Hz
25 kVA (20 kW), 30 Amps
@ 240V-3-phase, 0.8PF, 60Hz
25 kVA (20 kW), 60 Amps
@ 208V-3-phase, 0.8PF, 60Hz
25 kVA (20 kW), 69 Amps
@ 240V-single-phase, 1.0PF, 60Hz
20 kVA (20 kW), 83 Amps
@ 120V-single-phase, 1.0PF, 60Hz
20 kVA (20 kW), 83 x 2 Amps
@ 400V-3-phase, 0.8PF, 50H
25 kVA (20 kW), 36 Amps
Voltage Configuration
3-Position Switch
Sound Level
62 dB(A)
Frequency Capability
50Hz/60Hz Switchable
Length
130.5 in
Width
68.3 in
Height
76.6 in
Engine Make
Doosan
Engine Displacement
1.8 l
Engine Emissions Tier Level
Tier 4 Final
