Description

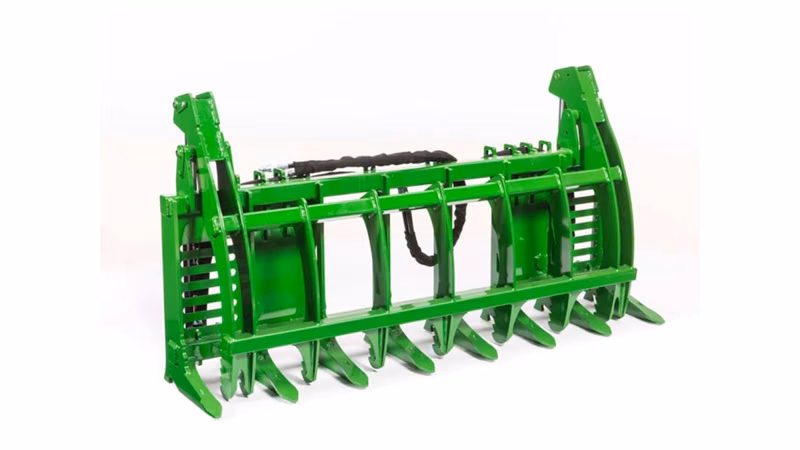

John Deere AV50E Series
Specifications
Manufacturer
John Deere
Model
AV50E Series
Year
2024
Category
Agricultural Equipment
Subcategory
Loader Attachments
Tractor Requirements Tractor HP Min /Max., HP (kW)
42-75HP (31.3-59.9)
Loader Interface Compatibility
300, 400 series (JD carrier)
Grapple Tines Tines - Upper Qty.
7
Grapple Tines Tines - Lower Qty.
8
Grapple Tines Tine Spacing, in ( cm )
10.5 (26.3)
Grapple Tines Bottom Tine Working Length, in ( cm )
12 (30.5)
Lift capacity, lb (kg )
Please review Loader Compatibility Chart
Capacity Grapple Clamping Force
4751 (21.1)
Weight, lb (kg )
560 lbs (254)
Shipping weight, lb (kg )
1173 lbs (532.1)
Overall Base Width, in ( cm )
72.4 (183.9)
Top Clamp Width, in ( cm )
64 (162.6)
Depth (Closed), in ( cm )
19.5 (49.5)
Height (Closed), in ( cm )
37 (94)
Height (Open), in ( cm )
46.5 (118.1)
Grapple opening, in ( cm )
44 (111.8)
Bottom Frame Steel Thickness, in ( cm )
0.5 (1.3)
Hydraulic cylinders Max Hydrualic Pressure, psi (bar)
3000 (207)
Hydraulic cylinders Type
2″ bore x 12″ stroke x 1-1/4″ rod
Hydraulic cylinders Quantity
2 Cylinders
