Description

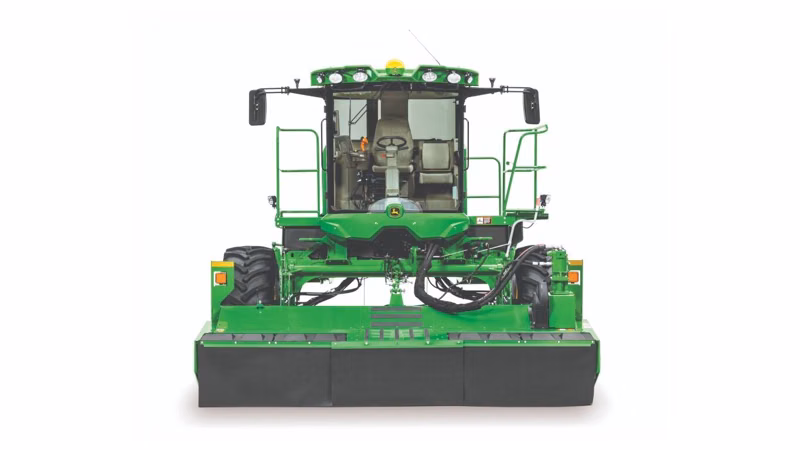

John Deere W260M
Specifications
Manufacturer
John Deere
Model
W260M
Year
2024
Category
Mowers
Subcategory
Windrowers And Platforms
Ground drive Type
Base: Two-speed hydrostatic
Hydraulic platform drive Number of pumps (Rotary/Auger)
One
Hydraulic platform drive Number of motors (Rotary/Auger)
One
Final drives Type
Direct drive heavy-duty wheel motors
Brakes Type / Activation
Manual parking brake engage button on armrest Parking brake automatically engages and disengages; integrated into multi-function lever
Hydraulics Reservoir capacity
94.5 L 25 U S gal
Fuel Capacity
568 L 150 U S gal DEF: 26.5 L DEF: 7 U S gal
Electrical system Alternator
240 amp
Electrical system Battery
Heavy-duty 12 V
Tires Drive wheel standard
620/75R26 Bar
Tires Drive wheel option
Hybrid tires: 480/80R34 Radial button: 23.1R26 R3
Tires Caster wheels
14Lx16.1 8-ply ribbed
Speeds Low range
With two speed: 24.1 km/h 15 mph
Speeds High range 2 speed / Mid range 3 speed
With two speed: 38.4 km/h 24 mph
Suspension Cab
Air-ride seat suspension for smooth ride
Cab Construction
Uni-body, welded

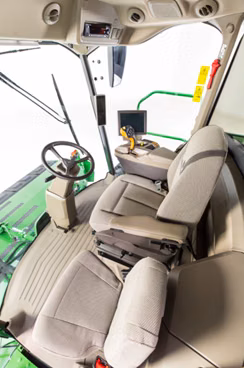

Cab Seat
Air suspension
Cab Steering column
Dual-tilt telescoping
Cab Windshield wiper
Single blade
Lights Front
Six halogen
Weight Front axle
4370 kg 9636 lb
Weight Rear axle
2627 kg 5792 lb
Weight Total
6998 kg 15,428 lb
Engine Model
PowerTech PSS Final Tier 4
Engine Horsepower
At 2,400 rpm: 193.9 kW 260 hp
Engine NO of cylinders
Six
Engine Exhaust direction
Vertical
Engine Engine displacement
6.8 L 415 cu in
Engine Engine speeds
Low idle 900 rpm Variable idle Electronic adjustable from 1,700 to 2,450 rpm High idle (no load) 2,450 rpm Rated speed 2450 rpm
Engine Oil crankcase capacity (with filter)
31.4 L 33.2 U S qt
Engine Cooling system
49.2 L 52 U S qt
Platform float system Type
Hydraulic piston accumulator
Hydraulic platform drive Pump displacement
115 cc 7.02 cu in
Hydraulic platform drive Motor displacemen
Per revolution: 75.4 cm 3 Per revolution: 4.6 cu in
Suspension Vehicle
Suspended rear axle in base
Cab Glass
5.45 m 2 58.7 sq ft
Display and input Type
Electronic touchsceen: 21.4 cm 8.4 in
Dimensions (with platform installed) Overall length without platform
5,900 mm 225.5 in
Dimensions (with platform installed) Overall height
3,760 mm 148 in
Dimensions (with platform installed) Under frame clearance
1,120 mm 44 in
Dimensions (with platform installed) Wheelbase
3710 mm 146 in
Dimensions (with platform installed) Track width
3400 mm 133 in
