Description

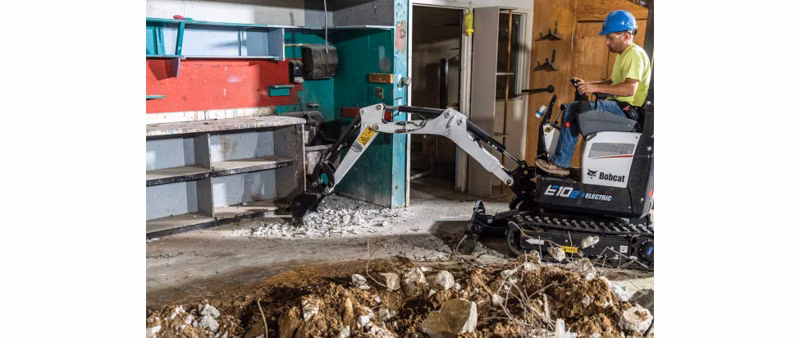

Battery-Electric Compact Excavator with a compact footprint and zero emissions, the E10e can tackle tough jobs in small places - both outdoors and indoors.
Specifications
Manufacturer
Bobcat
Model
E10e
Year
2025
Category
Excavators
Subcategory
Compact Excavators
Length
110 in
Width
27.9 in
Height
87 in
Height with Operator Cab
87 in
Lift Radius
79 in
Maximum Dig Depth
76.9 in
Max Dump Height
71.6 in
Maximum Reach at Ground Level
121.8 in
Overall Length in Travel Position
110 in
Battery Type
Lithium Ion
System Voltage
51.8 V
Gross Battery Capacity
11.52 kW·h
Interior Sound Level According to ISO 6396
72 dB
External Sound Level According to ISO 6395
85 dB
Estimated Run Time
4 h
On-Board Charge Time - 120V
10-12 h
On-Board Charge Time - 240V (one)
10-12 h
Off-Board Charge Time
2 h
Travel Speed - High
1.8 mph
Travel Speed - Low
1.1 mph
Arm Digging Force
1,248 lbf
Bucket Digging Force
1,865 lbf
Rated Lift Capacity
704 lb
Boom Swing - Left
67°
Boom Swing - Right
64°
Operating Weight
2,648 lb
Weight Class
1 t
Auxiliary Std Flow
5.3 gal/min
Auxiliary Pressure
2,756 psi
