Description

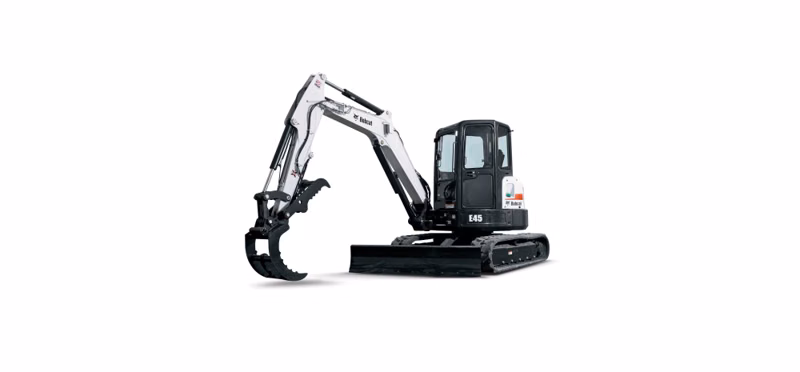

The Bobcat® E45 compact excavator (mini excavator) offers Zero Tail Swing (ZTS). Excavate close to surrounding objectives with unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property. The Tier 4-compliant E45 can be equipped with an angle blade option, long arm option or clamp-ready extendable arm option.
Specifications
Manufacturer
Bobcat
Model
E45
Year
2025
Category
Excavators
Subcategory
Compact Excavators
Maximum Governed RPM
2,200 rpm, 2,200 rpm, 2,200 rpm
Weight Class
4.6 t, 4.8 t, 4.9 t
Arm Digging Force
5,332 lbf, 4,690 lbf, 5,332 lbf
Bucket Digging Force
7,650 lbf, 7,650 lbf, 7,650 lbf
Lift Radius
118 in
Boom Swing - Left
75deg
Boom Swing - Right
50deg
Maximum Dig Depth
10.8 ft, 11.8 ft, 12.8 ft
Max Dump Height
11.9 ft, 12.5 ft, 13 ft
Maximum Reach at Ground Level
18.6 ft, 19.6 ft, 20.5 ft
Auxiliary Std Flow
20 gal/min
Length
210.8 in, 211.8 in, 211 in
Width
77.2 in, 77.2 in, 77.2 in
Height
99.7 in, 99.7 in, 99.7 in
Height with Operator Cab
99.7 in, 99.7 in, 99.7 in
Tail Swing Type
Zero Minimal Minimal
Operating Weight
10,077 lb, 10,553 lb, 10,807 lb
Rated Lift Capacity
5131 lb, 5082 lb, 5255 lb
Fuel Tank
21 gal
Auxiliary Pressure
3,045 psi, 3,045 psi, 3,045 psi
