Description

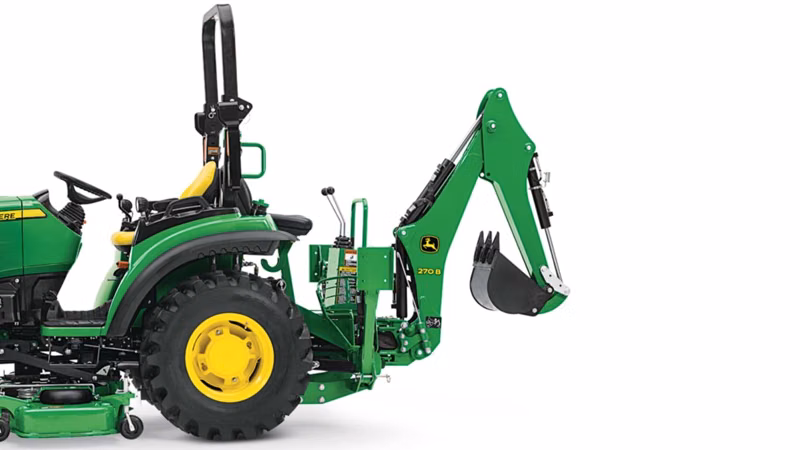

John Deere 270B
Specifications
Manufacturer
John Deere
Model
270B
Year
2024
Category
Loaders
Subcategory
Backhoes For Compact Utility Tractors
Backhoe Swing arc
150 degree (angle)
Backhoe Bucket rotation
180 degree (angle)
Backhoe Boom lift capacity
116 kg 256 lb
Backhoe SAE dipperstick digging force
6681 N1502 lb
Backhoe SAE bucket digging force
11,005 N2474 lb
Weight With 0.4-m (16-in ) bucket
350 kg 773 lb
Backhoe Bucket control main relief valve pressure
2370 psi
Digging depth
2.13 m7 ft, 0 in
Loading height (bucket at 60 degrees)
1.74 m6 ft, 1 in
Reach from center line of swing pivot
3.0 m9 ft, 9 in
Transport height
1.92 m6 ft, 3 in
Loading reach (bucket at 60 degrees)
1.13 m3 ft, 7 in
Transport overhang
1.1 m3 ft, 6 in
Undercut
43 cm 17 in
Stabilizer type
Stabilizers spread width, up1.47 m4 ft, 10 in Stabilizers spread width, down1.92 m6 ft, 7 in
Bucket Bucket widths
SAE struck capacity203.2 mm (8 in ) - 0.42 cu ft304.8 mm (12 in ) - 0.66 cu ft406.4 mm (16 in ) - 0.90 cu ftHeaped capacity203.2 mm (8 in ) - 0.46 cu ft304.8 mm (12 in ) - 0.76 cu ft406.4 mm (16 in ) - 1.06 cu ftShipping weight203.2 mm (8 in ) - 40 lb (18.1 kg )304.8 mm (12 in ) - 50 lb (22.7 kg )406.4 mm (16 in ) - 60 lb (27.2 kg )203.2 mm (8 in )304.8 mm (12 in )406.4 mm (16 in )
