Description

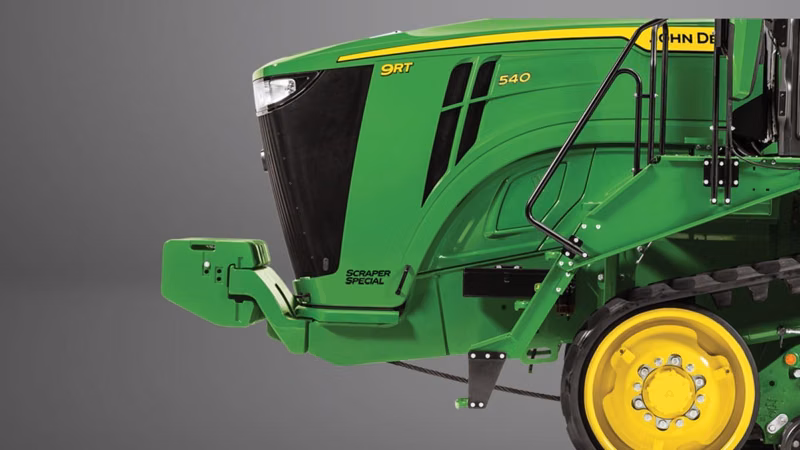

John Deere 9RT 540 (Scraper Special)
Specifications
Manufacturer
John Deere
Model
9RT 540 (Scraper Special)
Year
2024
Category
Tractors
Subcategory
Scraper Special Tractors
Transmission Type
John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h25 mph
Hydraulic system Type
Closed-center, pressure-and-flow compensated
Hydraulic system SCV control
Electronic
Drawbar Drawbar category
Drawbar support for short scraper drawbars
Rear axle Final drive type
Outboard planetary
Tracks Drive type
Camso® 6500 Scraper Series Tracks - friction drive track belts
Tracks Mid-rollers
Four
Electrical system Battery options
12 V
Electrical system Total cold cranking amps
3 x 925 CCATotal: 2775 CCA
Operator station Seat
Degree of seat swivel, left hand25 degree (angle)Degree of seat swivel, right hand40 degree (angle)Air suspension
Approximate shipping weight, Open Cab
20,582 kg 45,375 lb
Weight Base machine weight
21,425 kg 47,135 lb
Weight Maximum ballast level
24,494 kg 54,000 lb
Capacities Crankcase oil volume
64 L16.9 U S gal
Capacities Fuel tank
1324 L350 U S gal
Capacities Diesel exhaust fluid (DEF) tank
93.9 L24.8 U S gal
Capacities Cooling system
56.5 L14.9 U S gal
Capacities Transmission-hydraulic system
Without 3-point hitch and PTO: 300 L79.3 U S gal
Serviceability Interval for hydraulic/transmission oil change
1500 hours
Precision AG Guidance
Integrated AutoTrac™
Precision AG Telematic
Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Precision AG Remote diagnostics
Available with activated JDLink hardware and activations
Miscellaneous Country of manufacture
USA
Engine specifications Description
JD14 (B20 diesel compatible)
Engine specifications Engine type
In-line six, four valve
Engine specifications Engine family
MJDXL13.5334
Engine specifications Rated speed
2100 rpm
Engine specifications Aspiration
Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Engine specifications Cylinders liners
Wet-sleeve
Engine specifications Emission level
Final Tier 4 (FT4)
Engine specifications After treatment type
Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
Engine specifications Displacement
13.6 L827 cu in
Engine performance Rated power
397 kW540 hp
Engine performance Power boost
10 percent
Engine performance Maximum engine power
437 kW594 hp
Engine performance Engine peak torque
At 1550 rpm: 2492 Nm1838 lb-ft
Engine performance PTO torque rise
38 percent
Serviceability Interval for engine oil change
500 hours
Serviceability Interval for engine coolant change
6000 hours
Hydraulic system Available flow at a single rear SCV
1.9-cm (3/4-in ) couplers: 170 L/min45 gpm
Front axle Front axle differential lock
Full-locking electrohydraulic
Front axle Type
Diameter: 120 x 3048 mm4.72 x 120 in
Tires Turning radius with brakes
Group 47 or Group 48 tires: 6.035 m19.8 ft
Tracks Track width
762 mm30 in
Steering Type
Heavy-duty steering pump: 130 cc7.9 cu in
Operator station Inner cab volume
3.27 m3115 cu ft
Operator station Cab glass area
6.64 m271.47 sq ft
Wheelbase
2947 mm116 in
Overall length
With front weights, excluding hitch and coupler: 6965 mm274.2 in
Drawbar clearance
483 mm19 in
