Description
John Deere GM40E Series
Specifications
Manufacturer
John Deere
Model
GM40E Series
Year
2024
Category
Mowers
Subcategory
Grooming Mowers
Weight Operational
GM4060E: 218.2 kg 481 lbGM4072E: 244 kg 538 lb
Weight Shipping
GM4060E: 254.9 kg 562 lbGM4072E: 279 kg 615 lb
Hitch Category
GM4060E: Category 1 and Limited Category 1GM4072E: Category 1
Deck Discharge
All GM40E: Rear

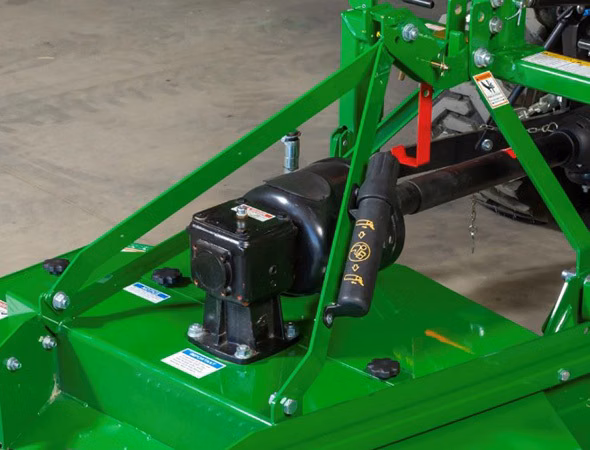

Gearbox Ratio
All GM40E: 1:1.9
Blade Quantity
All GM40E: Three
Blade Tip speed, average fpm
GM4060E: 5455.9 m/min17900 fpmGM4072E: 5486.4 m/min18000 fpm
Blade Spindles
QuantityAll GM40E: ThreeCompositionAll GM40E: Cast ironBearingAll GM40E: Ball bearing
Blade Composition
All GM40E: Heat treated alloy steel
Caster wheels Quantity
All GM40E: Four
Belts Type
All GM40E: One
Belts Quantity
All GM40E: Spring loaded idler
Set-up time Labor hours
All GM40E: 0.5
Tractor requirements PTO horsepower
GM4060E: 11.2-26.1 kW15-35 hpGM4072E: 18.6-26.1 kW25-35 hp
Tractor requirements PTO rpm
All GM40E: 540 rpm
Gearbox Mower deck horsepower
All GM40E: 26.1 kW35 hp
Overall machine width
GM4060E: 155.2 cm 61.1 in GM4072E: 185.7 cm 73.1 in
Cutting width
GM4060E: 152.4 cm 60 in GM4072E: 182.9 cm 72 in
Cutting height
All GM40E: 3.8-12.7 cm 1.5-5 in
Deck Thickness
All GM40E: 10 gauge3.416 mm0.1345 in
Blade Overlap
All GM40E: 3.18 cm 1.25 in
Blade Dimensions
All GM40E: 0.6x6.4 cm 0.25x2.5 in
