Description

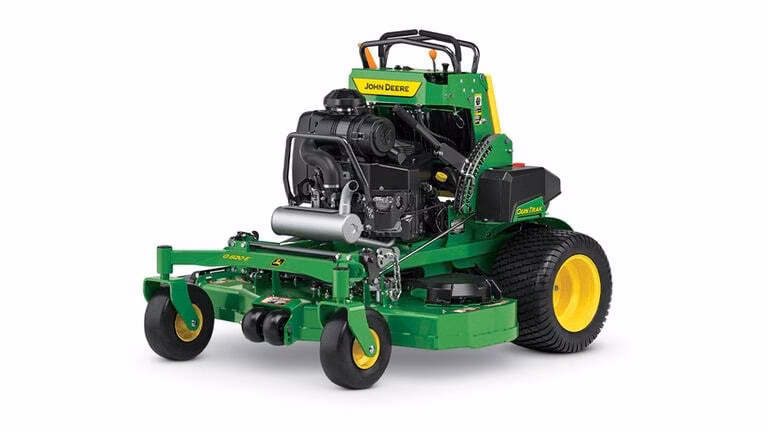

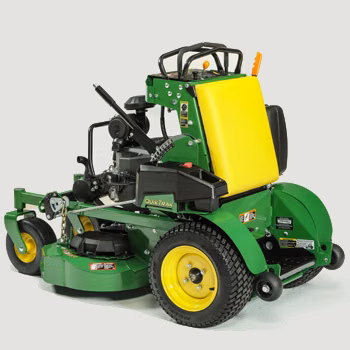

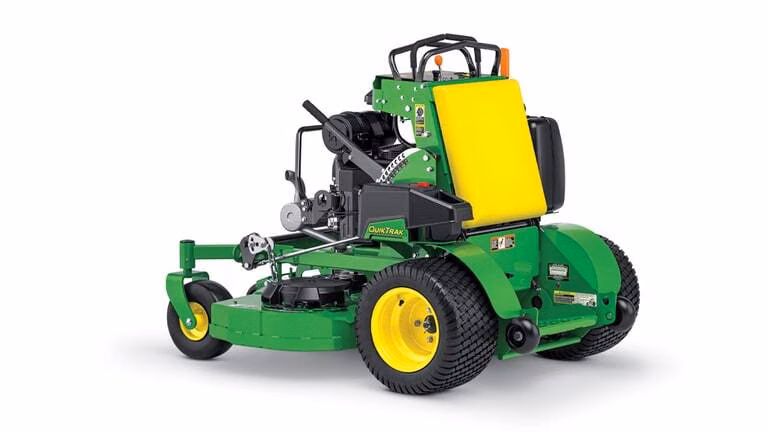

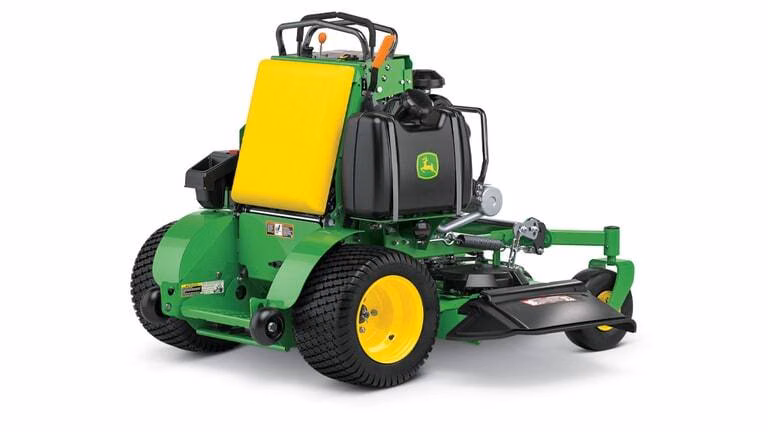

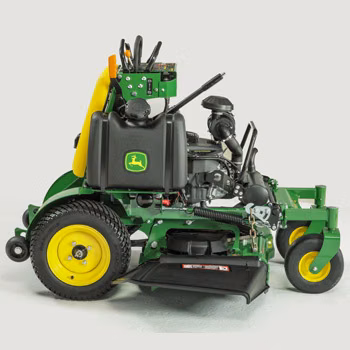

John Deere Q820E
Specifications
Manufacturer
John Deere
Model
Q820E
Year
2024
Category
Mowers
Subcategory
Commercial Mowers
Fuel system Fuel type
Gasoline
Fuel system Fuel tank capacity
5.6 U S gal21.2 L
Electrical system Charge system
At 3,600 rpm 20A
Electrical system Battery voltage
12 V
Electrical system Cold cranking amp
300 CCA
Electrical system Hour meter
Digital
Drivetrain Travel speed
Speed range0-8 mph0-12.9 km/hForwardInfinite, 0-8 mphInfinite, 0-12.9 km/hReverseInfinite, 0-3.5 mphInfinite, 0-5.6 km/h
Drivetrain Speed and direction control
Twin hand-controlled levers
Drivetrain Hydraulic capacity
With filter, dry, 5 qt4.7 L
Drivetrain Hydraulic oil cooler
Radiator core
Drivetrain Filter
Spin-on replaceable
Tires Drive wheels
18x10.5-10 pneumatic
Tires Load rating
4 PR
Brakes Dynamic braking
Dual hand-controlled levers
Brakes Park brake
Tire engagement
Brakes Park brake actuation
Hand lever
PTO Type
Electro-magnetic with brake, 125 lb-ft169 Nm
PTO Drive
V-belt
Mower decks Size
48-in (122-cm ) fabricated
Mower decks Deck construction
Fabricated steel, floating mount system
Mower decks Discharge
Side
Mower decks Cutting width
48-in (122-cm ) fabricated
Blades Blade tip speed
Approximately 18,000 fpm5486 m/min
Blades Number
Three
Wheels Caster wheel type
Flat free
Wheels Caster wheels
11x4-5
Wheels Front anti-scalp rollers
Double-captured center
Weight
800 lb363 kg
Engine Manufacturer/Model
FX730V
Engine Power
Gross at 3,600 rpm: 23.5 hp17.5 kW
Engine Displacement
44.3 cu in 726 cc
Engine Cylinders
Two, V-twin
Engine Crankcase capacity
With filter, 2.2 qt2.1 L
Engine Oil filter
Full flow, replaceable
Engine Lubrication
Full pressure
Engine Cooling
Forced air, with integrated clean out ports
Engine Air cleaner
Heavy-duty canister type with safety element
Drivetrain Transmission
Separate hydraulic pumps and motors
Drivetrain Hydraulic pumps
0.61 cu in 10 cc
Drivetrain Wheel motors
12 cu in 196 cc
Mower decks Deck thickness
7 gauge0.180 in 4.6 mm

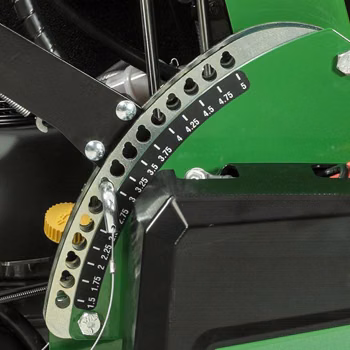

Mower decks Height-of-cut range
Increments0.25 in 0.64 cm 1.5-5 in 3.8-12.7 cm
Blades Thickness
0.25 in 0.64 cm
Length
59.75 in 151.8 cm
Width
With chute down, 62 in 157 cm
Height
46 in 117 cm
