Description

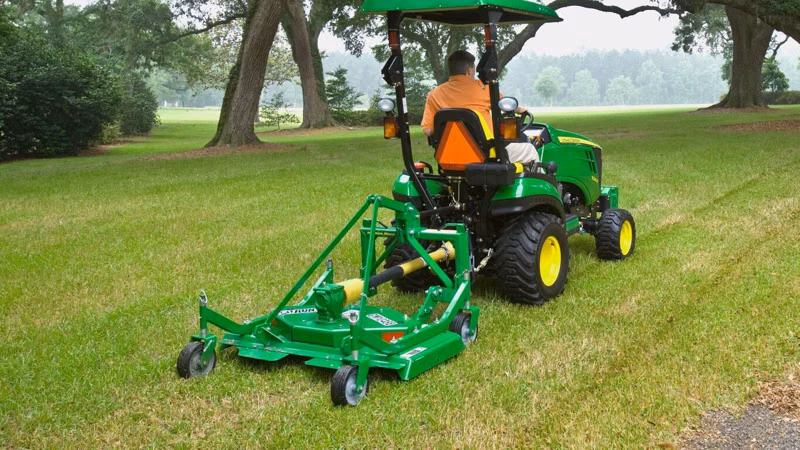

John Deere FM2015R
Specifications
Manufacturer
John Deere
Model
FM2015R
Year
2024
Category
Mowers
Subcategory
Grooming Mowers
Cutting width (ft/m)
15/4.57
Cutting height range (in /cm )
1 to 5/2.5 to 12.7
Cutting height adj
Spacer on caster
Blade dimensions (in /cm )
(6) 20.2 x 2.36 x .25/51.3 x 6 x .6(3) 24.53 x 2.36 x .25/62.3 x 6 x .6
Transport width (ft/m)
8.1/2.46
Transport tires (in /cm )
(2) 20.5 x 8 x 10/52.1 x 20.3 x 25.4
Transport length (ft/m)
12.2/3.71
Transport height (ft/m)
7.7/2.34
Overall width (ft/m)
15.2/4.62
Maximum overall length (ft/m)
13/3.96
Ctr deck cutting width (ft/m)
6/1.83
Wing deck cutting width (ft/m)
5/1.52
Tractor horsepower 4 (hp/ kw)
30 to 80/22.37 to 59.66
Splitter gearbox (hp4/ kw)
80/59.66
Mower deck gearbox (hp4/ kw)
50 (37.3)
Gearbox ratio
1:3.09 (spiral gears)
Tractor PTO speed
540 rpm
Hitch
Category 1 or 2, drawbar
Hitch adjustment
4 position
Driveline
1.38 in ASAE Cat 6
Drive type
Gearbox over, V-belts (2)
Deck thickness
8-gauge steel plate
Deck overlap (in /cm )
6/15.24 (adj to 9 in/22.9)
Deck lift cylinders (in /cm )
2.5 x 10/6.4 x 25.4 single acting
Caster wheels (in /cm )
(12) 11 x 4/27.9 x 10.2 pneumatic
Caster wheel bearings
Sealed roller bearings
Blade speed (fpm/mps)
16,863/85.66
Blade spindles
(9) cast iron
Blade spindle bearings
Shielded ball bearings (2 per spindle)
Blade composition
Heat-treated, alloy steel
Blade overlap (in /cm )
1.13/2.87
Belts
5VX, polyester/cogged
Belt adjustment
Single-point, slotted track adjustment, no idlers
Approx operating wt (lb/kg )
2,826/1,282
Operating tongue wt (lb/kg )
381/72.82
Transport tongue wt (lb/kg )
807/366.1
Mainframe construction (in /cm )
3.5/8.9 tubing
Ground pressure (psi/kPa)
9.6/66.19
