Description

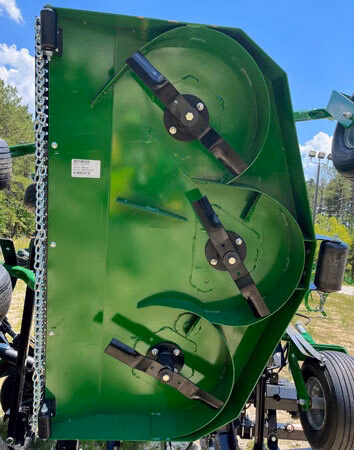

John Deere FM40 Series
Specifications
Manufacturer
John Deere
Model
FM40 Series
Year
2025
Category
Mowers
Subcategory
Grooming Mowers
Total
3.8 m (12.5 ft)
Center deck
1.4 m (4.5 ft)
Wing deck
1.4 m (4.5 ft)
Transport width
2.4 m (7.75 ft)
Overall width
3.8 m (12.583 ft)
Transport length
3.2 m (10.5 ft)
Max overall length
3.4 m (11.25 ft)
Transport height
1.8 m (5.9 ft)
Thickness, gauge
10 gauge 3.416 mm (0.1345 in)
Overlap
15.2 cm (6 in)
Lift cylinders
7.6x25.4 cm (3x10 in)
Wing travel, degrees
Up 20 degree (angle) and down 15 degree (angle)
Discharge type
Rear
Range, in (cm)
2.5-11.4 cm (1-4.5 in)
Overlap One
3.8 cm (1.5 in)
Dimensions, type 1
0.6x6.4 cm (0.25x2.5 in)
Transport
(2) 20X8-10
Size
25.4x10.2 cm (10x4 in)
Mainframe
10.2 cm (4 in)
Operating
923.1 kg (2,035 lb)
Shipping
950.3 kg (2,095 lb)
Operating tongue
145.1 kg (320 lb)
Transport tongue
231.3 kg (510 lb)
Ratio
1-to-2.5
Type
Gearbox over V-belt
Wing driveline
Category 3
Input driveline
Category 3 CV
Drawbar
Category 1
Clevis
Floating
Adjustment
Self-leveling, multi-position
Average tip speed
4,938 m/min (16,200 fpm)
Spindle quantity
Nine
Spindle type
Cast iron
Spindle bearings
Greaseable ball
Composition
Heat-treated alloy steel
Quantity
10
Type One
Solid
Bearings
Powder metal bushing
Pounds per square inch (kg per square centimeter)
5 pounds per square inch
Adjustment One
Spring-loaded idler
Markings
Slow-moving vehicle
Labor hours
1.25
