Description
John Deere Z515E, 48-in Deck
Specifications
Manufacturer
John Deere
Model
Z515E, 48-in Deck
Year
2025
Category
Mowers
Subcategory
Zero Turn Mowers
Seat back height
Medium back with armrests, 18 in 45.7 cm
Fore-aft adjustment
While seated, 3 in 7.6 cm
Mower cut height
1-4 in 2.5-10.2 cm
Cut height increments
0.25 in 0.64 cm
Width of cut Accel Deep mower deck
48 in 122 cm
Width of cut Accel Deep mower deck One
54 in 137 cm
Width of cut Accel Deep mower deck Two
60 in 152 cm
Mower deck material
10 gauge 0.135 in 3.4 mm
Wheelbase
49.2 in 125 cm
Overall length
76.9 in 195.3 cm
Width without mower
46.6 in 118.4 cm
Width with mower 48A
62.8 in 159.5 cm
Width with mower 54A
68.6 in 174.2 cm
Width with mower 60A
73.4 in 186.4 cm
Width with mower (deflector raised for storage) 48A
54 in 137 cm
Width with mower (deflector raised for storage) 54A
59.7 in 152 cm
Width with mower (deflector raised for storage) 60A
65.6 in 167 cm
Height
47.6 in 121 cm
Height With rollover protective structure (ROPS) up position
70.1 in 178 cm
Power
24 hp 17.9 kW

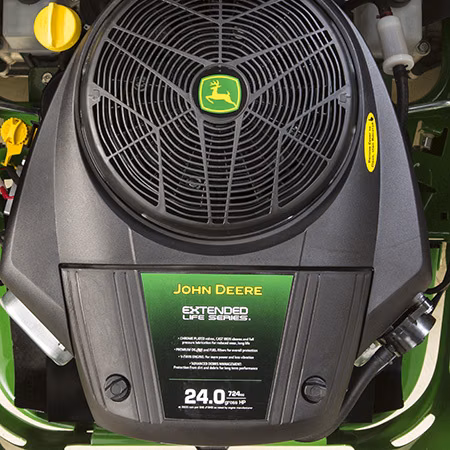

Model number
M44 Extended Life Series (ELS)
Displacement
44.2 cu in 724 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2 US qt 1.9 L
Type
Overhead valve
Battery
12 V 300 CCA
Choke/speed control
Separate levers
Cooling method
Air
Fuel tank capacity
4.5 US gal 17 L
Fuel gauge
Electric gauge and fuel level sight line
Dual hydros
Tuff Torq® TZT7-U with 1-in (2.5-cm) axles
Forward speed
0-8 mph 0-12.9 km/h
Reverse speed
0-4 mph 0-6.4 km/h
Speed and direction control
Twin levers
Control adjustment
2-height/9-fore-aft, 18 positions
Frame
Heavy-duty frame tubing
Primer/paint
E-coat/powder
Front caster tires
13x6.5-6
Front caster bearings
Sealed ball bearings

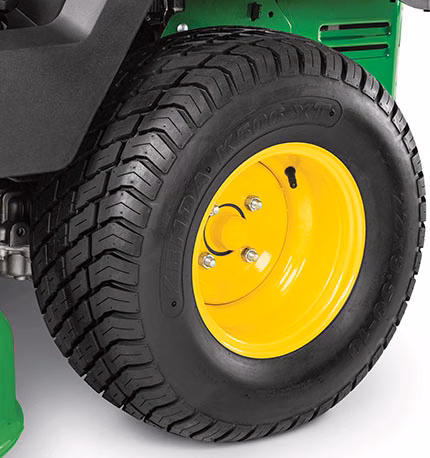

Drive tires
22x9.5-10
Seat suspension
Two springs
Lift system Type
Foot lift

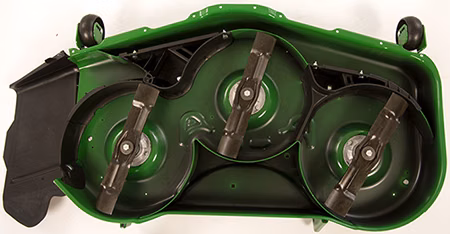

Mower deck Type
Side discharge

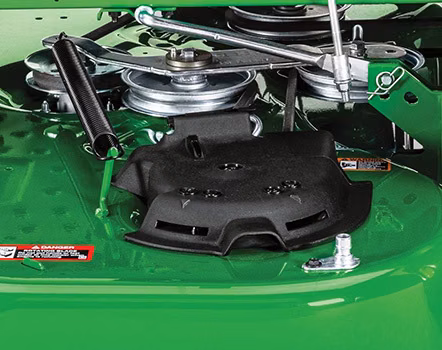

Mower drive system
V-belt
PTO Type
Electric, 105 lb-ft 142.4 Nm
Drive
V-belt
Weight With mower and fuel, 48A
768 lb 349 kg
Weight With mower and fuel, 54A
776 lb 353 kg
Weight With mower and fuel, 60A
784 lb 356 kg
Slope operating limit
15 degrees, 10 degrees with an MCS
