Description

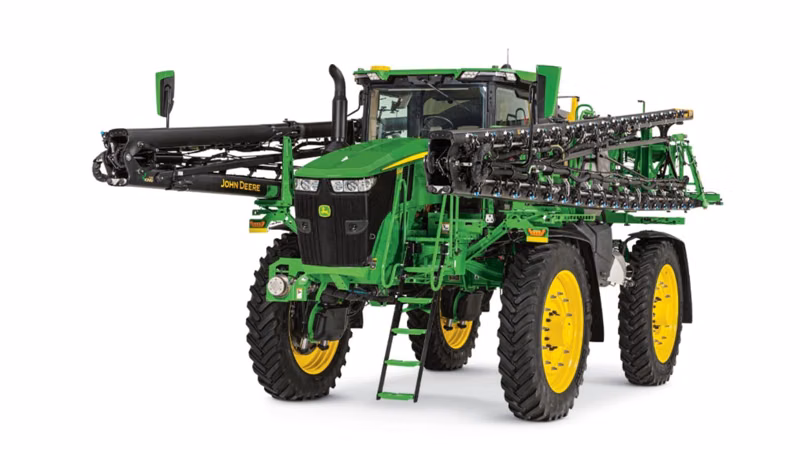

John Deere 616R
Specifications
Manufacturer
John Deere
Model
616R
Year
2025
Category
Sprayers
Subcategory
Sprayers
Rated engine power
280 kW 375 hp
Maximum engine power
309 kW 415 hp
Emissions
Final Tier 4 (FT4)
Number of cylinders
Six
Displacement
9.0 L 549 cu in
Alternator
250 amp
Fuel tank capacity
565 L 149.2 gal
Diesel exhaust fluid (DEF) tank capacity
29.5 L 7.8 gal
Capacity
6057 L 1600 gal
Tank material
Stainless steel
Rinse tank capacity
606 L 160 gal
Quick fill size
7.6 cm 3 in
Solution system control
Manual
Chemical eductor
Stainless steel
Chemical eductor capacity (size)
32 L 8.5 gal
Flow meter size
5.1 cm 2 in
Suction strainer
20 mesh
Pressure strainer
50 mesh
Boom strainer
80 mesh
Plumbing material
Stainless or polypropylene
Boom Material
Steel or carbon fiber
Ground height adjustment
50 to 245 cm 19.6 to 96.5 in
Breakaway width
Stainless-steel boom: 3.3 m 10.8 ft Carbon fiber boom: 3.7 m 12.1 ft
Boom sections
13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft
Drive
Full-time four-wheel drive (4WD)
Type
Hydrostatic
Shifting
Electrohydraulic
Hydraulic reservoir capacity
98.4 L 26 gal
Spray speed range
0 to 40.2 km/h 0 to 25 mph
Transport speed, maximum
56.3 km/h 35 mph
Suspension
Dual-strut independent wheel air-ride suspension
Crop clearance with standard tires
147.3 cm 58 in
Hydraulic tread adjust
Hydraulic
Wheel tread spacing
305 to 406.4 cm 120 to 160 in
Wheel base
430 cm 169.3 in
Turning radius
9.2 m 30.2 ft
Parking brake
Spring-engaged, hydraulically disengaged wet disk pack
Primary brakes
Hydrostatic
Ladder raise/lower
Hydraulic
Total weight with carbon fiber boom (empty solution tank)
16,631 kg 36,665 lb
Total weight (empty solution tank)
17,225 kg 37,974 lb
