Description
John Deere 3043D
Specifications
Manufacturer
John Deere
Model
3043D
Year
2025
Category
Tractors
Subcategory
Compact Tractors
Wheelbase
1574 mm 62 in
Front axle clearance Minimum
331 mm 13 in
Front axle clearance Maximum
353 mm 13.9 in
Turning radius with brakes
1.63 m 5.3 ft
Manufacturer
Yanmar®
Engine model
3TNV86CT-KJPT
Engine power (gross)
SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm
Power take-off (PTO) power
27.1 kW 36.3 hp
Rated engine speed
2800 rpm
Injection pump type
High pressure common rail direct injection
Aspiration
Turbocharged
Emissions compliance
Final Tier 4
Cylinders/displacement
3 / 1.57 L 3 / 95.8 cu in
Number of cylinders
Three
Cylinder liners
Cast-in-block
Bore and stroke
86 x 90 mm 3.39 x 3.54 in
Compression ratio
19.1:1
Lubrication
Pressurized
Cooling system
Liquid
Air cleaner
Dual element
Engine torque at rated speed
105.7 Nm 78 lb-ft
Fuel tank capacity
36.7 L 9.7 US gal
Implement hydraulics
22.4 L/min 5.9 gpm
Battery size
600 CCA
Alternator (12-V)
55 amp
Starter size
1.4 kW 1.9 hp
Fuel system Type
High pressure common rail direct injection
Transmission gear ranges
Four gears and two ranges
Final drive
Spur gear
Brakes
Wet disk
Steering
Power steering
Axle capacity Front
880 kg 1940 lb
Axle capacity Rear
1600 kg 3527 lb
Hydraulics Type
Open center
Pump rated output Steering
16.8 L/min 4.4 gpm
Pump rated output Implement
22.4 L/min 5.9 gpm 39.2 L/min 10.3 gpm
Pump type
Single gear
Maximum operating pressure
172 bar 2495 psi
Draft control sensing
Position control
3-point hitch Type
Category 1
Lift capacity, 24-in behind link arms
944 kg 2081.2 lb
Control
Mechanical
Clutch
Transmission
Brake (for mid and rear PTO)
Wet disk
Crankcase with filter
4.5 L 4.8 qt
Transmission and hydraulic system
33 L 34.8 qt
Final drive Type
Spur gear

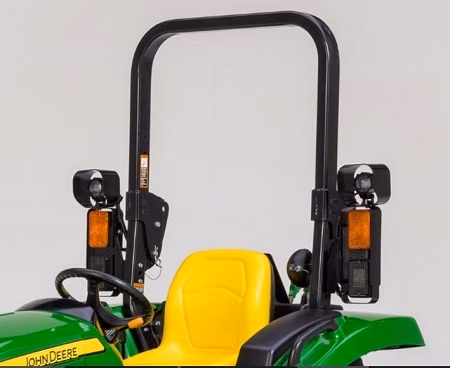

Rollover protective structure
TypeFoldableASABE S478
Platform - flat/straddle
Straddle
Gear shift location - console/floor
Right-hand side
Approximate shipping weight (open-station; cab)
OOS: 1288 kg 2840 lb
Front R1 Bar
7-14
Front R3 Turf
27x8.5-15
Front R4 Industrial
25x8.5-14
Rear R1 Bar
11.2-24
Rear R3 Turf
41x14-20
Rear R4 Industrial
15-19.5
