Description
John Deere S220
Specifications
Manufacturer
John Deere
Model
S220
Year
2025
Category
Lawn Mowers
Subcategory
Lawn Tractor
Fuel system Type
Gasoline
Fuel system Fuel delivery
Pulse pump and carburetor
Fuel system Fuel gauge
Mechanical, viewable from seat
Fuel system Fuel tank location
Rear
Fuel system Fuel tank capacity
2.4 U S gal9.1 L
Electrical system Battery
12 V300 CCA
Electrical system Charging system
Flywheel alternator, regulated, 14 amp
Transaxle Type
TLT200 hydrostatic, two-wheel drive
Transaxle Control
Side-by-side pedals
Transaxle Oil cooler
Fins and fan on transaxle
Transaxle Oil filter
Internal, not replaceable
Transaxle Forward speed
0-5.5 mph0-8.9 km/h
Transaxle Reverse speed
0-3.2 mph0-5.2 km/h
Transaxle Brakes
Internal wet disk
Chassis Frame
Full-length welded steel
Chassis Primer/paint
E-coat/powder

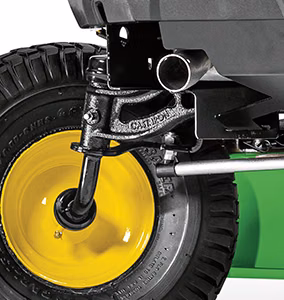

Chassis Front axle
Cast iron front axle, front wheel sealed ball bearings
Chassis Front tires
15x6-6
Chassis Rear tires
20x10-8
Chassis Hood material
Molded-in color material reduces sound, will not rust or dent
Chassis Fender deck material
Stamped steel
Chassis Storage
Storage tray with cover
Chassis Equipment mounting
CargO Mount™ system
Chassis Maximum towing capacity
500 lb227 kg
Steering Type
Sector and pinion with single drag link and tie rod
Seat Type
Two piece with open-back
Seat Seat suspension
Tilt, two rubber isolators
Lift system Type
Spring-assisted hand-grip lever

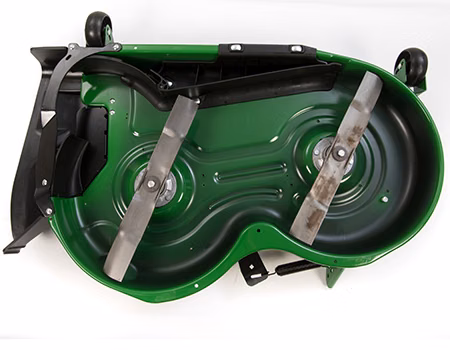

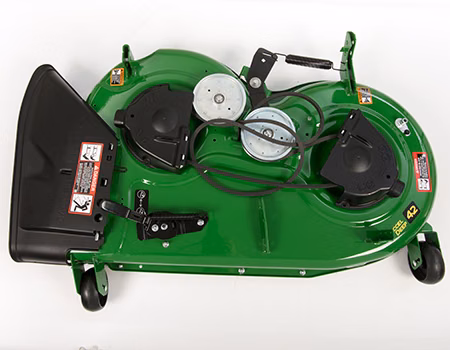

Mower deck Type
Side discharge
Mower deck Construction
Stamped steel deck shell
Mower deck Mower drive system
Manual power take-off (PTO) clutch

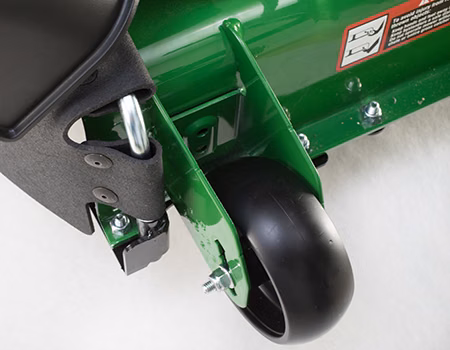

Mower deck Mower wheels
Two
Mower deck Mower wheel adjustment
One bolt
Mower deck Mower level adjustment
Easy-level deck
Mower attachability Type
Slide under tractor
Mower attachability Front draft arms
One spring clip
Mower attachability Rear draft arms
Two spring clips
Mower attachability Drive system
Single V-belt
Buyer's notes Notes
Molded-in color material reduces sound, will not rust or dentDurable primer and powder paint finishLarge, 14-in (36-cm ) steering wheel for more comfortable operation
Optional equipment Rear bagger
2-bag, 6.5 bu229 L
Optional equipment Sprayer
Tow-behind only, 15 U S gal56.8 LTow-behind only, 25 U S gal94.6 L
Optional equipment Spreader
Tow-behind only, 125 lb57.7 kg Tow-behind only, 175 lb79.4 kg
Optional equipment Front bumper
Included
Optional equipment Weather protection
Weather enclosure
Optional equipment Sun canopy
Sun canopy
Optional equipment Grass striping
Lawn striping kit
Optional equipment Tow-behind tools
16
Weight
481 lb218 kg
Engine Power
22 hp16.4 kW
Engine Displacement
44.2 cu in 724 cc
Engine Manufacturer/model
44J6 Cyclonic
Engine Type
Overhead valve, full-pressure lube, oil filter
Engine Cylinders
V-twin, cast-iron liners
Engine Governor
Mechanical
Engine Choke/speed control
Separate levers, automatic choke return
Engine Cooling method
Air
Engine Air cleaner
Pleated paper cartridge filter with poly pre-filter
Engine Oil change
No-tools oil drain with replaceable filter
Electrical system Engine starter
Bendix type
Fuel system Fuel fill opening
Center, 1.75 in 4.45 cm
Steering Turning radius
18 in 45.7 cm
Steering Uncut circle radius
24 in 61 cm
Seat Seat back height
15 in 38.1 cm
Seat Fore-aft adjustment
While seated, 5.5 in 14 cm
Lift system Mower cut height
13 positions, 1-4 in 2.5-10.2 cm
Lift system Cut height increments
0.25 in 0.64 cm
Mower deck Cutting width
Accel Deep mower deck, 42 in 107 cm
Mower deck Mower deck material
12 gauge0.105 in 2.7 mm
Optional equipment Front blade
46 in 116.8 cm
Optional equipment Snow blower
Two-stage, 44 in 111.8 cm
Height
45 in 1143 mm
Overall length
75.1 in 1908 mm
Wheelbase
48.9 in 1242 mm
Width with mower
50 in 1270 mm
Width with mower (deflector raised for storage)
49 in 1244 mm
Width without mower
40 in 1015 mm
