Description

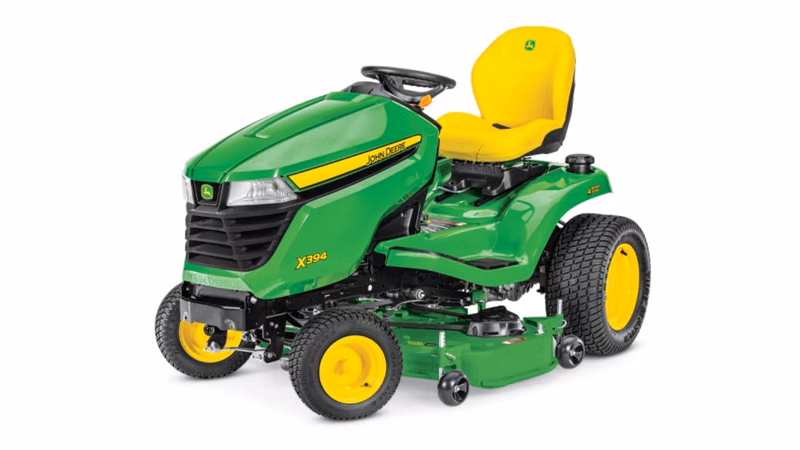

John Deere X394
Specifications
Manufacturer
John Deere
Model
X394
Year
2025
Category
Lawn Mowers
Subcategory
Lawn Tractor
Fuel system Type
Gasoline
Fuel system Fuel delivery
Pulse pump, carburetor

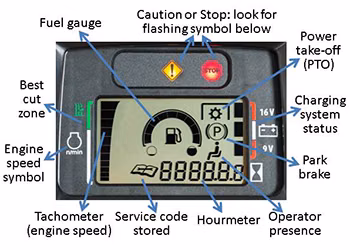

Fuel system Fuel gauge
Gauge on dash
Fuel system Fuel tank location
Rear
Fuel system Fuel tank capacity
3.3 U S gal12.5 L
Electrical system Battery
12 V340 CCA
Electrical system Charging system
Flywheel alternator, regulated, 12 amp
Transaxle Type
K58 hydrostatic integrated with transaxle
Transaxle Control
Twin Touch™ pedals
Transaxle Oil cooler
Fins and fan on transaxle
Transaxle Oil filter
Internal, not replaceable
Transaxle Forward speed
0-6.2 mph0-10 km/h
Transaxle Reverse speed
0-3.5 mph0-5.6 km/h
Transaxle Brakes
Internal wet disc
Chassis Frame
Welded heavy-duty
Chassis Primer/paint
E-coat/powder

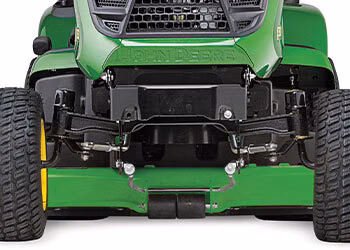

Chassis Front axle
Cast iron front axle, front wheel ball bearings
Chassis Spindle bushings
Metal, replaceable
Chassis Front tires
15x6.5-8
Chassis Rear tires
22x9.5-12

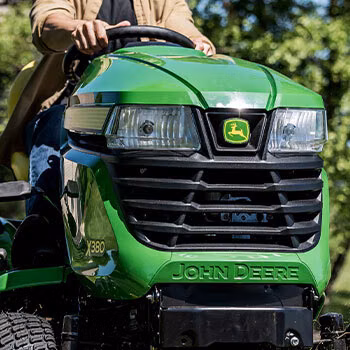

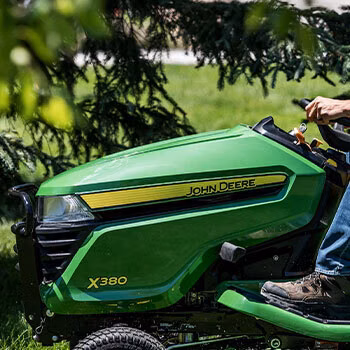

Chassis Hood material
Fully enclosed, molded-in color material reduces sound, will not rust or dent
Chassis Fender deck material
Stamped steel
Chassis Floor mats
Sure-grip rubber
Chassis Maximum towing capacity
600 lb272 kg
Seat Type
Cut-and-sewn high-back
Seat Seat suspension
Tilt, two coil springs, three-position no-tools adjustment for operator weight
Mower deck Type
Side discharge
Mower deck Construction
Forged steel deck shell
Mower deck Mower wheels
Four
Mower deck Mower wheel adjustment
Seven-position, spring-loaded pin
Mower deck Mower level adjustment
Exact Adjust ports and onboard deck-leveling gauge
Mower attachability Type
Roll under tractor

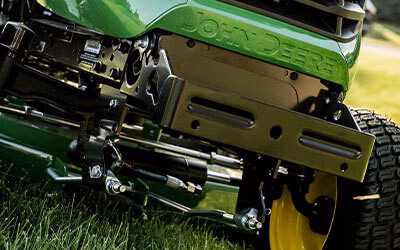

Mower attachability Front draft arms
Attached with spring pins at two points
Mower attachability Rear draft arms
Quick-pull pins
Mower attachability Drive system
Dual belt
Optional equipment Rear bagger
7, 19 bu247, 670 L
Optional equipment Sprayer
Tow-behind, 15 U S gal56.8 LTow-behind, 25 U S gal94.6 LMounted, 25 U S gal
Optional equipment Spreader
Tow-behind, 125 lb57.7 kg Tow-behind, 175 lb79.4 kg Mounted, 125 lb
Optional equipment Weather protection
Weather enclosure
Optional equipment Grass striping
Lawn striping kit
Optional equipment Tow-behind tools
16
Weight
Mower, no fuel: 755 lb342 kg
Engine Power
23 hp17.2 kW
Engine Displacement
44.3 cu in 726 cc
Engine Manufacturer/model
FR691V
Engine Type
Overhead valve, full-pressure lube, oil filter
Engine Cylinders
V-twin, cast-iron liners
Engine Governor
Mechanical
Engine Choke/speed control
Separate levers, automatic choke return
Engine Cooling method
Air
Engine Air cleaner
Dry, replaceable
Engine Oil change
No-tools oil drain with replaceable filter
Electrical system Engine starter
Bendix

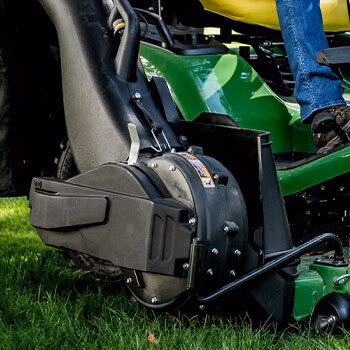

Optional equipment Powered material collection
Power Flow™ blower
Steering Type
Power, hydraulic
Lift system Type
Hydraulic
Buyer's notes Notes
Fully enclosed, molded-in color material reduces sound, will not rust or dent4-wheel steering for unmatched maneuverability and trimming capabilityPower steering with tilt steering wheel for exceptional maneuverability and comfortHydraulic power lift for superior convenience and ease of use
Fuel system Fuel fill opening
On left fender, 3 in 7.6 cm
Steering Steering wheel
Large, 14 in 35.6 cm
Steering Turning radius
19 in 48.3 cm
Steering Uncut circle radius
15 in 38 cm
Seat Seat back height
18 in 46 cm
Seat Fore-aft adjustment
While seated, ball bearing slide rail, 15-position, 6.6 in 17 cm
Lift system Mower cut height
13 positions, 1-4 in 2.5-10.2 cm
Lift system Cut height increments
0.25 in 0.64 cm
Mower deck Cutting width
Accel Deep™ mower deck, 48 in 122 cm
Mower deck Mower deck material
10 gauge0.135 in 3.4 mm

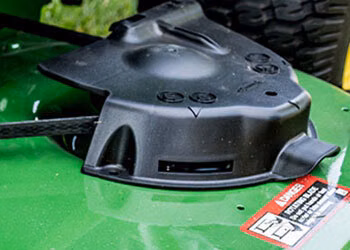

Mower deck Mower drive system
Electric power take-off (PTO) clutch, in-line belt
Optional equipment Front thatcher
38, 46, 54 in 96.5, 116.8, 137.2 cm
Optional equipment Front blade
44 in 111.8 cm

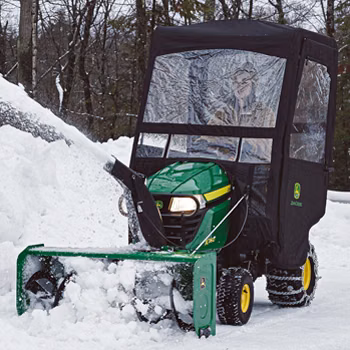

Optional equipment Snow blower
Two-stage, 44 in 111.8 cm
Optional equipment Tractor shovel
40 in 101.6 cm
Height
49 in 1244 mm
Overall length
73.9 in 1878 mm
Wheelbase
51.2 in 1300 mm
Width with mower
62.6 in 1590 mm
Width with mower (deflector raised for storage)
52.6 in 1335 mm
Width without mower
44.8 in 1138 mm
