Description
John Deere X570 54 in
Specifications
Manufacturer
John Deere
Model
X570 54 in
Year
2025
Category
Lawn Mowers
Subcategory
Lawn Tractor
Fuel system Type
Gasoline
Fuel system Fuel delivery
Pulse pump and carburetor
Fuel system Fuel gauge
Gauge on dash
Fuel system Fuel tank location
Rear
Fuel system Fuel tank capacity
4.4 U S gal16.7 L
Electrical system Battery
12 V340 CCA
Electrical system Charging system
Flywheel alternator, regulated, 12 amp
Electrical system Taillights or reflector
Reflectors
Transaxle Type
K72 hydrostatic integrated with transaxle
Transaxle Control
Twin Touch™ pedals
Transaxle Oil cooler
Fins and fan on transaxle
Transaxle Forward speed
0-7.2 mph0-11.6 km/h
Transaxle Reverse speed
0-5.2 mph0-8.4 km/h
Transaxle Brakes
Internal wet disc
Chassis Frame
Welded heavy-duty
Chassis Primer/paint
E-coat/powder
Chassis Front axle
Cast iron front axle, front wheel ball bearings
Chassis Spindle bushings
Metal, replaceable
Chassis Front tires
15x6.5-8
Chassis Rear tires
24x12-12 turf
Chassis Hood material
Fully enclosed, molded-in color material reduces sound, will not rust or dent
Chassis Fender deck material
Stamped steel
Chassis Floor mats
Sure-grip rubber
Chassis Fender handles/grips
Handles
Chassis Maximum towing capacity
800 lb363 kg
Steering Type
Manual, sector and pinion

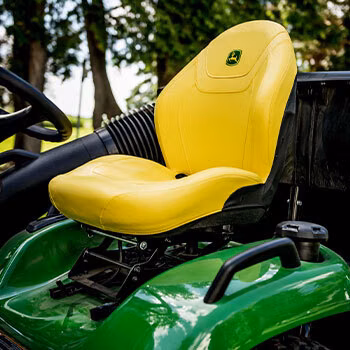

Seat Type
Open-back design with grasp

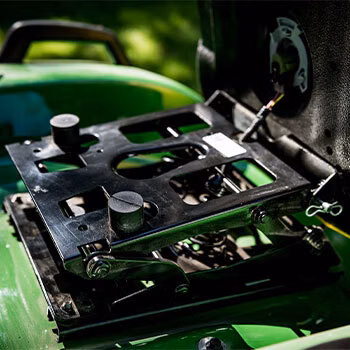

Seat Seat suspension
Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system Type
Foot pedal with adjustable spring assist
Mower deck Type
Side discharge
Mower deck Construction
Forged steel deck shell
Mower deck Mower wheels
Four
Mower deck Mower wheel adjustment
Seven-position, spring-loaded pin
Mower deck Mower level adjustment
Exact Adjust ports and onboard deck-leveling gauge
Mower attachability Type
Roll under tractor
Mower attachability Front draft arms
Attached with spring pins at two points
Mower attachability Rear draft arms
Quick-pull pins
Mower attachability Drive system
Dual belt
Buyer's notes Notes
Heavy-duty garden tractor transaxleSteering spindle bushings for long lifeBuilt-in rear weight bracket
Optional equipment Rear bagger
7, 14, 19 bu247, 493, 670 L
Optional equipment Sprayer
Tow-behind, 15, 25, 45 U S gal56.8, 94.6, 170.3 LMounted, 25 U S gal94.6 L
Optional equipment Spreader
125, 175 lb57.7, 79.4 kg Mounted, 125 lb57.7 kg
Optional equipment Weather protection
Weather enclosure
Optional equipment Grass striping
Lawn striping kit
Optional equipment Tow-behind tools
19
Weight
Mower, no fuel: 757 lb343 kg
Engine Power
24 hp17.9 kW
Engine Displacement
44.3 cu in 726 cc
Engine Manufacturer/model
FR730V
Engine Type
Overhead valve, full-pressure lube, oil filter
Engine Cylinders
V-twin, cast-iron liners
Engine Governor
Mechanical
Engine Choke/speed control
Separate levers, automatic choke return
Engine Cooling method
Air
Engine Air cleaner
Dry, replaceable
Engine Oil change
No-tools oil drain with replaceable filter
Electrical system Engine starter
Bendix
Optional equipment Powered material collection
Power Flow™ blower
Fuel system Fuel fill opening
On left fender, 3 in 7.6 cm
Steering Steering wheel
14 in 35.6 cm
Steering Turning radius
16 in 40.6 cm
Steering Uncut circle radius
20 in 51 cm
Seat Seat back height
15 in 38 cm
Seat Fore-aft adjustment
While seated, ball bearing slide rail, 15-position, 6.6 in 17 cm
Lift system Mower cut height
13 positions, 1-4 in 2.5-10.2 cm
Lift system Cut height increments
0.25 in 0.64 cm

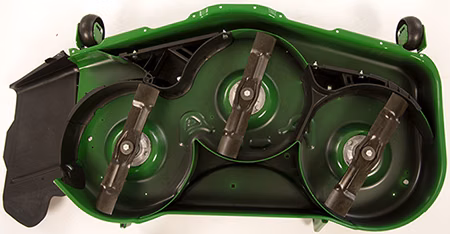

Mower deck Cutting width
Accel Deep™ mower deck, 54 in 137 cm
Mower deck Mower deck material
10 gauge0.135 in 3.4 mm
Mower deck Mower drive system
Electric power take-off (PTO) clutch, in-line belt
Optional equipment Front thatcher
38, 46, 54 in 96.5, 116.8, 137.2 cm

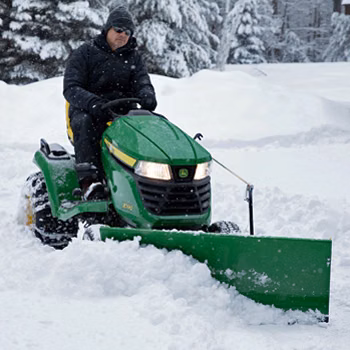

Optional equipment Front blade
48 in 121.9 cm
Optional equipment Snow blower
Two-stage, 44 in 111.8 cm
Optional equipment Rotary tiller
Mechanical, 30 in 76.2 cm
Optional equipment Tractor shovel
40 in 101.6 cm
Height
46.1 in 1171 mm
Overall length
74.6 in 1894 mm
Wheelbase
51.2 in 1300 mm
Width with mower
68.4 in 1737 mm
Width with mower (deflector raised for storage)
58.3 in 1481 mm
Width without mower
40.7 in 1034 mm
