Description

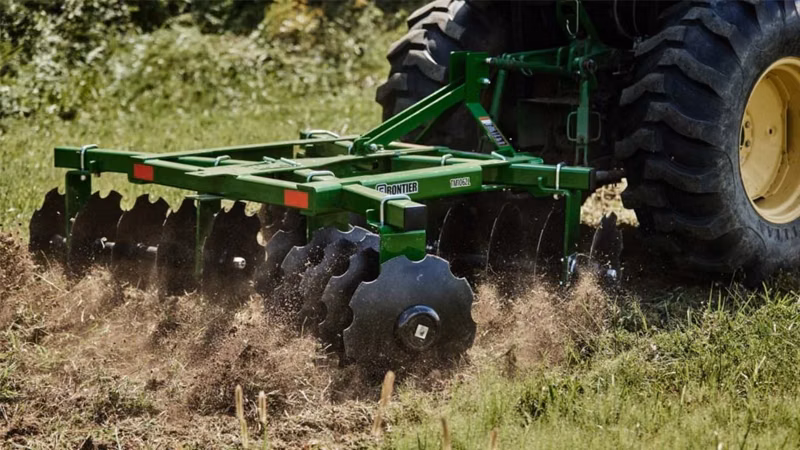

John Deere TM10L Series
Specifications
Manufacturer
John Deere
Model
TM10L Series
Year
2025
Category
Harrows
Subcategory
Tandem Disk Harrows
Engine HP Range (kW)
15-25 (11.2-18.6)
Number of Disks
12
Front Gang Blade Type
Notched
Rear Gang Blade Type
Notched
Operating Weight
437 lb
Shipping Weight
452 lb
Weight per Disc (Approx.), lb (kg)
36 (16.3)
Hitch Category
Limited Category I
Hitch Type
Clevis with Pin
Gang Axle Type
Square
Gangle Angles Adjustment
Tool-less
Gang / Frame Tubing
2x3 rectangle with end caps
Bearing type
Self Aligning Sealed Ball Bearing in Pre-Riveted Flange
Working Width
48 in
Overall Width, in (cm)
50 (127) in
Overall Height, in (cm)
34 (86.4) in
Overall Length, in (cm)
52 (130.1) in
Disk Spacing
7.5 in
Disk Thickness
3 mm (0.118 in)
Disk Diameter, in (cm)
16 (40.6)
Height to Hitch Pins, in (cm)
14 (35.6)
Diameter, in
1
Front Gang Angles
0,7,14,21 Degrees
Rear Gang Angles
0,5,12,19 Degrees
