Description

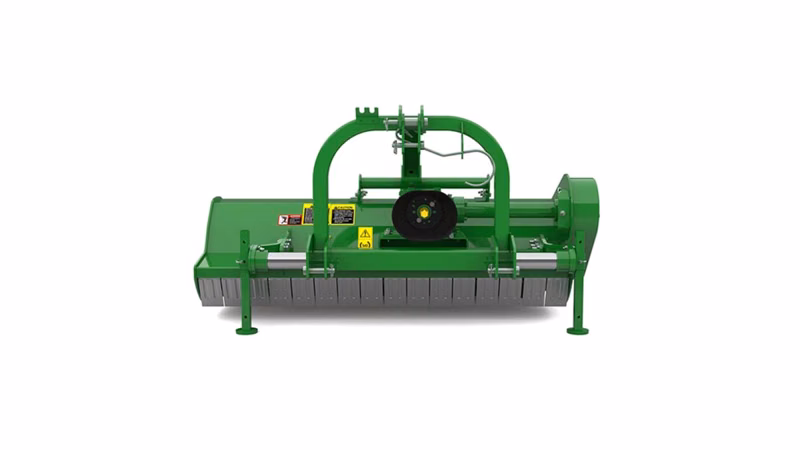

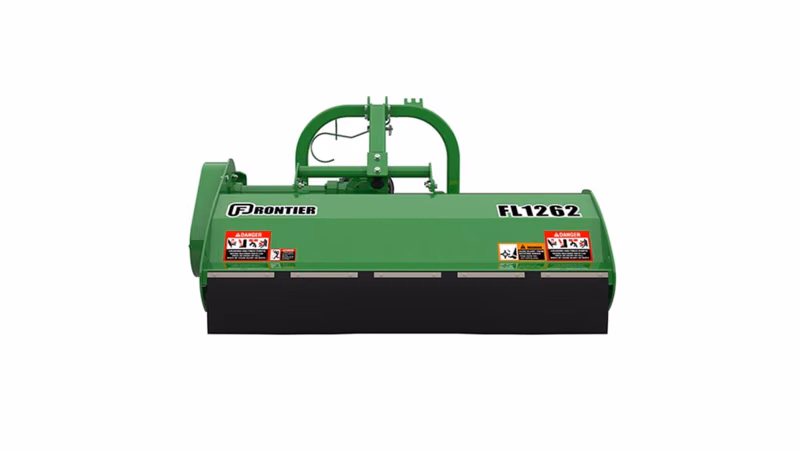

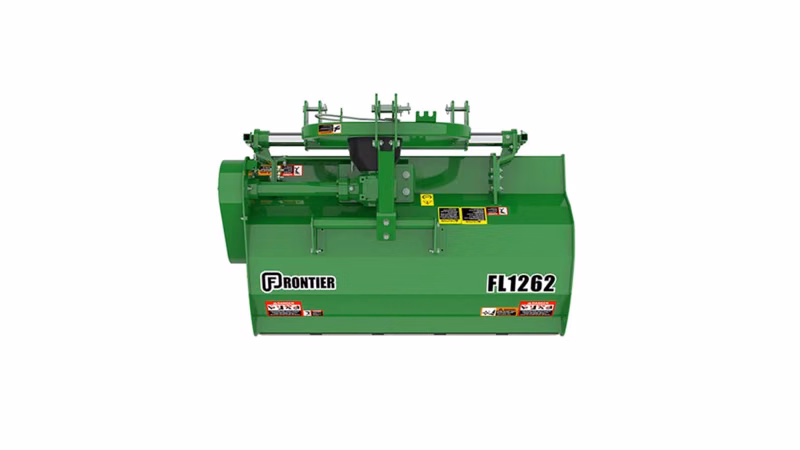

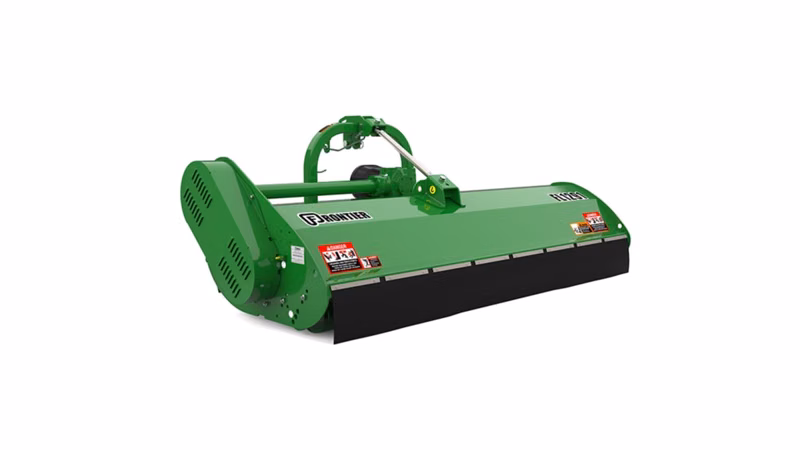

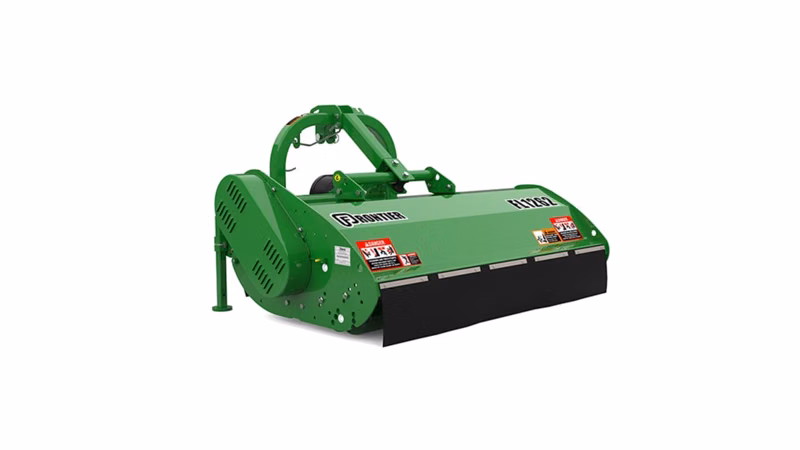

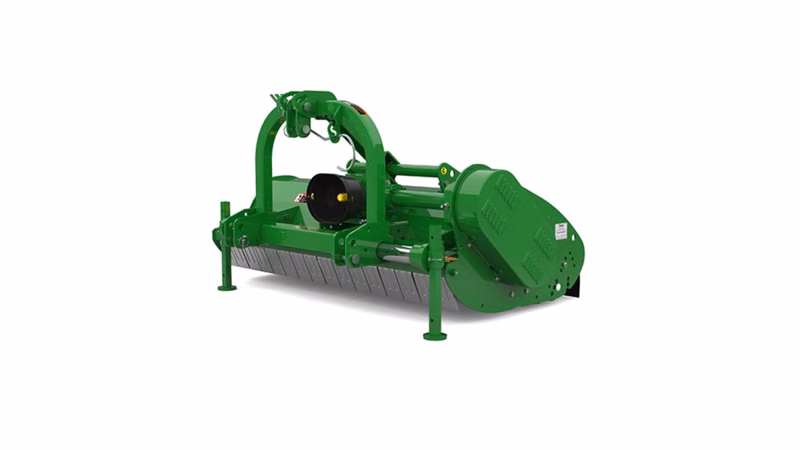

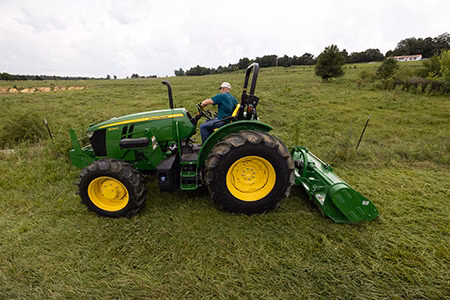

John Deere FL12 Series
Specifications
Manufacturer
John Deere
Model
FL12 Series
Year
2026
Category
Mower Implements
Subcategory
Flail Mowers
Rotor Speed (rpm)
2278 rpm
Gear Box Speed (rpm)
540 rpm
Capacity, Cutting (in)
1.5
Weight (lbs)
718 lbs
Tractor HP Required (min - max)
30 - 55 hp
Tractor Weight MINIMUM (lbs)
2600 lbs
COG (in)
25
Hitch Type
3-point
Hitch Category
1
Hitch Position
Centered
Offset Range
Left of Center (11-33) Right of Center (30-46)
Blade Type
Hammers (std); Y-Blade (service)
Number of Hammers
22
Type of Blades/ Hammers
18/20
Blade Tip Speed (ft/min)
8937
Rotor Bearing Type
SPHERICAL ROLLER 22207
Drive Belts
3 - SPB Lp=1320
Rear Roller Bearing Type
YAR 207-2FW/VA201

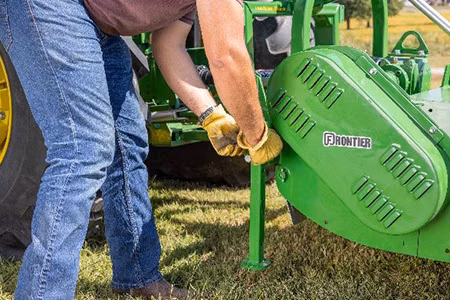

Belt adjustment
Screw adjustment
Height, Cutting (in)
0.98 /1.96 /2.99
Height, Overall (in)
36.5
Length, Overall (in)
44.3
Width, Cutting (in)
63
Width, Overall (in)
68.88
Rotor Diameter (in)
5
Rotor Thickness (mm)
8 mm
Rotor Work Diameter (in)
15
Gauge Roller Diameter (in)
5.5
Hydraulic Quick Coupler Size (in)
1/2
Frame Thickness (mm)
3 mm
Side Frame Thickness (mm)
5 mm
Roller Bearing Diameter (in)
2.835
Primary Pulley Diameter (mm)
225 mm
Secondary Pulley Diameter (mm)
160 mm
Hood Height (in)
18.89
Side Case Height (in)
24.01
PTO Yoke Height (in)
18.18
