Description

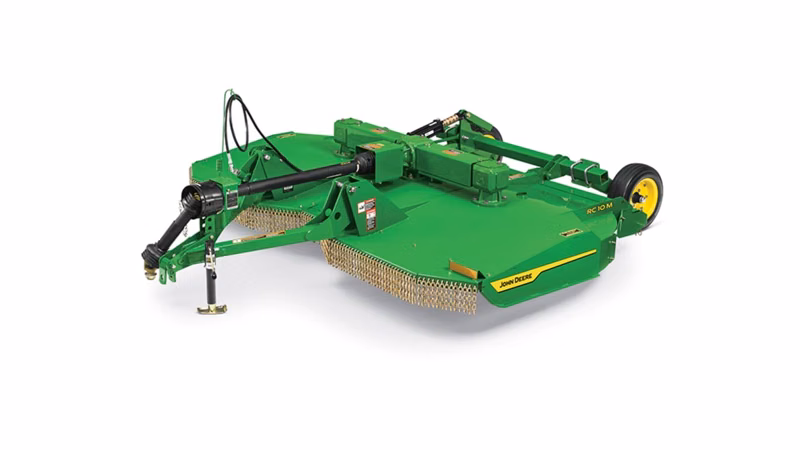

John Deere RC10M
Specifications
Manufacturer
John Deere
Model
RC10M
Year
2026
Category
Batwing Rotary Cutters
Subcategory
Rotary Cutters
Cutting width
3,200 mm (126 in)
Cutting height
25 to 305 mm (1 to 12 in)
Cutting capacity
50 mm (2 in)
Cutting chamber Depth
216 mm (8.5 in)
Transport width
3,280 mm (129 in)
Overall width
3,280 mm (129 in)
Overall length
4,040 mm (159 in)
Deck shape
Domed
Deck type
Double decker
Deck thickness
Upper 3 (11) mm 0.125 (11) in (Lower 3 (11) mm 0.125 (11) in)
Side skirt thickness
4.5 (7) mm 0.177 (7) in
Thickness
13 mm (0.5 in)
Width
102 mm (4 in)
Overlap
75 mm (2.95 in)
Type
Suction
Tractor PTO HP range
Minimum PTO; pull-type, semi-mount, semi-mount hydraulic offset 30 kW 40 hp (Minimum PTO; lift-type 45 kW 60 hp)
Tractor PTO
540 rpm
HP rating
Transfer Continuous 89 kW 120 hp (Peak 97 kW 130 hp) (Outer Continuous 56 kW 75 hp Peak 75 kW 100 hp)
Type
Pull-type, lift-type, semi-mount, semi-mount hydraulic offset (Pull-type has standard 10,000 lb; 4,536 kg, safety tow chain)
Category
2, 3, 3N
Approx weight
960 kg (2113 lb)
Size
Main ASAE Category 4
Protection
Main Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline Connecting Shock absorbing shafts
Number
3
Blade tip speed
540 RPM (4,797 m/min) (15,739 fpm) (288 km/h) (179 mph)
Material flow system
Max flow
Holder
Type Round stump jumper
Type One
Laminated (Pull-type has severe-duty Ag tire option)
