Description
John Deere S170
Specifications
Manufacturer
John Deere
Model
S170
Year
2026
Category
Lawn Mowers
Subcategory
Lawn Tractor
Fuel system Type
Gasoline
Fuel system Fuel delivery
Pulse pump and carburetor
Fuel system Fuel gauge
Easy-read on dash
Fuel system Fuel tank location
Rear
Fuel system Fuel tank capacity
2.4 U S gal9.1 L
Electrical system Battery
12 V300 CCA
Electrical system Charging system
Regulated, 14 amp
Electrical system Taillights or reflector
Reflectors
Transaxle Type
Hydrostatic, 2-wheel drive
Transaxle Control
Side-by-side pedals
Transaxle Oil cooler
Fins and fan on transaxle
Transaxle Forward speed
0-5.5 mph0-8.9 km/h
Transaxle Reverse speed
0-3.2 mph0-5.2 km/h
Transaxle Brakes
Internal wet disk
Chassis Frame
Full-length welded steel
Chassis Primer/paint
E-coat/powder
Chassis Front axle
Cast-iron front axle, powdered-metal front wheel bushings
Chassis Front tires
16x6.5-8
Chassis Rear tires
22x9.5-12
Chassis Hood material
Molded-in color material reduces sound, will not rust or dent
Chassis Fender deck material
Stamped steel
Chassis Storage
Storage tray with cover
Chassis Fender handles/grips
Handgrips
Chassis Equipment mounting
CargO Mount™ system
Chassis Maximum towing capacity
500 lb227 kg
Steering Type
Sector and pinion with single drag link and tie rod
Seat Type
One piece with lumbar adjustment
Seat Seat suspension
Tilt, two coil springs
Lift system Type
Spring-assisted hand-grip lever
Mower deck Type
Side discharge
Mower deck Construction
Stamped steel deck shell
Mower deck Mower drive system
Electric power take-off (PTO) clutch
Mower deck Mower wheels
Four
Mower deck Mower wheel adjustment
One bolt
Mower deck Mower level adjustment
Easy-level deck
Mower attachability Type
Slide under tractor
Mower attachability Front draft arms
One spring clip
Mower attachability Rear draft arms
Two spring clips
Mower attachability Drive system
Single belt
Buyer's notes Notes
Molded-in color material reduces sound, will not rust or dentDurable primer and powder paint finishLarge, 14-in (36-cm ) steering wheel for more comfortable operationJohn Deere Easy Change 30-second oil change system
Optional equipment Rear bagger
2-bag, 6.5 bu229 L
Optional equipment Mulching system
Mulch cover
Optional equipment Sprayer
Tow-behind, 15 U S gal56.8 LMounted, 15 U S galTow-behind only, 25 U S gal94.6 L
Optional equipment Spreader
Tow-behind only, 125-175 lb57.7-80 kg
Optional equipment Front bumper
Included
Optional equipment Weather protection
Weather enclosure
Optional equipment Sun canopy
Sun canopy
Optional equipment Grass striping
Lawn striping kit
Optional equipment Tow-behind tools
16
Weight
Mower, no fuel, 503 lb288 kg
Engine Power
24 hp17.9 kW
Engine Displacement
44.2 cu in 724 cc
Engine Manufacturer/model
44U877 (M44)
Engine Type
Overhead valve, full-pressure lube, oil filter
Engine Cylinders
V-twin - extended life series (ELS)
Engine Governor
Mechanical
Engine Choke/speed control
Single lever with spring-return on choke
Engine Cooling method
Air
Engine Air cleaner
Cartridge with prefilter
Engine Oil change
John Deere Easy Change 30-second oil change system
Electrical system Engine starter
Bendix type
Fuel system Fuel fill opening
Center, 1.75 in 4.45 cm
Steering Steering wheel
Deluxe, diameter - 14 in 35.6 cm
Steering Turning radius
18 in 45.7 cm
Steering Uncut circle radius
20 in 50.8 cm
Seat Seat back height
15 in 38 cm
Seat Fore-aft adjustment
While seated, 5.5 in 14 cm
Lift system Mower cut height
13 positions, 1-4 in 2.5-10.2 cm
Lift system Cut height increments
0.25 in 0.64 cm
Mower deck Cutting width
Edge™ mower deck, 48 in 122 cm
Mower deck Mower deck material
Steel, 12 gauge0.105 in 2.7 mm

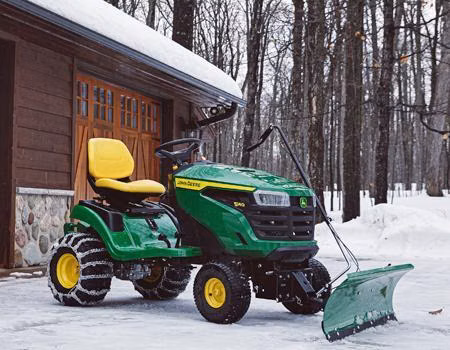

Optional equipment Front blade
46 in 116.8 cm
Optional equipment Snow blower
Two-stage, 44 in 111.8 cm
Height
45.7 in 1160 mm
Overall length
75.3 in 1913 mm
Wheelbase
48.9 in 1242 mm
Width with mower
60.8 in 1544 mm
Width with mower (deflector raised for storage)
51.7 in 1313 mm
Width without mower
39.2 in 996 mm
