Description
John Deere X330 48 in
Specifications
Manufacturer
John Deere
Model
X330 48 in
Year
2026
Category
Lawn Mowers
Subcategory
Lawn Tractor
Fuel system Type
Gasoline
Fuel system Fuel delivery
Pulse pump, carburetor

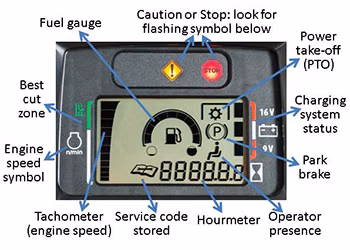

Fuel system Fuel gauge
Gauge on dash
Fuel system Fuel tank location
Rear
Fuel system Fuel tank capacity
3.3 U S gal12.5 L
Electrical system Battery
12 V340 CCA
Electrical system Charging system
Flywheel alternator, regulated, 14 amp
Transaxle Type
K46 hydrostatic integrated with transaxle
Transaxle Control
Twin Touch™ pedals
Transaxle Oil cooler
Fins and fan on transaxle
Transaxle Oil filter
Internal, not replaceable
Transaxle Forward speed
0-5.5 mph0-8.9 km/h
Transaxle Reverse speed
0-4 mph0-6.4 km/h
Transaxle Brakes
Internal wet disc
Chassis Frame
Welded heavy-duty
Chassis Primer/paint
E-coat/powder
Chassis Front axle
Cast iron front axle, front wheel ball bearings
Chassis Front tires
15x6-6
Chassis Rear tires
20x10-8
Chassis Hood material
Fully enclosed, molded-in color material reduces sound, will not rust or dent
Chassis Fender deck material
Stamped steel
Chassis Floor mats
Sure-grip rubber
Chassis Maximum towing capacity
600 lb272 kg
Steering Type
Manual, sector and pinion
Seat Type
Open-back design with grasp
Seat Seat suspension
Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system Type
Foot pedal with adjustable spring assist

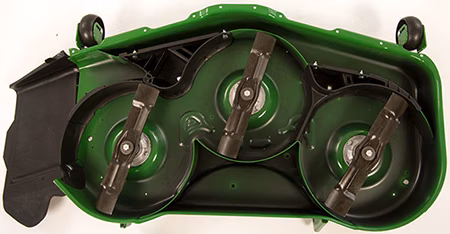

Mower deck Type
Side discharge
Mower deck Construction
Forged steel deck shell

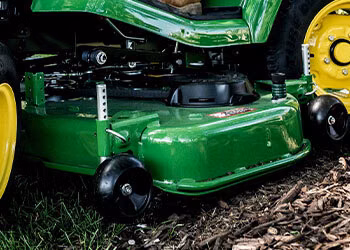

Mower deck Mower wheels
Four
Mower deck Mower wheel adjustment
Seven-position, spring-loaded pin

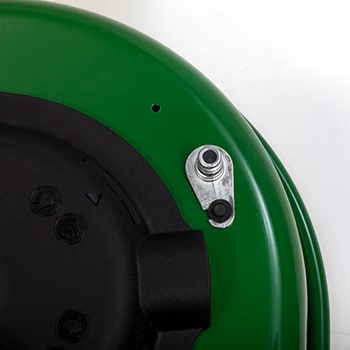

Mower deck Mower level adjustment
Exact Adjust ports and onboard deck-leveling gauge
Mower attachability Type
Roll under tractor
Mower attachability Front draft arms
Attached with spring pins at two points
Mower attachability Rear draft arms
Quick-pull pins
Mower attachability Drive system
Dual belt
Buyer's notes Notes
Fully enclosed, molded-in color material reduces sound, will not rust or dentDurable E-coat primer and powder-paint finish
Optional equipment Rear bagger
2-bag, 7 bu247 L
Optional equipment Sprayer
Tow-behind, 15 U S gal56.8 LTow-behind, 25 U S gal94.6 LMounted, 25 U S gal
Optional equipment Spreader
Tow-behind, 125 lb57.7 kg Tow-behind, 175 lb79.4 kg Mounted 125 lb
Optional equipment Weather protection
Weather enclosure
Optional equipment Grass striping
Lawn striping kit
Optional equipment Tow-behind tools
16
Weight
Mower, no fuel: 606 lb275 kg
Engine Power
22 hp16.4 kW
Engine Displacement
44.2 cu in 724 cc
Engine Manufacturer/model
44J6 Cyclonic
Engine Type
Overhead valve, full-pressure lube, oil filter
Engine Cylinders
V-twin, cast-iron liners
Engine Governor
Mechanical
Engine Choke/speed control
Separate levers, automatic choke return
Engine Cooling method
Air
Engine Air cleaner
Dry, replaceable
Engine Oil change
No-tools oil drain hose with replaceable filter
Electrical system Engine starter
Bendix
Optional equipment Powered material collection
Power Flow™ blower
Fuel system Fuel fill opening
On left fender, 3 in 7.6 cm
Steering Steering wheel
Large, 14 in 35.6 cm
Steering Turning radius
16 in 40.6 cm
Steering Uncut circle radius
21 in 53.3 cm
Seat Seat back height
15 in 38 cm
Seat Fore-aft adjustment
While seated, ball bearing slide rail, 15-position, 6.6 in 17 cm
Lift system Mower cut height
13 positions, 1-4 in 2.5-10.2 cm
Lift system Cut height increments
0.25 in 0.64 cm
Mower deck Cutting width
Accel Deep™ mower deck, 48 in 122 cm
Mower deck Mower deck material
10 gauge0.135 in 3.4 mm
Mower deck Mower drive system
Electric power take-off (PTO) clutch, in-line belt
Optional equipment Front thatcher
38, 46, 54 in 96.5, 116.8, 137.2 cm

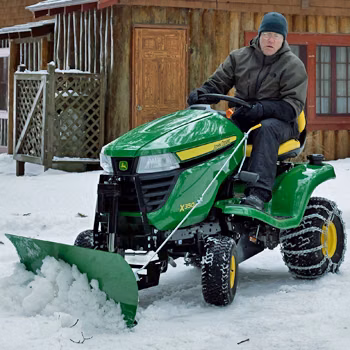

Optional equipment Front blade
44 in 111.8 cm

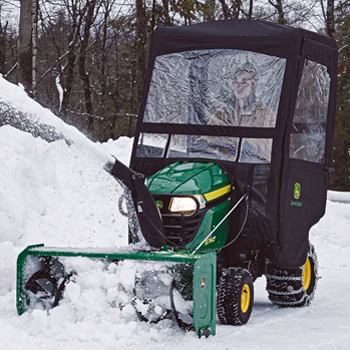

Optional equipment Snow blower
Two-stage, 44 in 111.8 cm
Optional equipment Tractor shovel
40 in 101.6 cm
Height
46.1 in 1171 mm
Overall length
71.5 in 1817 mm
Wheelbase
49.4 in 1255 mm
Width with mower
62.6 in 1590 mm
Width with mower (deflector raised for storage)
52.6 in 1335 mm
Width without mower
38 in 964 mm
