Description

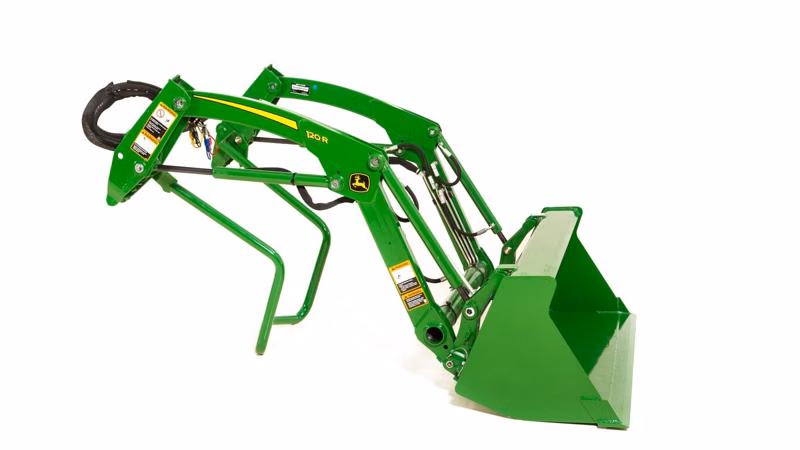

John Deere 120R
Specifications
Manufacturer
John Deere
Model
120R
Year
2026
Category
Loaders
Subcategory
Front End Loaders For Tractors
Wheelbase
1600 mm
Dimensions Maximum lift height (A)
1828 mm 72 in
Dimensions At full height - bucket level(B)
1666 mm 65.6 in
Dimensions At full height - bucket dumped (C)
1304 mm 51.3 in
Digging depth (H)
-86 mm -3.4 in
Reach At maximum height (D)
698 mm 27.5 in
Reach At ground level - bucket level (F)
1288 mm 50.7 in
Overall length (I+F), ft (m)
2888 mm 113.7 in
Tractor Model
2025R/2026R
Front tire
23x8.50-12 6PR R4 CL
Rear tire
12.00-16.5 6PR R4 CL
Pump capacity
26.5 L/min
Rated pressure
2146 psi
Base weight
283.88 kg
Bucket used
Materials 1350 mm
Bucket weight
83 kg 183 lb
Lift capacity at full height Measured at pivot (U)
364 kg 803 lb
Lift capacity at full height Measured at 800 mm ahead of pivot (V)
251 kg 553 lb
Lift capacity at 59 in (1500 mm) Measured at pivot (W)
434 kg 957 lb
Lift capacity at 59 in (1500 mm) Measured at 500 mm ahead of pivot (X)
312 kg 688 lb
Boom breakout force Measured at pivot (Y)
890 kgf 1963 lbf
Boom breakout force Measured at 500 mm ahead of pivot (Z)
606 kgf 1335 lbf
Bucket rollback force capacity At maximum height (VV)
648 kgf 1428 lbf
Bucket rollback force capacity At 59-in (1500-mm) lift height (XX)
777 kgf 1713 lbf
Bucket rollback force capacity At ground-level line (ZZ)
753 kgf 1659 lbf
Bucket angle Dump angle, degrees €
-40.5 degree (angle)
Bucket angle Rollback angle, degrees (G)
30.08 degree (angle)
Bucket angle Dump angle, ground
-115.4 degree (angle)
Cycle times Loader raise, seconds
3.7 seconds
Cycle times Loader lower, seconds
2.6 seconds
Cycle times Bucket dump, seconds
4.1 seconds
Cycle times Bucket rollback, seconds
2.5 seconds
