Description

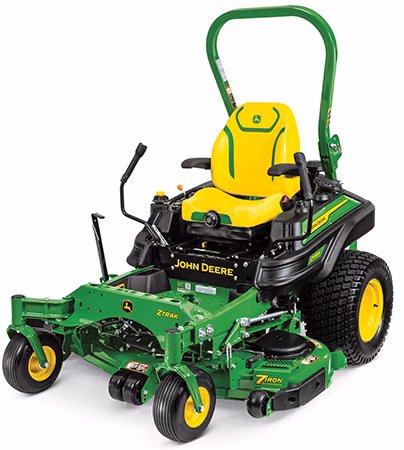

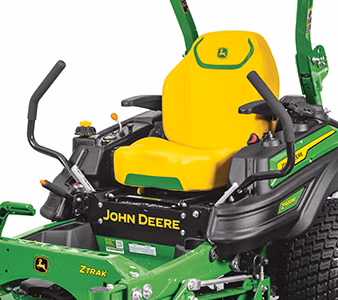

John Deere Z920M
Specifications
Manufacturer
John Deere
Model
Z920M
Year
2026
Category
Mowers
Subcategory
Commercial Mowers
Fuel system Fuel type
Gasoline
Fuel system Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U S gal/hr4.2-7.2 L/hr
Fuel system Fuel tank capacity
11.5 U S gal43.5 L
Electrical system Charge system
30 amp
Electrical system Battery voltage
12 V
Electrical system Cold cranking amp
300 amp
Electrical system Operator presence starting system
Brake-N-Go (hand)
Drivetrain Transmission
Hydrostatic
Drivetrain Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
Drivetrain Travel speed
Speed range0-12 mph0-19.3 km/hForward0-12 mph0-19.3 km/hReverse0-4.5 mph0-7.2 km/h
Drivetrain Speed and direction control
Twin levers
Drivetrain Hydraulic capacity
5.9 U S qt5.6 L
Drivetrain Filter
Internal, replaceable
Tires Drive wheels
24x12-12
Tires Load rating
4 PR
Brakes Dynamic braking
Twin levers
Brakes Park brake actuation
Hand brake
PTO Type
Electro-magnetic, 200 lb-ft271 Nm
PTO Drive
V-belt
Mower decks Size
48-in (122-cm ) 7Iron™ PRO side-discharge54-in (137-cm ) 7Iron™ PRO side-discharge60-in (152-cm ) 7Iron™ PRO side-discharge
Mower decks Deck construction
7-gauge, 0.179-in (4.6-mm) one-piece forged steel
Blades Length
Varies by deck size
Blades Blade tip speed
7Iron PRO: Approximately 18,500 fpm
Blades Number
Three
Wheels Caster wheel type
Flat free
Wheels Caster wheels
13x6.5-6
Wheels Front anti-scalp rollers
RH, center, LH
Weight
1,228 to 1,313 lb557 to 596 kg
Operation Slope operating limit
20 degrees (10 degrees with material collection system installed)
Engine Manufacturer/Model
FX730V
Engine Power
Gross at 3,600 rpm23.5 hp17.5 kW
Engine Displacement
44.3 cu in 726 cc
Engine Cylinders
Two
Engine Crankcase capacity
With filter, 2 U S qt1.9 L
Engine Oil filter
Full flow, replaceable
Engine Lubrication
Full pressure
Engine Cooling
Air
Brakes Park brake
Internal wet disk integrated in the transmission
Mower decks Height-of-cut range
Increments0.25 in 0.64 cm 1-5.5 in 2.54-14 cm
Mower decks Cutting width
48, 54, 60 in 122, 137, 152 cm
Blades Thickness
0.25 in 0.64 cm
Length
84 in 213 cm
Width
With chute down, 62, 68, 74 in 157, 173, 188 cm
Height
With ROPS up, 73 in 185 cm With ROPS down, 47 in 119 cm
