Description
John Deere Z530M, 48-in Deck
Specifications
Manufacturer
John Deere
Model
Z530M, 48-in Deck
Year
2026
Category
Mowers
Subcategory
Zero Turn Mowers
Wheelbase
49.2 in 1250 mm
Overall length
76.9 in 1953 mm
Width without mower
46.6 in 1184 mm
Width with mower 48A: 62.8 in
1595 mm
Width with mower 54A: 68.6 in
1742 mm
Width with mower 60A: 73.4 in
1864 mm
Width with mower (deflector raised for storage) 48A: 53.9 in
1370 mm
Width with mower (deflector raised for storage) 54A: 59.7 in
1517 mm
Width with mower (deflector raised for storage) 60A: 65.6 in
1864 mm
Height ROPS in folded position: 48.6 in
1235 mm
Height ROPS in raised position: 71.1 in
1806 mm
Mower cut height
1-4 in 2.5-10.2 cm
Cut height increments
0.25 in 0.64 cm
Width of cut Accel Deep mower deck, 48 in
122 cm
Width of cut Accel Deep mower deck, 54 in
137 cm
Width of cut Accel Deep mower deck, 60 in
152 cm
Mower deck material
10 gauge 0.135 in 3.4 mm
Seat back height
High back with armrests and ComfortGlide™, 20 in 50.8 cm
Fore-aft adjustment
While seated, 3 in 7.6 cm

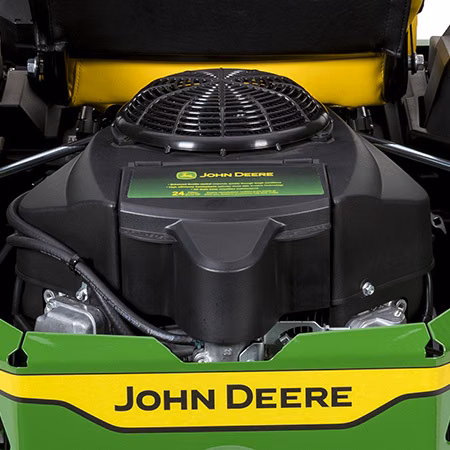

Power
24 hp 17.9 kW
Model number
FR730V
Displacement
44.3 cu in 726 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2 US qt 1.9 L
Type
Overhead valve
Battery
12 V300 CCA
Choke/speed control
Separate control levers
Cooling method
Air
Fuel tank capacity
4.5 US gal 17 L
Fuel gauge
Electric gauge and fuel level sight line

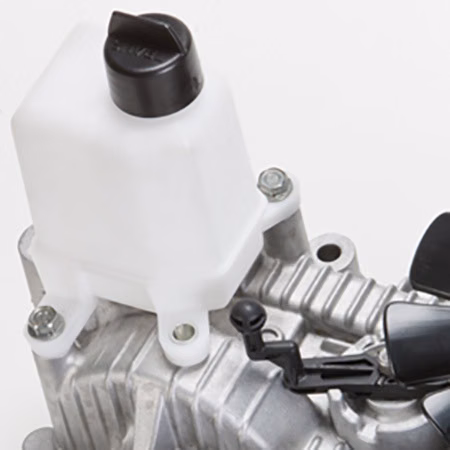

Dual hydros
Tuff Torq® TZT7-U with 1-in (2.5-cm) axles
Forward speed
0-8 mph 0-12.9 km/h
Reverse speed
0-4 mph 0-6.4 km/h
Speed and direction control
Twin premium levers
Control adjustment
2-height/9-fore-aft, 18 positions
Frame
Heavy-duty frame tubing
Primer/paint
E-coat/powder
Front caster tires
13x6.5-6
Front caster bearings
Sealed ball bearings
Drive tires
22x9.5-10
Maximum towing capacity
250 lb 113 kg
Seat suspension
Two springs and ComfortGlide
Lift system Type
Foot lift

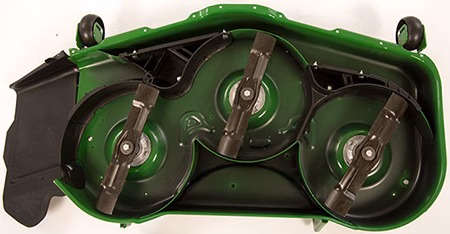

Mower deck Type
Side discharge
Mower drive system
V-belt
PTO Type
Electric, 105 lb-ft 142.4 Nm
Drive
V-belt
Weight With mower and fuel, 48A, 772 lb
351 kg
Weight With mower and fuel, 54A, 780 lb
355 kg
Weight With mower and fuel, 60A, 788 lb
358 kg
Slope operating limit
15 degrees, 10 degrees with an MCS
Material collection system
Power Flow rear bagger, 6.5 bu 230 L
