Description

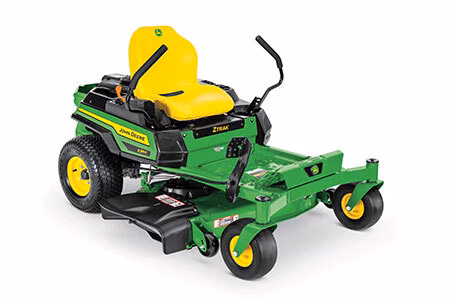

John Deere Z330M
Specifications
Manufacturer
John Deere
Model
Z330M
Year
2026
Category
Mowers
Subcategory
Zero Turn Mowers
Fore-aft adjustment
2.9 in 7 cm
Mower cut height
1.25-4.5 in 3-11 cm
Cut height increments
0.25 in 0.64 cm
Width of cut Accel Deep™ mower deck
48 in 122 cm
Width of cut Accel Deep™ mower deck One
54 in 137 cm
Mower deck material
10 gauge 0.135 in 3.4 mm
Wheelbase
49.4 in 1255 mm
Overall length
75.4 in 1915 mm
Width without mower
43.3 in 1100 mm
Width with mower 48A
62.6 in 1590 mm
Width with mower 54A
68.5 in 1740 mm
Width with mower (deflector raised for storage) 48A
52.8 in 1340 mm
Width with mower (deflector raised for storage) 54A
57.1 in 1450 mm
Height
44.2 in 1123 mm

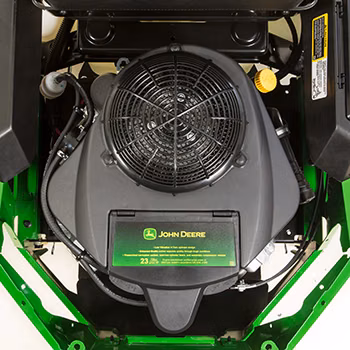

Power
23 hp 17.2 kW
Model number
FR691V
Displacement
44.3 cu in 726 cc
Cylinders
V-twin

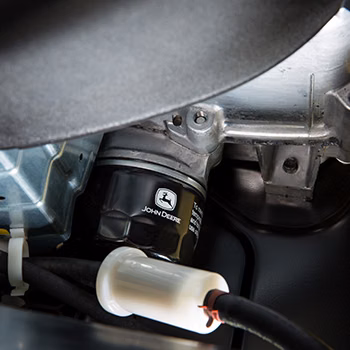

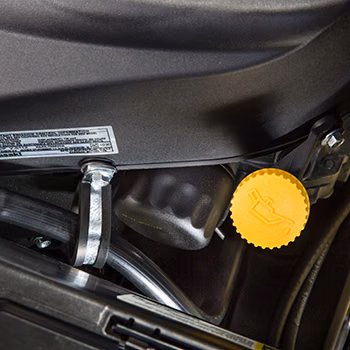

Lubrication
Full pressure with replaceable filter, capacity, 2.2 US qt 2.1 L
Type
Overhead valve
Battery
12 V 300 CCA
Choke/speed control
Separate levers

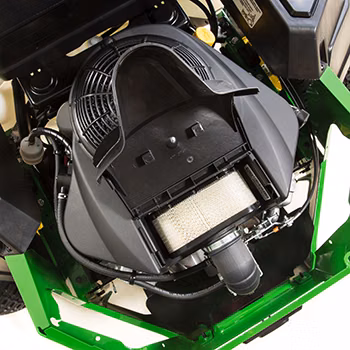

Cooling method
Air
Fuel tank capacity
3.0 US gal 11.4 L
Fuel gauge
Translucent tank

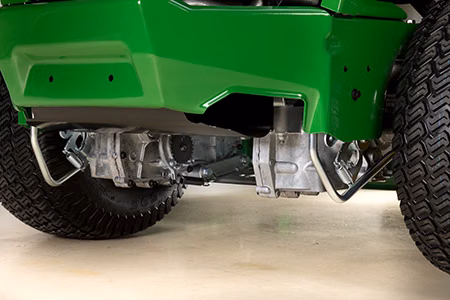

Dual hydros
Hydro-Gear EZT-D with 1-in (2.5-cm) axles
Forward speed
0-7 mph 0-11.3 km/h
Reverse speed
0-3.5 mph 0-5.6 km/h
Speed and direction control
Twin levers
Control adjustment
3 height, 11 positions

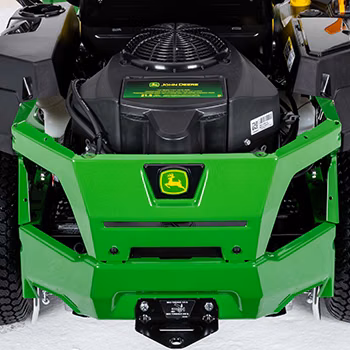

Frame
Heavy-duty 2.5-in x 2-in (6-cm x 5-cm) front, and 1.5-in x 2-in (4-cm x 5-cm) side tubing
Primer/paint
E-coat/powder
Front caster tires
11x6-5
Front caster bearings
Sealed ball bearings
Drive tires
20x10-8

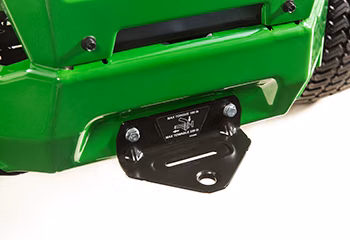

Maximum towing capacity
250 lb 113 kg
Seat suspension
Two springs
Lift system Type
Foot lift
Mower deck Type
Side discharge
Mower drive system
V-belt
PTO Type
Electric, 105 lb-ft 142 Nm
Drive
V-belt
Weight 48A
598 lb 272 kg
Weight 54A
609 lb 277 kg
Slope operating limit

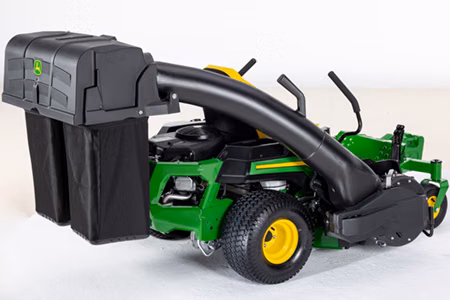

13 degrees; 10 degrees with Material Collection System
