Description

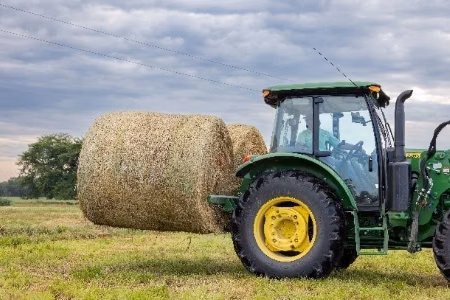

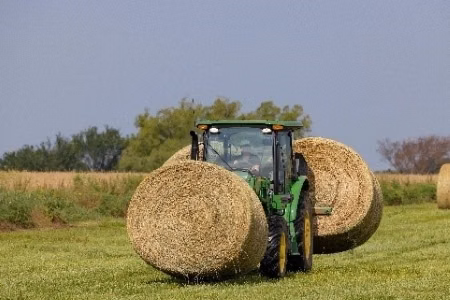

John Deere 5090EN
Specifications
Manufacturer
John Deere
Model
5090EN
Year
2026
Category
Tractors
Subcategory
Specialty Tractors
Engine type
4045HLV76
Engine family
NJDXL04.5315
Cylinders liners
Wet sleeved
Displacement 4 cylinders
4.5 L 276 cu in
Rated power At 2400 rpm
67.1 kW 90 hp
Rated PTO power (hp SAE) At 2400 rpm
56.0 kW 75 hp
Power boost At 2200 rpm
2 percent
Maximum engine power
68.6 kW 92 hp
Engine peak torque At 1600 rpm
347 Nm 255 lb-ft
Rear power take-off (PTO) Type
540/540E
Engine rpm (at rated PTO speeds) at 2400 rpm
540
Engine rpm (at rated PTO speeds) at 1716 rpm
540E
Engine rpm (at rated PTO speeds) at 2400 rpm One
1000
Description
John Deere PowerTech 4045 PWL
Rated speed
2400 rpm
Aspiration
Turbocharged and Aftercooled
Emission level
Final Tier 4
After treatment type
DOC/SCR
Transmission Type
PowrReverser™ Hi-Lo 24F/12R
Clutch; wet/dry
Wet
Hydraulic system Type
Open center
Pump rated output
85.1 L/min 22.5 gpm
Available flow at a single rear SCV
60.1 L/min 15.9 gpm
Number of rear selective control valves (SCVs)
Two
Joystick SCV control
Mechanical
Hitch draft control load sense type
Mechanical
Remote control valves available
Two
Hitch category (SAE designation)
Category 2; convertible to 1
Maximum lift capacity behind lift points
Standard: 2100 kg 4600 lb
Sensing type
Top link
Drawbar category
Category 2
Maximum vertical load Road/field use (250-mm extended)
1450 kg 3197 lb
Maximum vertical load Field use (350-mm extended):
1200 kg 2646 lb
Maximum vertical load Field use (400-mm extended):
1200 kg
PTO actuation
Electrohydraulic
Rear axle Type
Flange
Final drive type
Inboard planetary
Differential controls
Mechanical (pedal)
Brakes, type and control
Hydraulic wet disc
Front axle Type
Mechanical Front Wheel Drive (MFWD)
Tires Rear MFWD
18.4-30 R1 Bias
Rollover protective structure, OOS
Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor
Display
Automotive-style light-emitting diode (LED) instrument cluster
Inner cab volume
78 dBA
Approximate shipping weight Open
3300 kg 7275 lb
Approximate shipping weight Cab OOS
3700 kg 8150 lb
Diesel exhaust fluid (DEF) tank
12.0 L 3.17 US gal
Telematic
JDLink™
Fuel tank OOS
94.6 L 25 US gal
Fuel tank Cab
114 L/min 30 US gal
Number of Rear Selective Control Valves (SCVs)
Three
Number of Mid Selective Control Valves (SCVs)
Up to Three
Remote Control Valves Available
Three
Rear Power Take-off (PTO) Type
540/1000
Seat Standard
Mechanical
Seat Optional for Cab
Air Ride
Instructional seat optional for
Standard cab
Instructional seat Included with
Premium cab
Battery Options
12 V
Working lights
Halogen
Type of bulb in headlight (Halogen, Zenon, LED)
Halogen
Type of bulb in beacon (Halogen, Zenon, LED) Kit
Halogen
Wheel tread range MFWD front:
1340-1904 mm 52.8-75.0 in
Turning radius with brakes MFWD
4.36 m 14.3 ft
Turning radius without brakes MFWD
3.54 m 11.6 ft
Alternator size OOS
90 amp
Alternator size Cab:
120 amp
Wheelbase
2350 mm 92.5 in
Overall length
4042 mm 159.13 in
