Description
John Deere 5105MH
Specifications
Manufacturer
John Deere
Model
5105MH
Year
2026
Category
Tractors
Subcategory
Tractors
Description
John Deere PowerTech™ 4045 EWL
Engine type
4045HLV82
Engine family
NJDXL04.5317
Rated speed
2200 rpm
Aspiration
Turbocharged/Air-to-Air Aftercooled
Cylinders liners
Wet sleeved
Emission level
Final Tier 4
After treatment type
DOC/SCR
Displacement
4 cylinders: 4.5 L,276 cu in
Rated power
At 2200 rpm: 77.4 kW,105 hp
Rated PTO power (hp SAE)
At 2100 rpm: 66.2 kW,90 hp

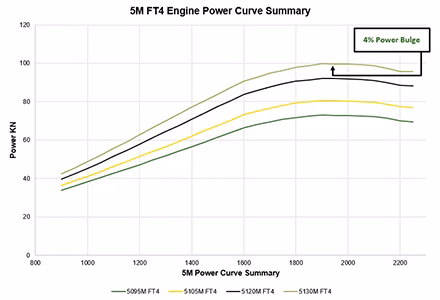

Power boost
At 1900 rpm: 4 percent
Maximum engine power
80.6 kW,108.0 hp
Engine peak torque
At 1600 rpm: 437 Nm,322 lb-ft
PTO torque rise
At 1600 rpm: 30 percent
Type
PowrReverser™ 16F/16R with creeper
Reverser
Left hand, electrohydraulic
Clutch; wet/dry
Wet
Creeper
PowrReverser™ 16F/16R with creeper
Engine rpm (at rated PTO speeds)
540 at 2100 rpm,540E at 1645 rpm,1000 at 2100 rpm
PTO actuation
Electrohydraulic
Hitch draft control load sense type
Mechanical or electrohydraulic
Remote control valves available
Standard: 2,Optional: 3
Hitch category (SAE designation)
Category 2; convertible to 1
Maximum lift capacity behind lift points
Standard: 2336 kg,5150 lb,Optional: 2699 kg,5950 lb
Sensing type
Lower Link
Rear axle differential lock
Electrohydraulic
Drawbar category
Category 2
Maximum vertical load
Road/field use (250-mm extended): 1450 kg 3197 lb,Field use (350-mm extended): 1200 kg 2646 lb,Field use (400-mm extended): 1200 kg 2646 lb
Type
Independent, 34.9 mm (1.375 in),Standard: 540/540 Economy (6 spline),,Optional: 540/540E (6 spline) and 1000 rpm(21 spline) reversible shaft
Type,One
High-Crop Flange Drop Axle
Final drive type
Inboard planetary
Differential controls
Electrohydraulic
Brakes, type and control
Hydraulic wet disc
Type,Two
Mechanical Front Wheel Drive (MFWD)
Rear
MFWD: 230/95R48 R1W Radial
Wheel tread range
MFWD: 1340-1904 mm,52.8-75.0 in
Turning radius with brakes
MFWD: 3.9 m,12.8 ft
Turning radius without brakes
MFWD: 4.7 m,15.4 ft
Rollover protective structure, OOS
Rigid - foldable - telescopic Foldable, 2-post Platform - flat/straddle Flat Gearshift location - console/floor Floor
Display
Automotive-style light-emitting diode (LED) instrument cluster
dB(A) rating
78 dBA
Approximate shipping weight, Open;Cab
OOS: 4520 kg,9947 lb,Cab:4710 kg,10364 lb
Fuel tank
Open: 140.8 L,37.2 US galCab: 140.8 L
Diesel exhaust fluid (DEF) tank
12.0 L,3.17 US gal
Country of manufacture
Pune, India
Date collected
6-Jan-2024
