Description

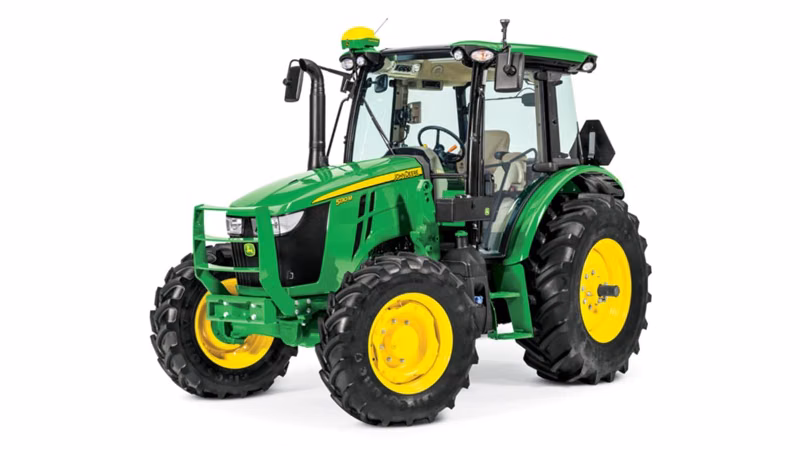

John Deere 5130M
Specifications
Manufacturer
John Deere
Model
5130M
Year
2026
Category
Tractors
Subcategory
Tractors
Description
John Deere PowerTech™ 4045 EWL
Engine type
4045HLV82
Engine family
NJDXL04.5317
Rated speed
2200 rpm
Aspiration
Turbocharged/air-to-air aftercooled
Cylinders liners
Wet sleeved
Emission level
Final Tier 4

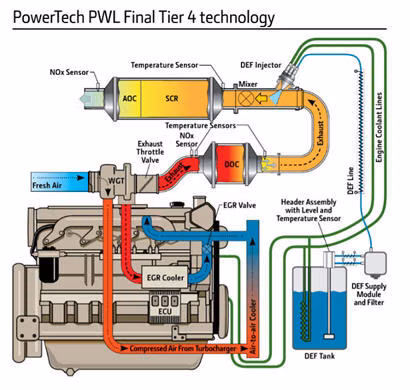

After treatment type
DOC/SCR
Displacement
4 cylinder: 4.5 L 276 cu in
Rated power
At 2200 rpm: 95.8 kW 130 hp
Rated PTO power (hp SAE)
At 2100 rpm: 84.5 kW 115 hp

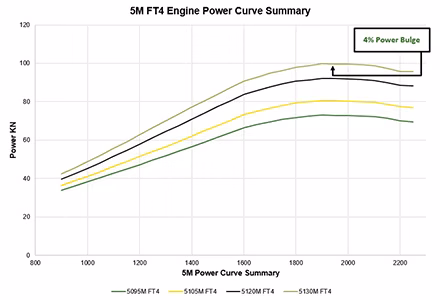

Power boost
At 1900 rpm: 4 percent
Maximum engine power
99.9 kW 133.9 hp
Engine peak torque
At 1600 rpm: 541 Nm 399 lb-ft
PTO torque rise
At 1600 rpm: 30 percent
Type
Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper
Reverser
Left hand, electrohydraulic
Clutch; wet/dry
Wet
Creeper
Powr8™ 32F/16R with creeper
Hitch draft control load sense type
Electrohydraulic
Hitch category (SAE designation)
Category 2; convertible to 1
Maximum lift capacity behind lift points
Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb
Sensing type
Lower link
Rear axle differential lock
Electrohydraulic
Drawbar category
Category 2
Maximum vertical load
Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb
Type,One
Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft
Engine rpm (at rated PTO speeds)
540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm
PTO actuation
Electrohydraulic
Category
Category 2
Standard lift capacity
1931 kg 4257 lb
Front power take-off (PTO)
1000 rpm (21 spline) 34.9 mm (1.375 in)
PTO speed
1000 at 2200 rpm
Type,Two
Standard: Flange Optional: Rack-and-pinion (Bar)
Final drive type
Inboard planetary
Differential controls
Electrohydraulic
Brakes, type and control
Hydraulic wet disc
Type, Three
Mechanical Front Wheel Drive (MFWD)

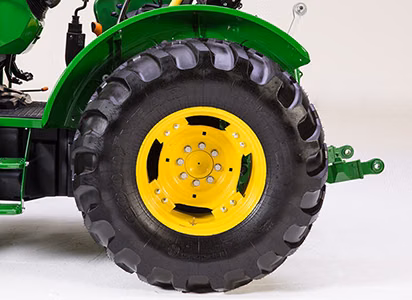

Rear
MFWD: 18.4R30 (460/85R30) R1W Radial
Wheel tread range
MFWD: front: 1299-1997 mm 51.1-78.6 in rear: 1350-2286 mm 53.1-90 in
Turning radius with brakes
MFWD: 3.85 m 12.6 ft
Turning radius without brakes
MFWD: 4.0 m 13.1 ft
Seat
Standard: Mechanical suspension Optional: air ride or premium air ride
Display
Digital Dash Display with three liquid crystal displays (LCDs)
dB(A) rating
78 dBA
Base machine weight
3964 kg (8,740 lb)
Fuel tank
165.4 L 43.7 US gal
Diesel exhaust fluid (DEF) tank
12.0 L 3.17 US gal
Guidance
Optional: AutoTrac™ with AutoTrac Basic
Country of manufacture
Pune, India
Date collected
6-Jan-2024
